Запчасти Case IH 1370 (376) - G33769 REMOTE HYDRAULIC CYLINDER, 4 INCH X 8 INCH CYLINDER, GLAND WITHOUT CENTER BEARING (09) - CHASSIS/ATTACHMENTS

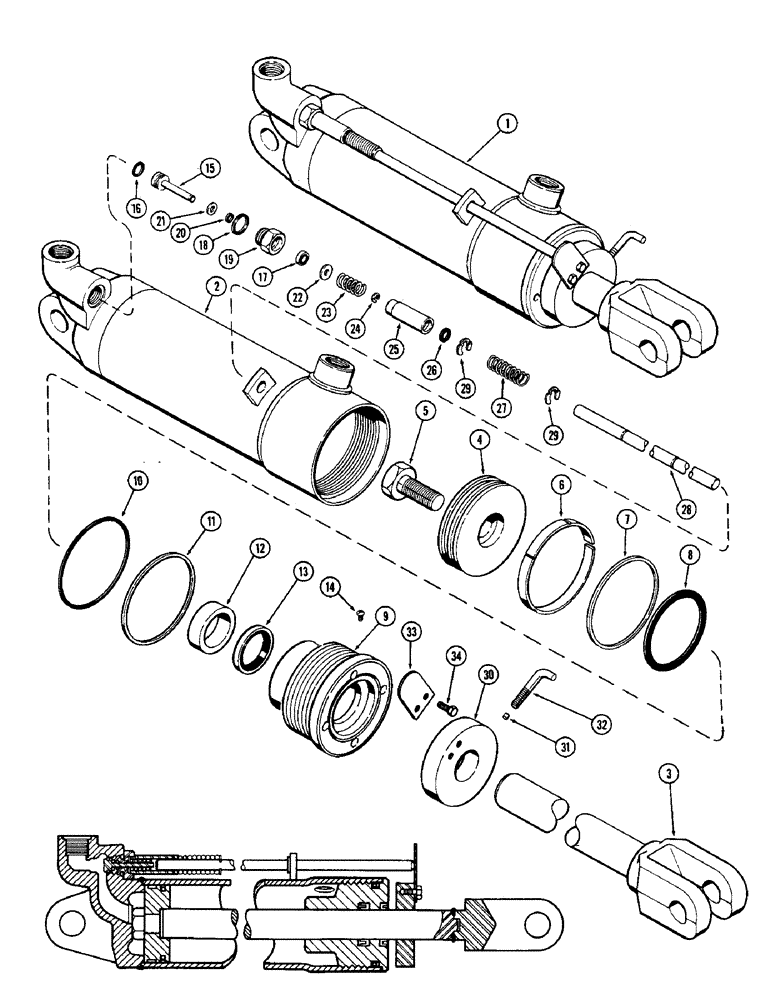

Схема запчастей Case IH 1370 - (376) - G33769 REMOTE HYDRAULIC CYLINDER, 4 INCH X 8 INCH CYLINDER, GLAND WITHOUT CENTER BEARING (09) - CHASSIS/ATTACHMENTS
15
30
27
32
6
1
11
12
26
34
16
33
22
28
23
29
10
29
2
17
20
19
3
21
5
13
24
25
14
18
4
9
31
7
8

Артикул

Название

Примечание

Количество

G33769

CYLINDER

ASSEMBLY - hydraulic, Includes: Ref. 2 - 34

1шт.

2

G31942

HYD TUBE,15.15" L

TUBE - cylinder

1шт.

3

G33772

ROD

- piston

1шт.

4

G33774

PISTON

- cylinder

1шт.

5

328-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

6

G100448

RING,101.6mm OD, Ext

- wear, piston (Nylon) (Replaces G31927)

1шт.

7

G31928

RING

- seal, piston (Teflon)

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- (3-1/2 x 3-3/4 x 1/8")

1шт.

9

G34053

SEAL

GLAND ASSEMBLY - packing (Service) (Order G34773), Includes: Ref. 10 - 13

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- (4 x 4-1/4 x 1/8")

1шт.

Part of Cylinder Repair Kit P/N G31946.

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Cylinder Repair Kit P/N G31946.

1шт.

12

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of Cylinder Repair Kit P/N G31946.

1шт.

13

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod (1-1/2 x 2 x 5/16")

1шт.

Part of Cylinder Repair Kit P/N G31946.

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - (#8-32 x 1/4" rd. hd.self-tapping)

1шт.

15

G31943

PLUNGER

- valve

1шт.

16

G32070

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

- (27/64 x 5/8 x 3/32")

1шт.

Part of Cylinder Repair Kit P/N G31946.

1шт.

17

G31932

WIPER SEAL

SEAL - wiper (3/16 x 1/2 x 1/8")

1шт.

Part of Cylinder Repair Kit P/N G31946.

1шт.

19

G31933

GLAND

ASSEMBLY - valve, Includes: Ref. 20 and 21

1шт.

20

G31935

O-RING,0.174" ID x 0.377" OD

- (11/64 x 3/8 x 7/64")

1шт.

Part of Cylinder Repair Kit P/N G31946.

1шт.

21

G31948

WASHER

- (13/64 x 13/32 x 1/16")

1шт.

22

G31929

WASHER

- spring backing (7/32 x 5/8 x 1/16")

1шт.

23

G31980

SPRING

- plunger return (1" long)

1шт.

24

49485

SNAP RING,#X18, .122" Dia, E-Type

Ring, Retaining, #X18, .122" Dia, E-Type

1шт.

25

G32427

SLEEVE

- protector

1шт.

26

A8613

O-RING,0.426" ID x 0.566" OD

- (7/16 x 9/16 x 1/16")

1шт.

Part of Cylinder Repair Kit P/N G31946.

1шт.

27

G31934

SPRING

- rod return (2-5/16" long)

1шт.

28

G32428

ROD

- push

1шт.

29

G32429

RING

- retaining, Y type

2шт.

30

G32074

COLLAR

- stop (Order G34977, G34979 and G34980)

1шт.

31

G32076

PLUG

- locking

1шт.

32

G32077

BOLT

- hook

1шт.

33

G32075

PLATE

- stop

1шт.

34

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

G31946

KIT

cylinder, repair, Includes: Ref.10 - 13, 16 - 18, 20 and 26

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (1/2 x 21/32 x 3/32")

1шт.

Part of Cylinder Repair Kit P/N G31946.

1шт.
