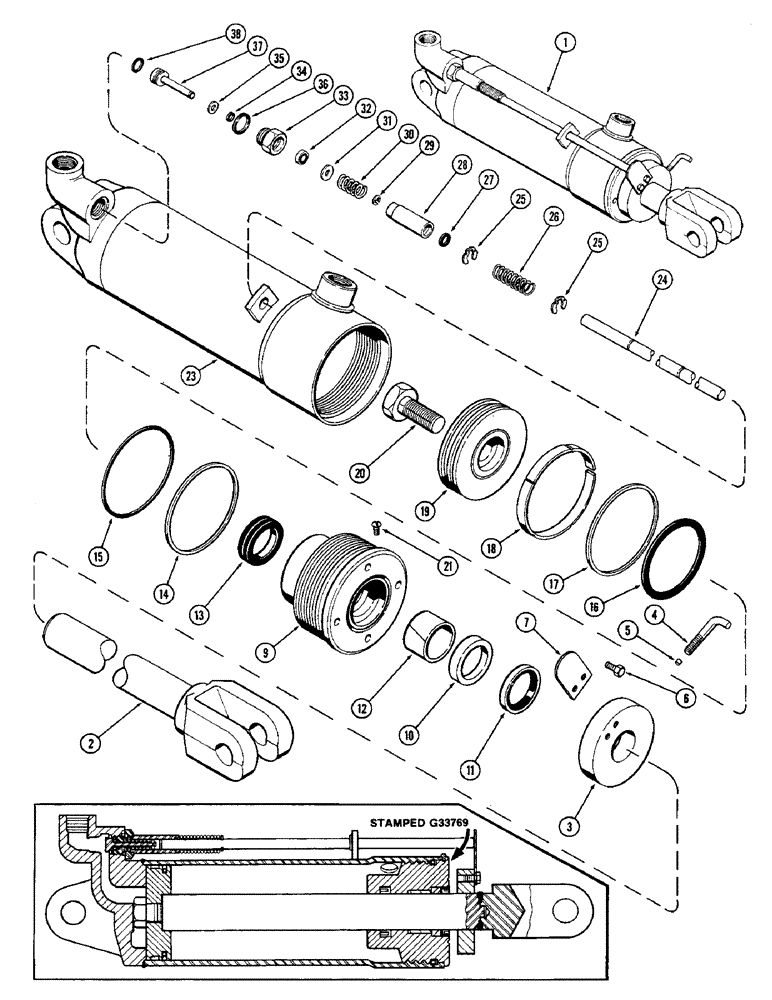

Запчасти Case IH 1370 (374) - G33769 REMOTE HYDRAULIC CYLINDER, 4 INCH X 8 INCH CYLINDER, GLAND WITH CENTER BEARING (09) - CHASSIS/ATTACHMENTS

1

G33769

CYLINDER

ASSEMBLY - (Cyl. part no. stamped on gland), Includes: Ref. 2 - 38

1шт.

2

G33772

ROD

- piston

1шт.

3

G34980

COLLAR

- stop (w/3/8" N.C. tapped hole)

1шт.

3

G32074

COLLAR

- stop (w/1/4" N.C. tapped hole) (Order G34977, G34979 and G34980)

1шт.

4

G34977

BOLT

- hook (3/8" N.C.)

1шт.

4

G32077

BOLT

- hook (1/4" N.C.)

1шт.

5

G34979

PLUG

- locking (5/16" dia.)

1шт.

5

G32076

PLUG

- locking (3/16" dia.)

1шт.

6

187-1515

SELF-TAP SCREW,1/4" - 20 x 3/4"

SCREW - (1/4 x 1/2" N.C. self-tapping)

2шт.

7

G32075

PLATE

- stop

1шт.

G34773

GLAND

ASSEMBLY - (Hand stamp cyl. part no. for identification), Includes: Ref. 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

GLAND

1шт.

10

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

11

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod (1-1/2 x 2 x 5/16")

1шт.

Part of Cylinder Repair Kit P/N G31946.

1шт.

12

G34302

BEARING

- center

1шт.

Part of Cylinder Repair Kit P/N G31946.

1шт.

13

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of Cylinder Repair Kit P/N G31946.

1шт.

14

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Cylinder Repair Kit P/N G31946.

1шт.

15

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- (4 x 4-1/4 x 1/8")

1шт.

Part of Cylinder Repair Kit P/N G31946.

1шт.

16

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of Cylinder Repair Kit P/N G31946.

1шт.

17

G31928

RING

- seal, piston (Teflon)

1шт.

18

G100448

RING,101.6mm OD, Ext

- wear, piston (Nylon) (Replaces G31927)

1шт.

19

G33774

PISTON

- cylinder

1шт.

20

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

21

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - (#8-32 x 1/4" rd. hd. slotted self-tapping)

1шт.

23

G31942

HYD TUBE,15.15" L

TUBE - cylinder

1шт.

24

G32428

ROD

- push

1шт.

25

G32429

RING

- retaining, Y type

2шт.

26

G31934

SPRING

- rod return (2-5/16" long)

1шт.

27

A8613

O-RING,0.426" ID x 0.566" OD

- (7/16 x 9/16 x 1/16")

1шт.

Part of Cylinder Repair Kit P/N G31946.

1шт.

28

G32427

SLEEVE

- protector

1шт.

29

49485

SNAP RING,#X18, .122" Dia, E-Type

Ring, Retaining, #X18, .122" Dia, E-Type

1шт.

30

G31980

SPRING

- plunger return (1" long)

1шт.

31

G31929

WASHER

- spring backing (7/32 x 5/8 x 1/16")

1шт.

32

G31932

WIPER SEAL

SEAL - wiper (3/16 x 1/2 x 1/8")

1шт.

Part of Cylinder Repair Kit P/N G31946.

1шт.

33

G31933

GLAND

ASSEMBLY - valve assy., Includes: Ref. 34 - 38

1шт.

34

G31935

O-RING,0.174" ID x 0.377" OD

- (11/64 x 3/8 x 7/64")

1шт.

Part of Cylinder Repair Kit P/N G31946.

1шт.

35

G31948

WASHER

- (13/64 x 13/32 x 1/16")

1шт.

37

G31943

PLUNGER

- valve

1шт.

38

G32070

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

- (27/64 x 5/8 x 3/32")

1шт.

G31946

KIT

cylinder, repair, Includes: Ref. 11 - 18, 27, 32, 34, 36 and 38

1шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (1/2 x 21/32 x 3/32")

1шт.
