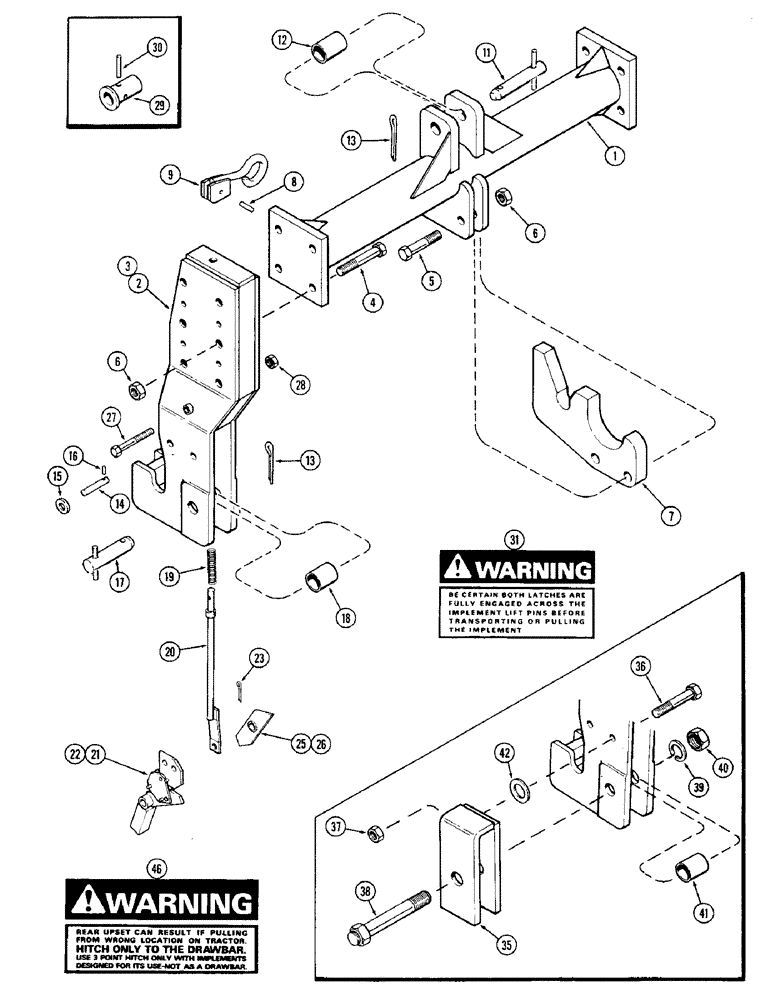

Запчасти Case IH 1370 (372) - QUICK HITCH COUPLER (09) - CHASSIS/ATTACHMENTS

A66281

NO LONGER SERVICED

ATTACHMENT - hitch coupler (Machinery item), Includes: Ref. 1 - 31

1шт.

1

NSS

NOT SOLD SEPARAT

HITCH - upper arm tube

1шт.

2

A44595

HITCH ASSY

HITCH - lower arm bracket (L.H.)

1шт.

3

A44594

HITCH ASSY

HITCH - lower arm bracket (R.H.)

1шт.

4

113-736

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- (3/4 x 4-1/4" N.C. hex.)

8шт.

5

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

6

129-108

NUT,3/4"-10, G5

10шт.

7

A44600

PLATE

LUG - upper arm hitch

1шт.

8

138-2055

PIN,3/16" x 1 1/2", Coiled

2шт.

9

A45456

HANDLE

- hitch release (Replaces A44472)

2шт.

11

A45463

PIN

ASSEMBLY - upper hitch (Replaces A44599)

1шт.

12

A44474

SLEEVE

- upper draft arm pin

1шт.

13

T50113

PIN

CLINCH PIN - hitch pin

3шт.

14

A45459

PIN

- trip ratchet lever pin (Replaces A44473)

2шт.

15

195-41

WASHER,5/8"

2шт.

16

138-2067

PIN,3/16" x 1", Coiled

2шт.

17

A45462

PIN

- draft arm, lower (Replaces A43540)

2шт.

18

A43542

SLEEVE

- coupler arm (For Cat. III implement)

2шт.

19

A45461

SPRING

- release rod (Replaces A44476)

2шт.

20

A45086

ROD

- handle to tripping device (w/release handle turned inward)

2шт.

20

A44598

ROD

- handle to tripping device (w/release handle, Serial Range: turned-rear)

2шт.

21

A45019

LEVER

- lock (R.H.) (Replaces A44596)

1шт.

22

A45020

LEVER

- lock (L.H.) (Replaces A44597)

1шт.

23

132-93

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

25

A44470

LEVER

- lower trip ratchet (R.H.)

1шт.

26

A44471

LEVER

- lower trip ratchet (L.H.)

1шт.

27

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

28

131-165

NUT,1/2"-13, GA

NUT - lock (1/2" N.C. Gripco Crownlock)

2шт.

29

T32995

ADAPTER

- hitch coupler (For Cat. II implement)

2шт.

30

138-188

LOCK PIN,7/16" x 1 1/2", Slotted

Pin, 7/16" x 1 1/2", Slotted

2шт.

31

321-3339

DECAL

- warning, implement lift pins

1шт.

35

A66284

BRACKET

- hitch coupler adapter

2шт.

36

113-77

BOLT - (3/4 x 4-1/4" N.C.) (Plated)

2шт.

37

131-385

LOCK NUT,3/4"-10, GA

NUT - lock (3/4" N.C. Gripco Toplock)

2шт.

38

A66285

BOLT

- adapter attaching

2шт.

39

192-33

LOCK WASHER,1 1/8"

1 1/8"

2шт.

40

129-131

NUT,1 1/8"-12, G5

- (1-1/8" N.F. hex.)

2шт.

41

A43542

SLEEVE

- coupler arm (Used with A66281 hitch to prevent coupler arm collapse)

2шт.

42

195-109

WASHER,3/4"

- flat (13/16 x 2 x 5/32")

2шт.

46

321-3845

DECAL

- warning, hitch instruction

1шт.
