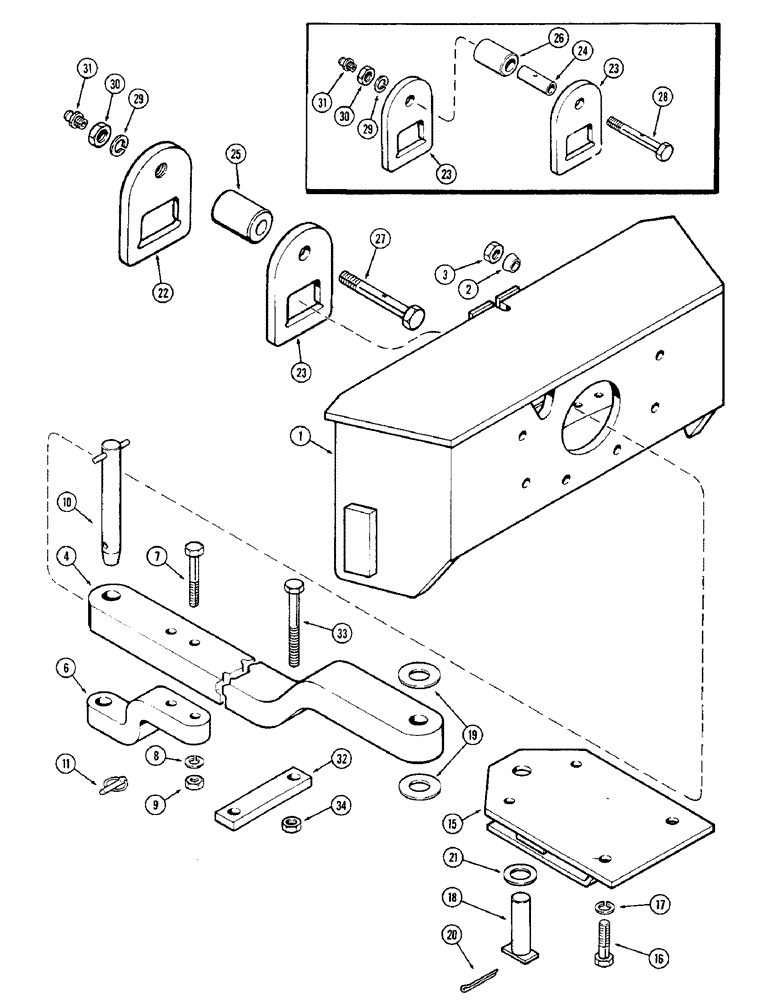

Запчасти Case IH 1370 (368) - DRAWBAR, WITHOUT HITCH (09) - CHASSIS/ATTACHMENTS

1

A143020

SUPPORT

ASSEMBLY - drawbar (Replaces A64164)

1шт.

2

A64167

PIN

DOWEL - support mounting

6шт.

3

129-563

NUT,5/8"-11, G8

- 5/8" N.C. hex.

6шт.

4

A65753

SWINGING DRAWBAR

DRAWBAR

1шт.

A61836

KIT

- drawbar yoke (Machinery attachment), Includes: Ref. 6 - 9

1шт.

6

A61557

DRAWBAR CLAMP

STRAP - hammer

1шт.

7

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

9

25-1012

NUT,3/4"-10, G5

2шт.

10

A65760

PIN

ASSEMBLY - drawbar, Includes: Ref. 11

1шт.

11

A61560

LOCK PIN

PIN - klik

1шт.

15

A139416

BRACKET

- drawbar pivot (Used w/roll pin) (1st used P.I.N. 8797501)

1шт.

15

A63554

BRACKET

- drawbar pivot (Used w/cotter pin) (Order A139416 bracket and 138-2029 roll pin), Serial Range: -8797501

1шт.

16

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- 3/4 x 2-1/2" N.C. hex.

4шт.

17

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

18

A65748

PIN

- drawbar pivot

1шт.

19

A63595

WASHER

- anti-rattle

2шт.

20

138-2029

PIN,7.92mm OD x 63.5mm L, Coiled

(Used w/A139416 bracket) 5/16" x 2 1/2", Coiled

1шт.

20

132-319

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), (Used w/A65259 bracket) 1/4" x 3"

1шт.

21

195-2120

WASHER,1.28" ID x 2" OD x 0.24" Thk

- 1-1/4 x 2 x 1/4"

1шт.

22

A135433

PLATE

BRACKET - drawbar hanger (Threaded) (1st used P.I.N. 8800275)

1шт.

23

A65754

PLATE

BRACKET - drawbar hanger (1st used P.I.N. 8800275 and after, 2, Serial Range: -8800275

1шт.

24

A63597

BUSHING

SLEEVE - roller (Order 1-A135433, 1-A135434 and 1-A135435), Serial Range: -8800275

1шт.

25

A135435

ROLLER

- drawbar (1st used P.I.N. 8800275)

1шт.

26

A63598

ROLLER

- drawbar (Order 1-A135433, 1-A135434 and 1-A135435), Serial Range: -8800275

1шт.

27

A135434

BOLT

- roller, drilled (1st used P.I.N. 8800275) (2" thread length)

1шт.

28

A63599

BOLT

- roller, drilled (Order A135434) (1-1/2" thread length), Serial Range: -8800275

1шт.

29

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

30

25-1016

NUT,1"-8, G5

1шт.

31

219-22

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T., straight

1шт.

32

A63600

STRAP

- drawbar clamp

1шт.

33

13-1092

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 5

- 5/8 x 5-3/4" N.C. hex.

2шт.

34

25-1010

NUT,5/8"-11, G5

2шт.
