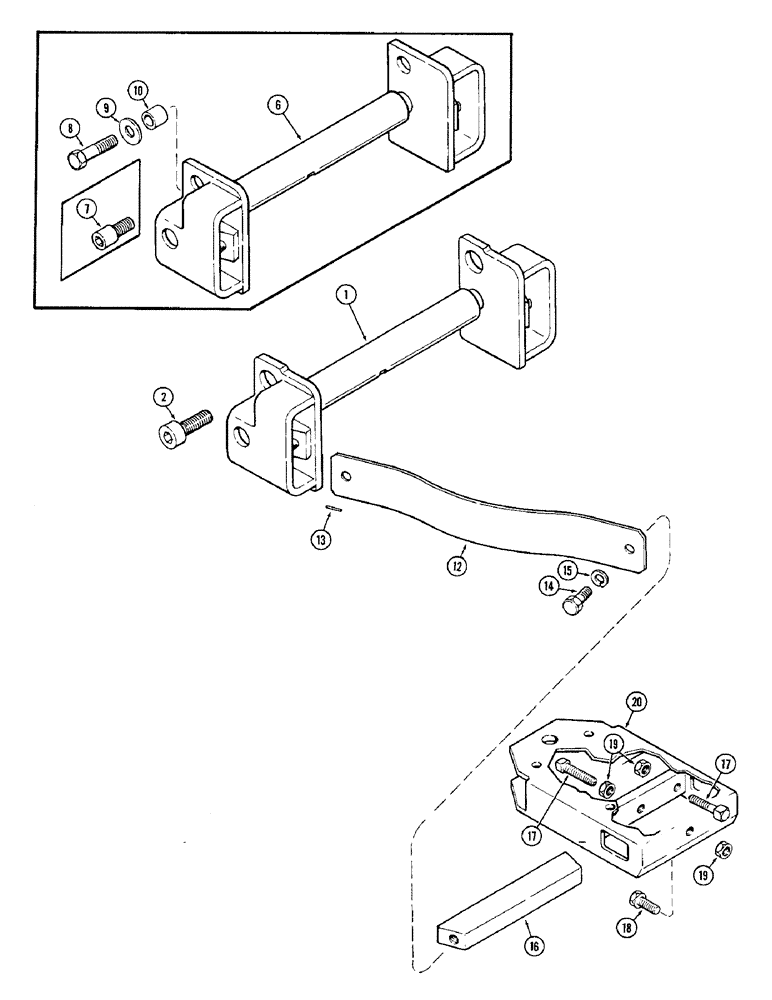

Запчасти Case IH 1370 (356) - D.O.M. SYSTEM, CROSSBAR WITH 1-1/8 INCH MOUNTING HOLES, FIRST USED TRANSMISSION SERIAL NO. 2476547 (09) - CHASSIS/ATTACHMENTS

1

A139889

BRACE

CROSSBAR - draft arm mounting

1шт.

2

A143603

BOLT,1-1/8" - 7 x 3-1/4", Gr 8

- socket hd. (1-1/8 x 4-5/16" N.C. R.H. thrd.) (Replaces A139894)

2шт.

2

A143604

BOLT,1-1/8" - 7 x 3-1/4", Gr 8

- socket hd. (1-1/8 x 4-5/16" N.C. L.H. thrd.) (Replaces A141157)

2шт.

6

A65254

CROSSBAR

- draft arm mounting, 1" holes, to transmission, Serial Range: -2476547

1шт.

7

A45395

BOLT

KIT - crossbar (1" x 3-1/2" N.C. socket hd.), 1" mounting holes, to transmission, Serial Range: -2476547

1шт.

8

113-819

BOLT

- (1 x 3-3/4" N.C. hex.) (Order A45395), crossbar with 1" mounting holes, to transmission, Serial Range: -2476547

2шт.

9

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- (1-1/16 x 2-1/2 x 11/64") (Order A45395), crossbar with 1" mounting holes, to transmission, Serial Range: -2476547

2шт.

10

A137279

SPACER

SLEEVE - bolt (1-17/32 lg.) (Order A45395), crossbar with 1" mounting holes, to transmission, Serial Range: -2476547

2шт.

12

A63488

SPRING

- wishbone

2шт.

13

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Wishbone spring to cross shaft 1/4" x 1 1/4", Slotted

2шт.

14

A63490

BOLT

- mounting, wishbone spring

2шт.

15

192-171

LOCK WASHER,1"

WASHER, LOCK, , Wishbone spring 1"

2шт.

16

A63489

BAR

- wishbone spring equalizer

1шт.

17

181-529

SET SCREW,Sq Hd, 3/4"-10 x 3"

SCREW - set (3/4 x 3" N.C., sq. hd. oval point) (Equalizer bar adjusting), wishbone spring

3шт.

18

113-796

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5, Full Thd

- 3/4 x 2-1/2" N.C. hex.) (Locks equalizer bar - center), wishbone spring

1шт.

19

25-1412

JAM NUT,Jam, 3/4"-10, G5

- hex. (3/4 N.C. jam) (Setscrew and locking bolts), wishbone spring

4шт.

20

REF

INSTRUCTION

BRACKET - drawbar pivot (See Figure 366), wishbone spring

1шт.
