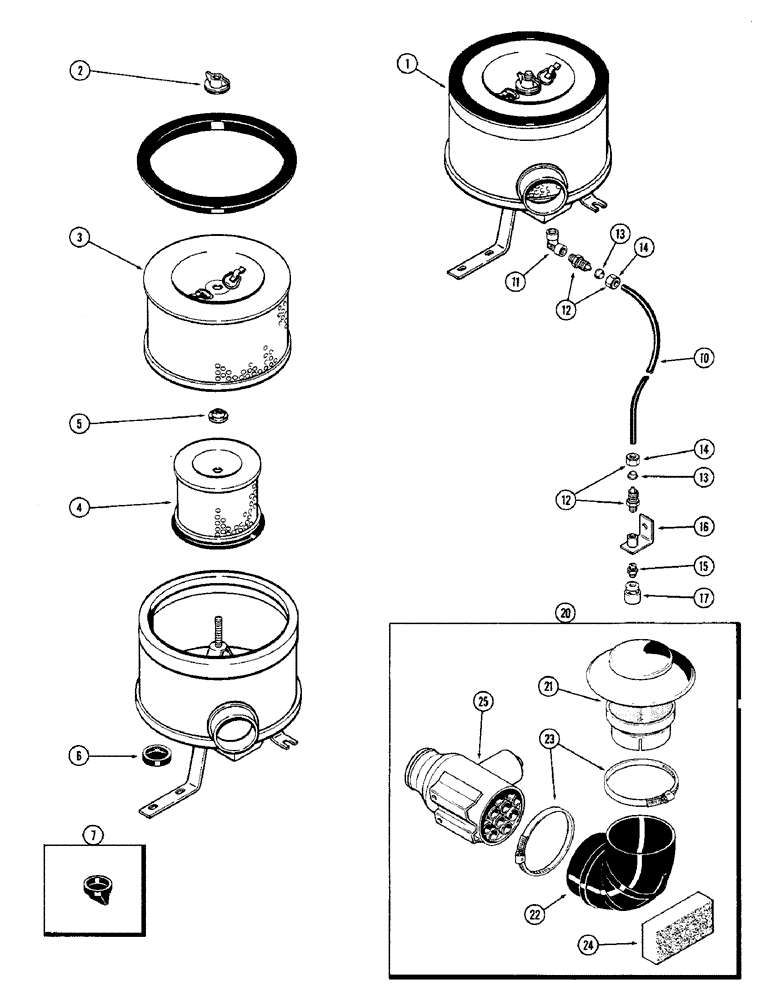

Запчасти Case IH 1370 (016) - AIR CLEANER, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A66299

CLEANER

AIR, Includes Ref. 2 - 7

1шт.

2

L35499

NUT

Primary element

1шт.

3

A44694

AIR FILTER

ELEMENT - primary, outer

1шт.

4

A44695

AIR FILTER

ELEMENT - secondary, inner

1шт.

5

A44188

SEAL

NUT - safety element

1шт.

6

A139795

PLUG

Opening (Replaces A44184)

1шт.

7

A44184

VALVE

Air cleaner vacator

1шт.

10

A61938

SPARE PART Air restrictor indicator (Nylon)

1шт.

11

221-374

ELBOW,90 Degree, 1/8" NPT

Pipe, air restrictor indicator

1шт.

12

222-5102

COUPLING, BREAK AWAY,7/16"-24 x 1/8" NPT

ASSEMBLY - 1/4" tube, air restrictor indicator, Includes Ref. 13 and 14

2шт.

13

222-5185

SLEEVE,1/4" Tube

Air restrictor indicator

1шт.

14

222-5180

TUBE NUT,7/16"-24

For 1/4" tube, air restrictor indicator

1шт.

15

217-194

FITTING,1/8" - 27 Male NPTF x 1/8" - 27 Male NPTF

NIPPLE - 1/8 x 1/8" hex, air restrictor indicator

1шт.

16

A61940

BRACKET

Air restrictor indicator

1шт.

17

A66907

INDICATOR

Air restriction (Replaces A62574)

1шт.

20

A145780

PRE-SCREENER ATTACHMENT - air intake (Mach. item), Includes Ref. 21 - 24

1шт.

21

A145781

CAP

Pre-screener attachment

1шт.

22

S95313

ELBOW

Pre-screener to pre-cleaner, attachment

1шт.

23

214-280

HOSE CLAMP,#104, 6.12" - 7", Type F Worm

Elbow, 6-1/8" to 7" pre-screener attachment

2шт.

24

A145783

SEAL

SEAL, radiator baffle opening, pre-screener attachment

1шт.

25

REF

INSTRUCTION

PRE-CLEANER - (See Figure 012), attachment

1шт.
