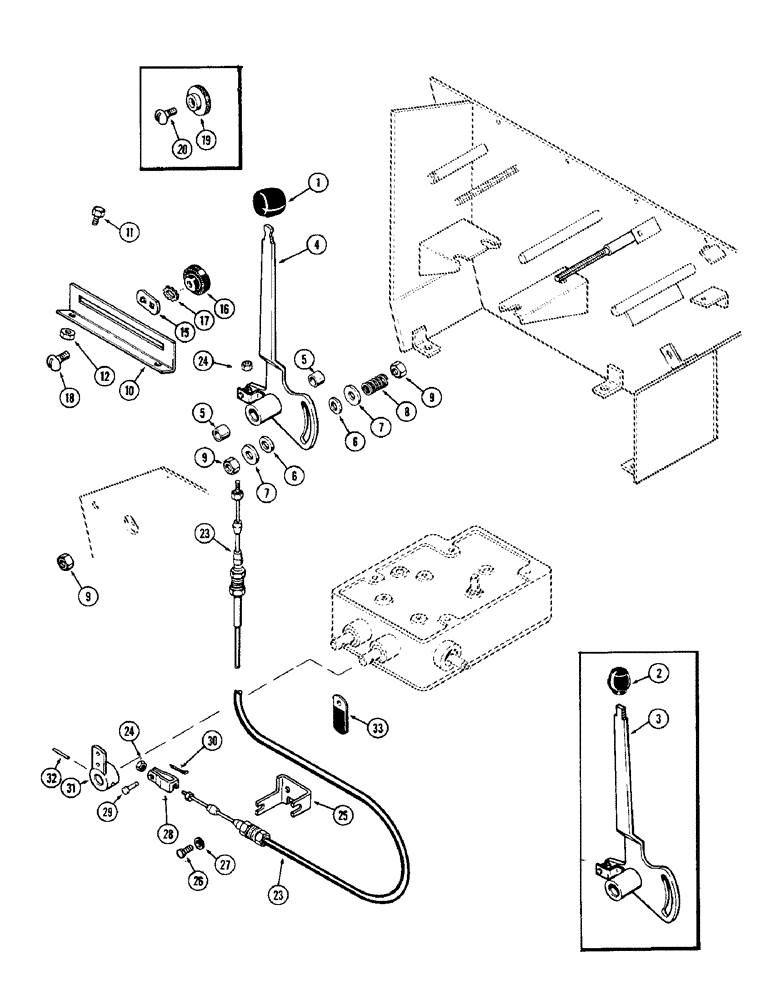

Запчасти Case IH 1370 (344) - D.O.M. CONTROLS (09) - CHASSIS/ATTACHMENTS

1

A137806

KNOB

- hand lever (Rubber)

1шт.

2

A65699

KNOB

- hand lever (Plastic) (Order A137806)

1шт.

3

A63033

LEVER

ASSEMBLY - D.O.M. (w/threaded top) (Order Ref. 1 and 4)

1шт.

4

A137820

LEVER

ASSEMBLY - D.O.M. (Replaces A63033), Includes: Ref. 5

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- hand lever

2шт.

6

A61069

DISC

- friction

2шт.

7

195-2172

WASHER,7/16" x 1 1/4" x .083"

- (7/16 x 1-1/4 x 5/64")

2шт.

8

A65583

SPRING

- friction disc

1шт.

9

131-1306

JAM NUT,Jam, 3/8"-16

NUT - lock, 3/8" N.C. hex. jam

2шт.

10

A59273

BRACKET

QUADRANT - hand lever

1шт.

11

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

12

131-113

SPRING NUT,J, Ret, 5/16"-18

Tinnerman J, Ret, 5/16"-18

2шт.

15

G15950

STOP

- quadrant, hand lever

2шт.

16

A143181

NUT

- (Plastic) Quadrant stop (1st used P.I.N. 8810817)

2шт.

17

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER - lock, 1/2" ext. Shakeproof (1st used P.I.N. 8810817)

2шт.

18

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, (1st used P.I.N. 8810817) Short NK, 3/8"-16 x 3/4", G5

2шт.

19

G15951

NUT

- (Steel) Quadrant stop (Order A134181), Serial Range: -8810817

2шт.

20

113-317

SCREW,Locking, 7/16"-14 x 1 1/4", G8

BOLT - 3/8 x 1" N.C. rd. hd. sq. nk., Serial Range: -8810817

2шт.

23

A63040

CABLE

- D.O.M. control

1шт.

24

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 Keps

2шт.

25

A65264

BRACKET

- anchor, control cable

1шт.

26

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

27

92-5

LOCK WASHER,5/16"

2шт.

28

A65265

YOKE

-, Serial Range: cable-lever

1шт.

29

141-1

CLEVIS PIN,3/16" x .580"

PIN - yoke

1шт.

30

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

31

A63037

LEVER

- operating, D.O.M. control linkage

1шт.

32

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

33

A37179

CLIP

- cable

1шт.
