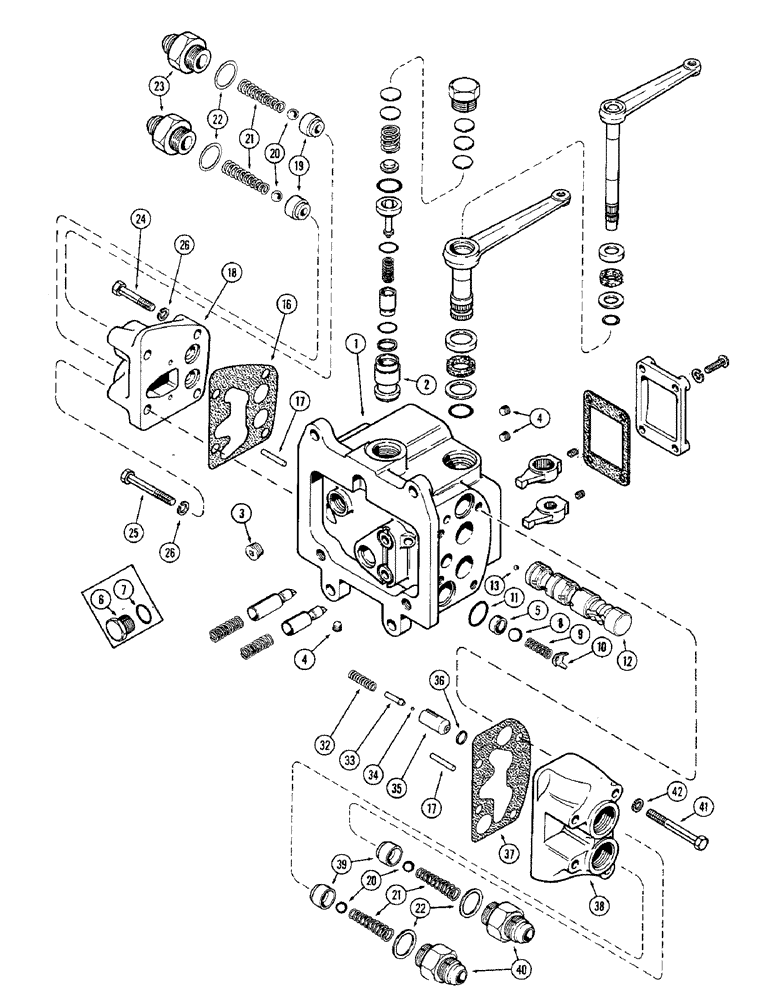

Запчасти Case IH 1370 (336) - A141383 REMOTE HYDRAULIC VALVE, LEFT HAND WITH RELIEF VALVE (08) - HYDRAULICS

A141383

VALVE

ASSEMBLY - L.H. variable remote (Replaces A139215, A66726 and A66467), Includes: Ref. 1 - 42 and Ref. 47 - 90 on Fig. 338

1шт.

1

A141403

VALVE BODY

BODY ASSEMBLY - hyd. valve (Replaces A66727), Includes: Ref. 2 - 5

1шт.

2

A57536

SLEEVE

- hyd. valve pilot relief

1шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

- pipe (3/8" hex. socket)

1шт.

4

221-849

PLUG,Hex Soc, 1/8"-27

- pipe (1/8" hex. socket)

3шт.

5

A139799

SEAT

- check, hyd. valve body ball (Replaces A57537)

4шт.

6

86512512

PLUG,7/8" - 14 ORB

ASSEMBLY - (7/8"-14 N.F.) (Early production only), Incl. Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- (5/8 x 3/4 x 3/32")

1шт.

8

211-15

BALL,5/8" Dia

- (.) 5/8" Dia

4шт.

9

A27452

SPRING

- check valve (1/2" O.D. x 1-1/8" free length)

4шт.

10

A27364

GUIDE

- spring, ball check

4шт.

11

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- (15/16 x 1-1/8 x 3/32")

4шт.

Part of Seal Kit P/N A43086.

1шт.

12

A66469

SPOOL

ASSEMBLY - hyd. valve, Includes: Ref. 13

2шт.

13

211-5

BALL,3/16" Dia

- (.) 3/16" Dia

1шт.

16

A143303

GASKET

- hyd. valve head

1шт.

Part of Seal Kit P/N A43086.

1шт.

17

A57559

SPOOL

- auxiliary

4шт.

18

A57564

VALVE

HEAD ASSEMBLY - hyd. valve, rear, Includes: Ref. 19

1шт.

19

NSS

NOT SOLD SEPARAT

SEAT - auxiliary valve head

2шт.

20

211-13

BALL,1/2" Dia

- return 1/2" Dia

4шт.

21

A66473

SPRING

- check, return ball

4шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- (3/4 x 59/64 x 1/8")

4шт.

Part of Seal Kit P/N A43086.

1шт.

23

A64708

FITTING

- outlet, rear, upper and lower

2шт.

24

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

25

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- (3/8 x 2-1/2" N.C. hex.)

2шт.

26

92-6

LOCK WASHER,3/8"

4шт.

32

A57396

SPRING

- relief (21/64" O.D. x 1-1/8" free length)

2шт.

33

A137594

GUIDE

- thermal valve ball (Replaces A62272)

2шт.

34

211-3

BALL,1/8" Dia

- (.) 1/8" Dia

2шт.

35

A137335

SEAT

- thermal valve (Replaces A62273)

2шт.

36

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- (3/8 x 9/16 x 3/32")

2шт.

Part of Seal Kit P/N A43086.

1шт.

37

A143304

GASKET

- hyd. valve head

1шт.

Part of Seal Kit P/N A43086.

1шт.

38

A57565

VALVE

HEAD ASSEMBLY - hyd. valve, front, Includes: Ref. 39

1шт.

39

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

40

A64708

FITTING

- outlet, front, top and bottom

2шт.

41

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- (3/8 x 2-3/4" N.C. hex.)

4шт.

42

92-6

LOCK WASHER,3/8"

4шт.

A43086

SEAL

KIT - seal, Includes: Ref. 11, 16, 22, 36 and 37, and parts in Figure 338

1шт.
