(326) - A141382 REMOTE HYDRAULIC VALVE, LEFT HAND WITHOUT RELIEF VALVE

Запчасти Case IH 1370 (326) - A141382 REMOTE HYDRAULIC VALVE, LEFT HAND WITHOUT RELIEF VALVE (08) - HYDRAULICS

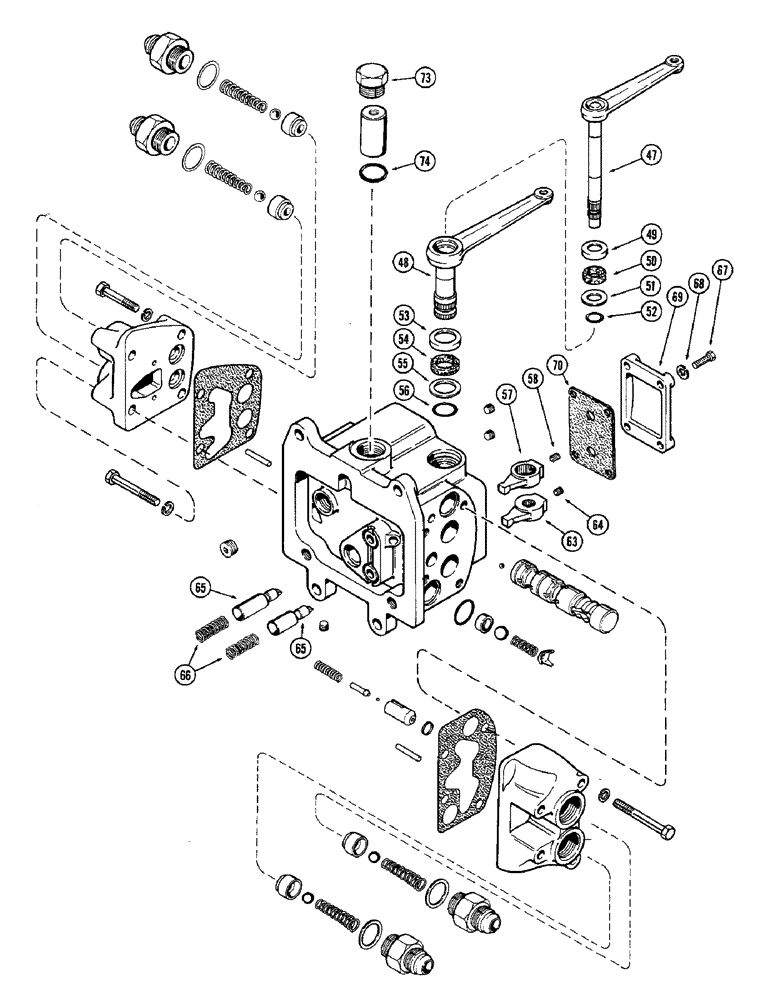

Схема запчастей Case IH 1370 - (326) - A141382 REMOTE HYDRAULIC VALVE, LEFT HAND WITHOUT RELIEF VALVE (08) - HYDRAULICS
73
69
51
74
53
54
66
57
64
50
47
65
68
49
65
67
52
70
56
48
58
63
55
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A141382

VALVE

ASSEMBLY - L.H. hydraulic (Cont'd from Figure 324), Includes: Ref. 47 - 74 and 1 - 42 on Fig. 324

1шт.

47

A57605

LEVER

- shifter shaft (Outer)

1шт.

48

A57604

LEVER

- shifter shaft (Inner)

1шт.

49

A30875

RETAINER

- felt washer (17/32" hole)

1шт.

Part of Seal Kit P/N A43086.

1шт.

50

A30853

WASHER

- felt (1/2 x 15/16 x 1/4")

1шт.

Part of Seal Kit P/N A43086.

1шт.

51

A27409

WASHER

- seal, spool (33/64 x 63/64 x 1/32")

1шт.

Part of Seal Kit P/N A43086.

1шт.

52

A64836

O-RING,0.487" ID x 0.693" OD

- outer handle (1/2 x 11/16 x 3/32")

1шт.

Part of Seal Kit P/N A43086.

1шт.

53

A30880

RETAINER

- felt washer (49/64" hole)

1шт.

Part of Seal Kit P/N A43086.

1шт.

54

A30879

WASHER

- felt (3/4 x 1-3/16 x 1/4")

1шт.

Part of Seal Kit P/N A43086.

1шт.

55

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - seal, spool (49/64 x 1-15/64 x 1/32")

1шт.

Part of Seal Kit P/N A43086.

1шт.

56

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- seal, shaft (3/4 x 15/16 x 3/32")

1шт.

Part of Seal Kit P/N A43086.

1шт.

57

A57547

ARM

ASSEMBLY - valve spool shifter lever, upper, Includes: Ref. 58

1шт.

58

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set (1/4 x 1/4" N.C. hex. socket hdless. cup pt.)

1шт.

63

A57546

ARM

ASSEMBLY - lower valve spool shift lever (big hole), Includes: Ref. 64

1шт.

64

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set (1/4 x 1/4" N.C. hex. socket hdless. cup pt.)

1шт.

65

A63765

PLUNGER

- hyd. valve spool (Inner and outer)

2шт.

66

A66472

SPRING

- spool plunger (9/16" O.D. x 1-21/32" free length)

2шт.

67

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

4шт.

68

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

69

A66435

CAP

- hyd. valve body

1шт.

70

A76374

GASKET

- valve body cap

1шт.

Part of Seal Kit P/N A43086.

1шт.

73

A34392

PLUG

- pilot relief valve

1шт.

74

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- (3/4 x 59/64 x 1/8")

1шт.

Part of Seal Kit P/N A43086.

1шт.

A43086

SEAL

KIT, Includes: Ref. 49 - 56, 70, 74 and parts in Figure 324

1шт.

Выбрано товаров: 34
