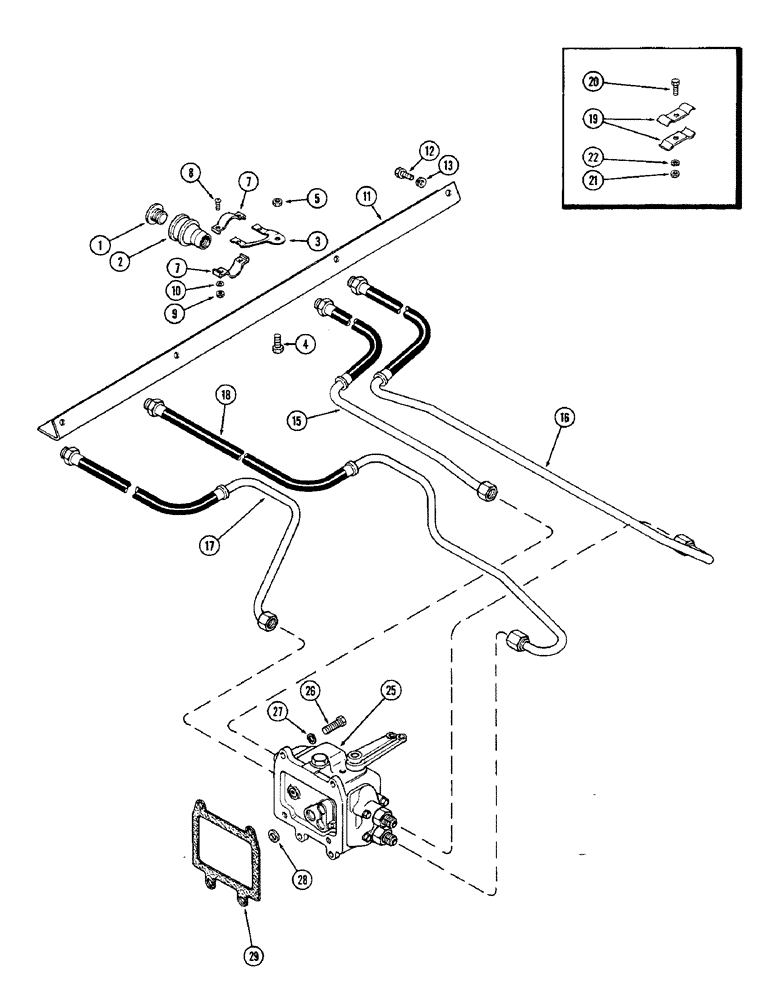

Запчасти Case IH 1370 (320) - LEFT HAND REMOTE HYDRAULIC TUBES AND COUPLINGS, STANDARD COUPLING, USED PRIOR TO P.I.N. 8770001 (08) - HYDRAULICS

1

A65044

PLUG

- dust, coupling socket (Black)

2шт.

1

A65045

PLUG

- dust, coupling socket (Yellow)

2шт.

2

A28542

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - remote hose (Repairs Figure 382) See Figure 304 for conversion kit to convert from std. to pressure coupling.

4шт.

3

A27360

BRACKET

- mounting, coupling

4шт.

4

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

5

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8" N.C. Gripco)

4шт.

7

A27423

CLAMP

- mounting, coupling

8шт.

8

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

- machine (#8-32 x 5/8" N.C. rd. hd.)

8шт.

9

129-6

NUT,#8-32

8шт.

10

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

8шт.

11

A63537

BRACKET

- mounting, remote coupling

1шт.

12

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

15

A65607

TUBE

- upper rear, Serial Range: valve-coupling

1шт.

16

A65605

TUBE

- upper front, Serial Range: valve-coupling

1шт.

17

A66329

TUBE

- lower rear, Serial Range: valve-coupling

1шт.

18

A66327

TUBE

- lower front, Serial Range: valve-coupling

1шт.

19

A63323

CLAMP

- remote tubes

4шт.

20

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" N.C.)

2шт.

22

92-5

LOCK WASHER,5/16"

2шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - remote hyd. control L.H. (See Figure 324)

1шт.

26

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N.C. hex.)

4шт.

27

92-8

LOCK WASHER,1/2"

4шт.

28

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

GASKET - nylon, valve port

1шт.

29

A34138

GASKET

- valve to trans. housing

1шт.
