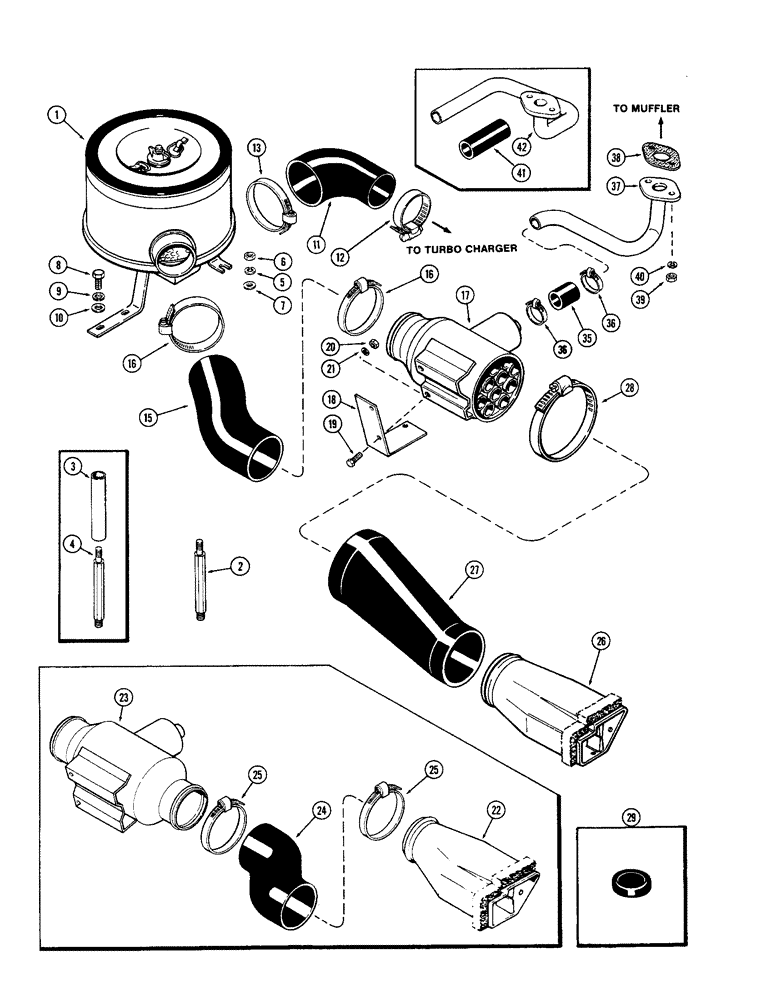

Запчасти Case IH 1370 (012) - AIR INDUCTION SYSTEM, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A66299

CLEANER

AIR, ASSEMBLY - (See Figure 016)

1шт.

2

A143235

JACK SCREW,1/2" - 13 x 0.12"

Jack, support elbow (Replaces A63747) (3/4" hex. body)

2шт.

3

A63747

SPACER

Support elbow (Used with A63748 screw)

2шт.

4

A63748

JACK SCREW,1/2" - 13 x 8.32"

Jack, support elbow (Replaced by A143235) (11/16" hex. body)

2шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

25-108

NUT,1/2"-13, G5

Hex

2шт.

7

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64")

2шт.

8

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

95-6

WASHER,3/8"

(7/16 x 1 x 5/64")

2шт.

11

A66300

HOSE

Outlet, air cleaner

1шт.

12

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

1шт.

13

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

15

A66302

HOSE

Pre-cleaner to air cleaner

1шт.

16

217-270

LOCK VALVE

CLAMP - hose, Serial Range: 4-5/16"-5-1/4"

2шт.

17

A137922

PRECLEANER

ASSEMBLY - (1st used P.I.N. 8777726) Some tractors may have been field modified to include these parts., Serial Range: -8777726

1шт.

18

A66208

BRACKET

Support, pre-cleaner

1шт.

19

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

20

25-106

NUT,3/8"-16, G5

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

REF

INSTRUCTION

TUBE - intake (See Figure 014)

1шт.

23

A66301

PRECLEANER

ASSEMBLY, Serial Range: -8777726

1шт.

24

A66207

HOSE

Pre-cleaner, Serial Range: -8777726

1шт.

25

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.

A139429

TUBE

KIT - field installed air cleaner, Includes Ref. 26 - 29

1шт.

26

A139300

TUBE

Intake (Attach with 345-61 sealant - not illustrated)

1шт.

27

A137974

HOSE

FUNNEL - pre-cleaner (1st used P.I.N. 8777726) Some tractors may have been field modified to include these parts., Serial Range: -8777726

1шт.

28

214-282

HOSE CLAMP,#112, 6.62" - 7.5", Type F Worm

1шт.

29

A139795

PLUG

Cap, air cleaner

1шт.

35

A137702

HOSE

Aspirator (1-1/4" I.D. x 2") (1st used P.I.N. 8813175)

1шт.

36

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1-3/16" to 1-3/4"

2шт.

37

A137582

TUBE

Aspirator (1st used P.I.N. 8813175)

1шт.

38

A76059

GASKET

Tube, Serial Range: flange-muffler

1шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

40

192-21

LOCK WASHER,3/8"

2шт.

41

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

Aspirator (1-1/4" I.D. x 5-5/16"), Serial Range: -8813175

1шт.

42

A66205

TUBE

Aspirator (Order A137582), Serial Range: -8813175

1шт.
