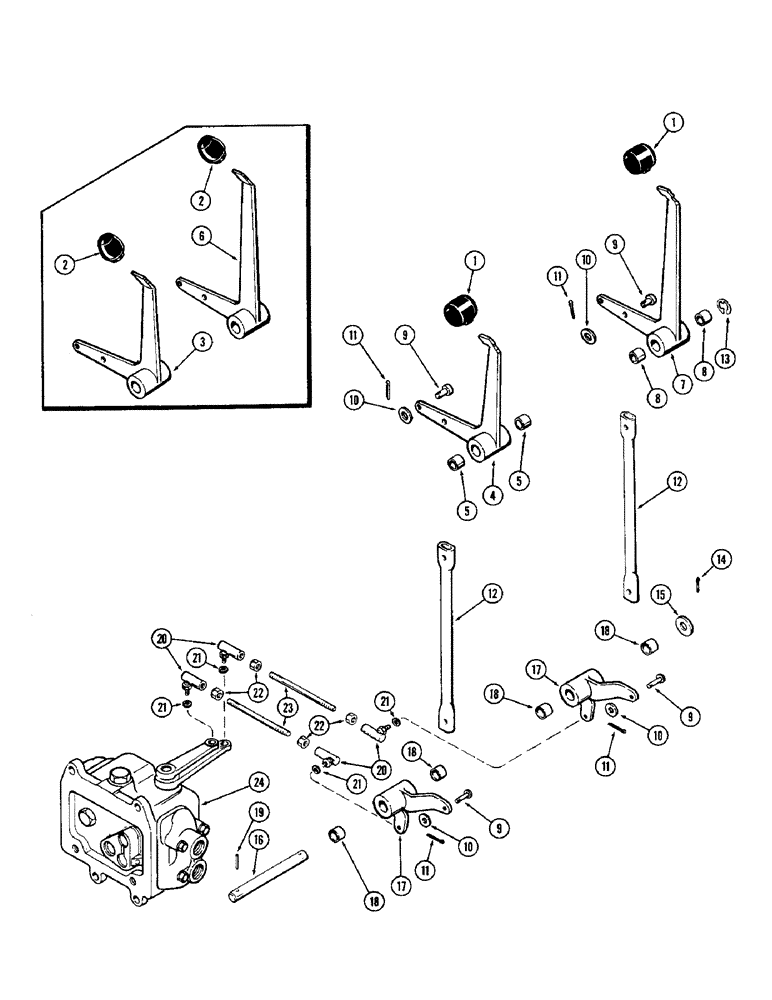

Запчасти Case IH 1370 (314) - LEFT HAND REMOTE HYDRAULIC CONTROLS, FIRST USED P.I.N. 8736001 (08) - HYDRAULICS

1

A137806

KNOB

Lever (Rubber)

2шт.

2

A65699

KNOB

Lever (Plastic) (Order A137806)

2шт.

3

A66554

LEVER

ASSEMBLY - inner (w/threaded top) (Order Ref. 1 and 4)

1шт.

4

A139343

LEVER

ASSEMBLY - inner (Replaces A66554), Includes Ref. 5

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

Pivot

2шт.

6

A66553

LEVER

ASSEMBLY - outer (w/threaded top) (Order Ref. 1 and 7)

1шт.

7

A139344

LEVER

ASSEMBLY - outer (Replaces A66553), Includes Ref. 8

1шт.

8

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

Pivot

2шт.

9

141-3

CLEVIS PIN,5/16" x .940"

4шт.

10

195-21

WASHER,5/16"

(21/32 x 11/16 x 1/16")

4шт.

11

132-26

COTTER PIN

3/32" x 3/4"

4шт.

12

A61659

ROD

LINK -, Serial Range: lever-bellcrank

2шт.

13

A27785

CIRCLIP,#62, .480" Dia, E-Type

Remote levers

1шт.

14

132-30

COTTER PIN,3/32" x 1 1/4"

1шт.

15

195-41

WASHER,5/8"

1шт.

16

A59529

SHAFT

Bellcrank lever

1шт.

17

A63829

LEVER

ASSEMBLY - bellcrank, Includes Ref. 18

2шт.

18

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

Pivot bellcrank lever

2шт.

19

138-61

LOCK PIN,1/8" x 1", Slotted

1шт.

20

A145066

JOINT

Ball, remote lever lower rod (Replaces A27382)

4шт.

21

92-5

LOCK WASHER,5/16"

4шт.

22

25-115

NUT,5/16"-24, G5

4шт.

23

A63548

ROD

Valve control

2шт.

24

REF

INSTRUCTION

VALVE ASSEMBLY - LH remote (See Figure 324)

1шт.
