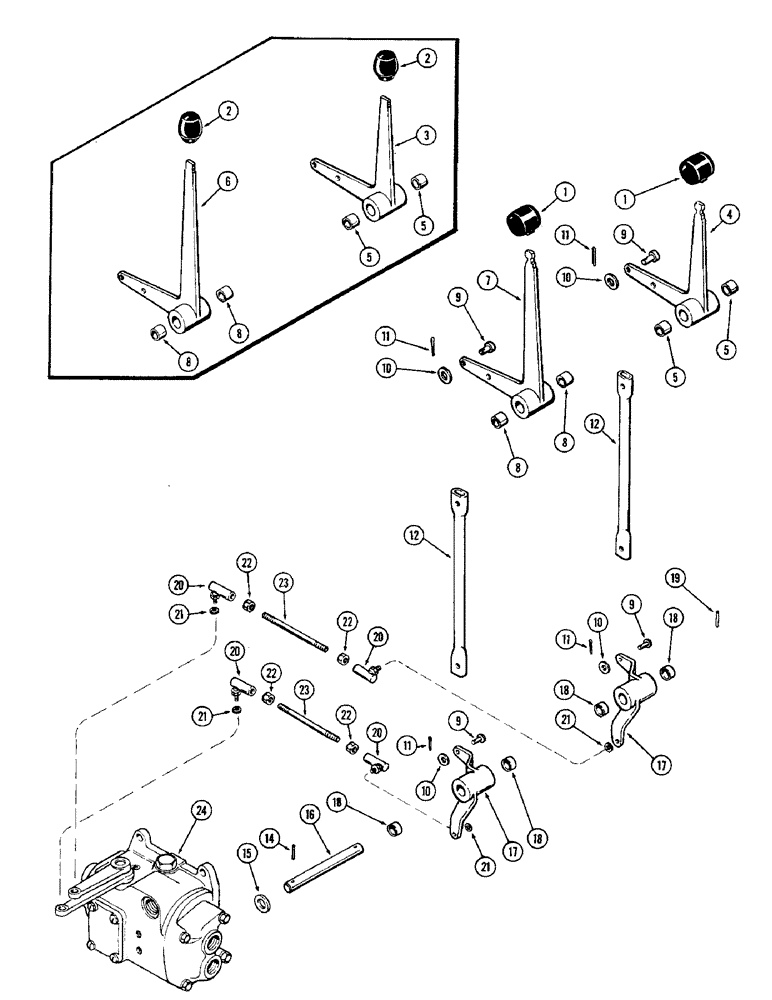

Запчасти Case IH 1370 (302) - RIGHT HAND REMOTE HYDRAULIC CONTROLS, USED PRIOR TO P.I.N. 8736001 (08) - HYDRAULICS

1

A137806

KNOB

- lever (Rubber)

2шт.

2

A65699

KNOB

- lever (Plastic) (Order A137806)

2шт.

3

A63543

LEVER

ASSEMBLY - inner (w/threaded top) (Order Ref. 1 and 4)

1шт.

4

A137833

LEVER

ASSEMBLY - inner (Replaces A63543), Includes: Ref. 5

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- pivot

2шт.

6

A63542

LEVER

ASSEMBLY - outer (w/threaded top) (Order Ref. 1 and 7)

1шт.

7

A137832

LEVER

ASSEMBLY - outer (Replaces A63542), Includes: Ref. 8

1шт.

8

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- pivot

2шт.

9

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, (Upper link to hand levers) 5/16" x .940"

4шт.

10

195-21

WASHER,5/16"

- (11/32 x 11/16 x 1/16")

4шт.

11

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

12

A61659

ROD

LINK - remote levers, upper

2шт.

14

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

1шт.

15

195-41

WASHER,5/8"

1шт.

16

A59529

SHAFT

- bellcrank lever

1шт.

17

A63544

LEVER

ASSEMBLY - bellcrank, Includes: Ref. 18

2шт.

18

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever pivot

2шт.

19

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

20

A145066

JOINT

- ball, control rod

4шт.

21

92-5

LOCK WASHER,5/16"

4шт.

22

25-115

NUT,5/16"-24, G5

- hex (5/16" NF)

4шт.

23

A63548

ROD

- lever to remote valve

2шт.

24

REF

INSTRUCTION

VALVE ASSEMBLY - R.H. remote hydraulic (See Figure 310)

1шт.
