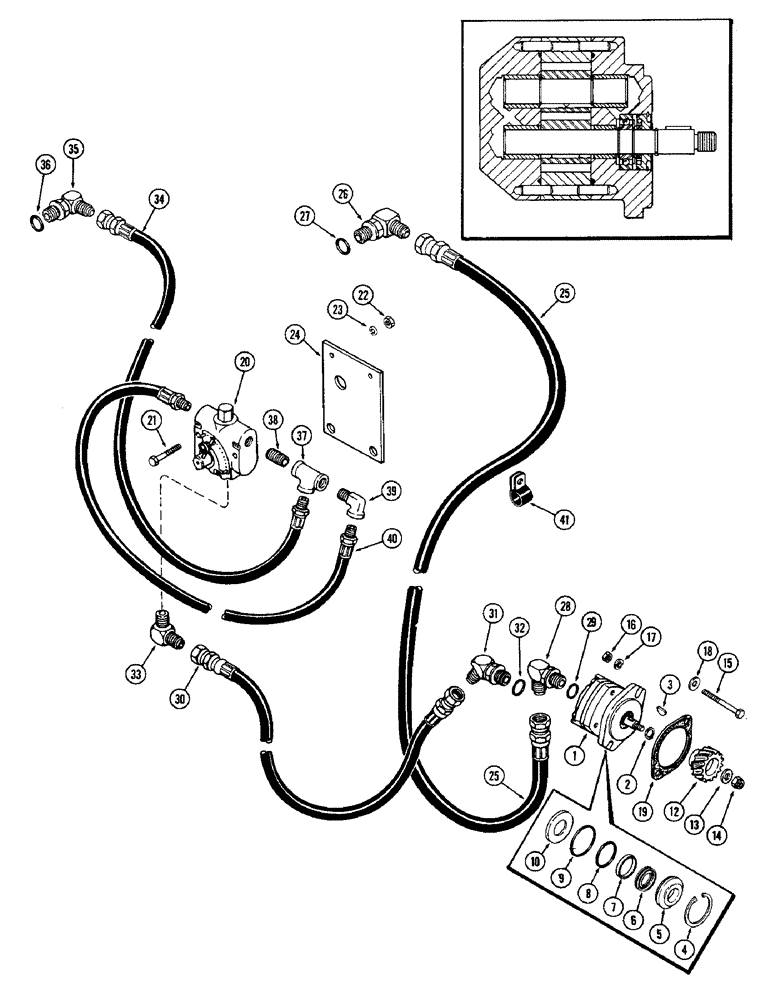

Запчасти Case IH 1370 (298) - AUXILIARY HYDRAULIC PUMP KIT (08) - HYDRAULICS

A67196

KIT - auxiliary hydraulic (6 G.P.M.) (Mach. item)

1шт.

A67197

KIT - auxiliary hydraulic (11 G.P.M.) (Mach. item), Includes: Ref. 1 - 41

1шт.

1

A139692

PUMP

- auxiliary (6 G.P.M.)

1шт.

1

A139693

PUMP

- auxiliary (11 G.P.M.)

1шт.

2

D32101

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Includes: Ref. 4 - 10 #6, 5/32" x 5/8"

1шт.

A45378

SEAL

KIT - pump seal, Includes: Ref. 4 - 10

1шт.

4

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

1шт.

5

A45377

SEAL

RETAINER - seal

1шт.

6

A45374

RING

- quad

1шт.

7

A45376

COLLAR

- o-ring

1шт.

8

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- (15/16 x 1-1/8 x 3/32")

1шт.

9

A59066

O-RING,1.239" ID x 1.379" OD

- (1-1/4 x 1-3/8 x 1/16")

1шт.

10

A45375

WASHER

RING - back-up

1шт.

12

L43703

GEAR

- pump drive

1шт.

13

A64303

WASHER

- thrust (5/8 x 1-1/16 x 1/16")

1шт.

14

131-58

LOCK NUT,1/2"-20, G5

NUT - lock (1/2" N.F. Essna)

1шт.

15

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- (3/8 x 3-3/4" N.C. hex.)

2шт.

16

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

195-525

WASHER,3/8", SAE

- (13/32 x 13/16 x 1/16")

2шт.

19

A58617

GASKET

- pump mounting

1шт.

20

A139696

VALVE

- variable flow

1шт.

21

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

22

25-104

NUT,1/4"-20, G5

2шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

A139609

BRACKET

- valve mounting

1шт.

25

A141004

HYDRAULIC HOSE,0.75" ID x 64.00", SAE 100R1

HOSE 0.75" ID x 64.00", SAE 100R - Inlet, Filter to Pump

1шт.

26

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- (90 deg.-3/4" tube x 1") Filter to inlet hose, Includes: Ref. 27

1шт.

27

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- (1-3/64 x 1-33/64 x 7/64")

1шт.

28

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 3/4" tube x 1-1/16"-12) Inlet hose to pump, Incl. Ref. 29

1шт.

29

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- (1-11/64 x 1-11/16 x 15/64")

1шт.

30

36942

HOSE

- inlet, pump to valve (1/2" I.D. x 44")

1шт.

31

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- (45 deg.-5/8" x 3/4") Pump to outlet hose, Incl. Ref 32

1шт.

32

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- (1-11/64 x 1-33/64 x 15/64")

1шт.

33

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- (90 deg. tube x 7/8"-14) Outlet hose to valve

1шт.

34

A141010

HOSE

- return, valve to filter (1/2" I.D. x 63")

1шт.

35

A63536

FITTING

ELBOW - (90 deg.-7/8" N.F. x 1-1/16" N.F.) Return hose to trans. case, Includes: Ref. 36

1шт.

36

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- (1-11/64 x 1-11/16 x 15/64")

1шт.

37

221-1424

TEE,Pipe, 1/2" NPT

- valve (1/2" P.T.)

1шт.

38

218-1185

NIPPLE - valve (1/2" P.T. x 1-1/8" lg.)

1шт.

39

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

- street (90 deg.-1/2" P.T.) Return hose

1шт.

40

A141012

HOSE

- by-pass (3/8" I.D. x 22")

1шт.

41

T50104

CLAMP

- hose, inlet

1шт.
