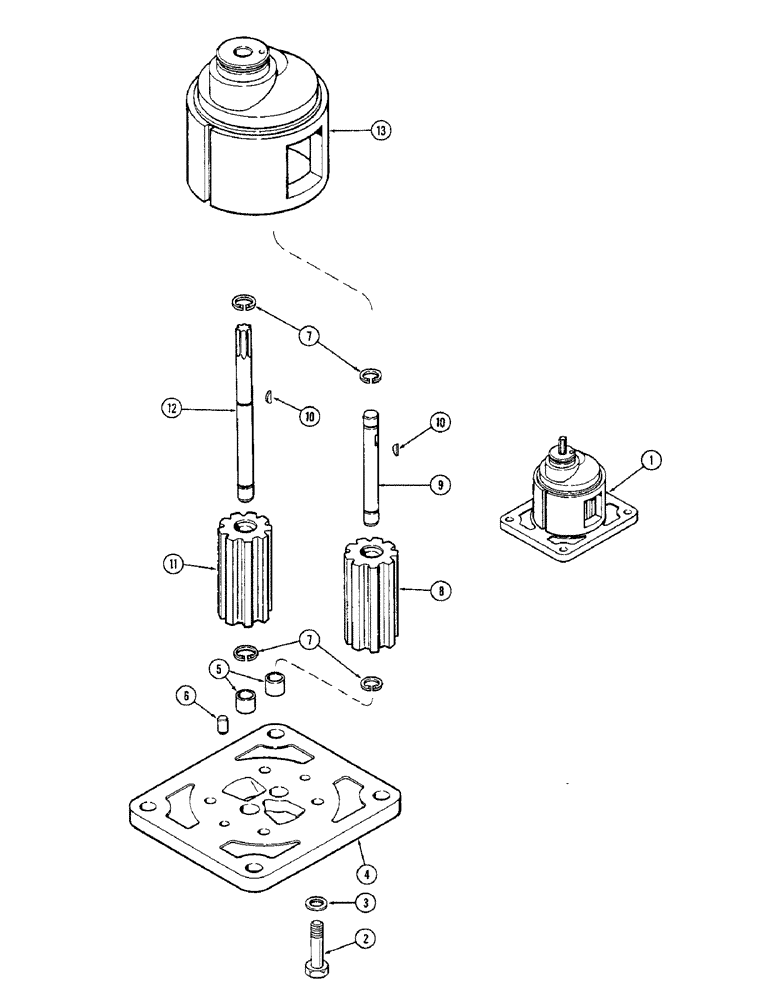

Запчасти Case IH 1370 (296) - A64092 CHARGING PUMP (08) - HYDRAULICS

1

A64092

PUMP

ASSEMBLY - charging, hyd. oil, Includes: Ref. 2 - 14

1шт.

2

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Cover to body Hex, 3/8"-16 x 1 3/4", G5

4шт.

3

A63335

WASHER

- seal, Serial Range: cover-body

4шт.

4

A63333

PLATE

COVER ASSEMBLY - pump, Includes: Ref. 5

1шт.

5

A11521

BUSHING,11.89mm ID x 15.93mm OD x 12.83mm L

- pump cover

2шт.

6

A11528

PIN,7.81mm OD x 14.29mm L

- dowel, Serial Range: cover-body

2шт.

7

T37344

SNAP RING,#50, Ext

Ring, Snap, #50, Ext

4шт.

8

A64096

GEAR

- driven (9 teeth)

1шт.

9

A64097

SHAFT

- driven gear (4.498" long)

1шт.

10

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

2шт.

11

A64096

GEAR

- drive (9 teeth)

1шт.

12

A64099

SHAFT

- drive gear (7" long)

1шт.

13

A64093

HOUSING

BODY ASSEMBLY - pump, Includes: Ref. 14

1шт.

14

A11521

BUSHING,11.89mm ID x 15.93mm OD x 12.83mm L

- pump body

2шт.
