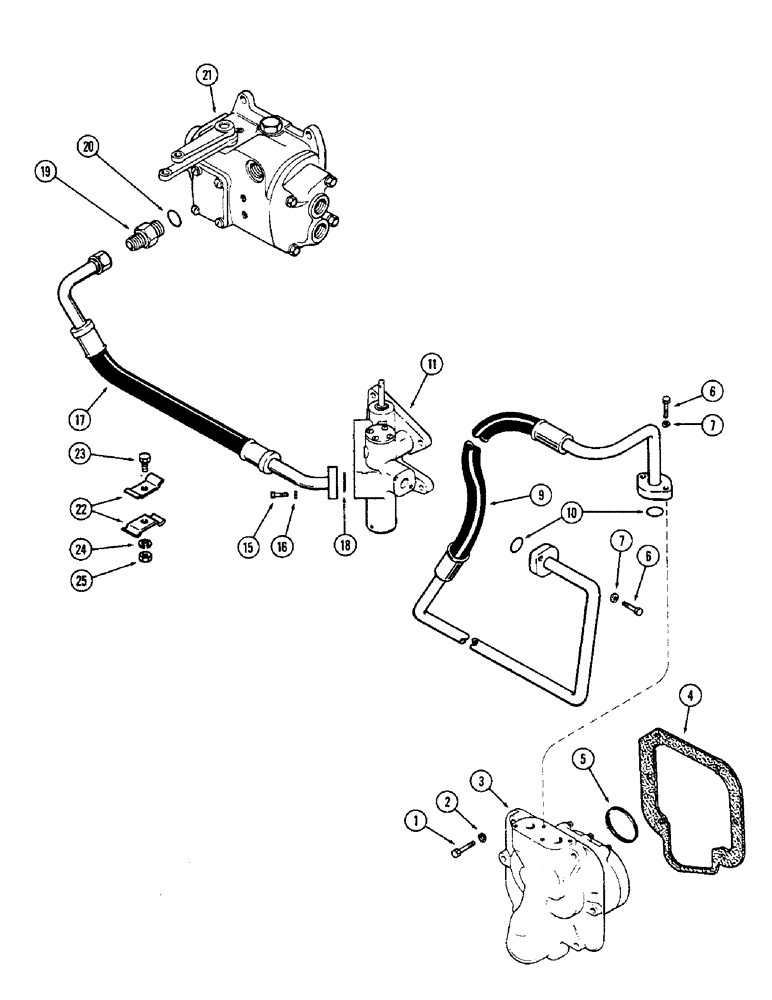

Запчасти Case IH 1370 (290) - DOUBLE GEAR HYDRAULIC PUMP CIRCUITRY (08) - HYDRAULICS

1

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

1

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8 x 2" N.C. hex.

2шт.

2

92-6

LOCK WASHER,3/8"

6шт.

3

REF

INSTRUCTION

PUMP ASSEMBLY - hyd. dual (See Figure 270)

1шт.

4

A63304

GASKET

- hyd. dual pump

1шт.

5

A37646

O-RING,2.237" ID x 2.443" OD x 0.103"

SEAL - hyd. dual pump

1шт.

6

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.)

4шт.

7

92-5

LOCK WASHER,5/16"

4шт.

9

A65078

TUBE

-, Serial Range: pump-valve

1шт.

10

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

- (7/8 x 1-1/8 x 1/8")

2шт.

11

REF

INSTRUCTION

VALVE ASSEMBLY - P.T.O. and clutch regulator (See Figure 244)

1шт.

15

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.)

2шт.

16

92-5

LOCK WASHER,5/16"

2шт.

17

A64328

HYD TUBE

- P.T.O. and clutch regulator valve to R.H. standard remote hydraulic valve

1шт.

18

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

- (7/8 x 1-1/8 x 1/8")

1шт.

19

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight (3/4" tube O.D.), Incl. Ref. 20

1шт.

20

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- (3/4 x 59/64 x 1/8")

1шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - R.H. remote hydraulics (See Figue 288)

1шт.

22

A61272

CLAMP

- tube (Reg. valve tube to reverse lock out tube)

2шт.

23

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.

25

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

1шт.
