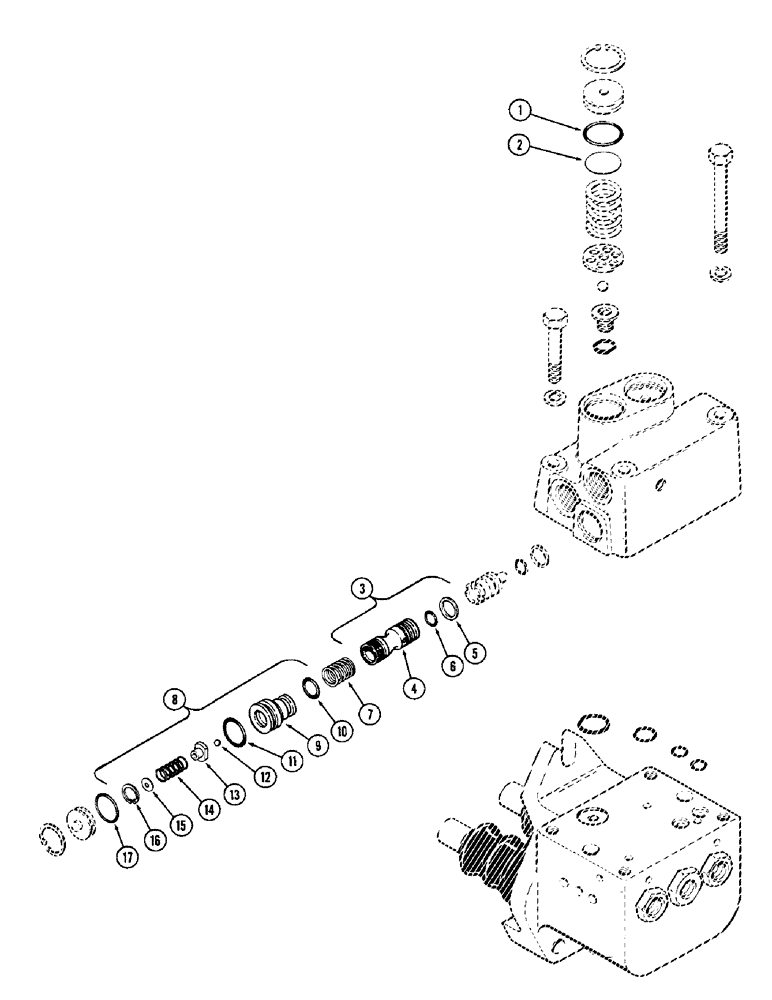

Запчасти Case IH 1370 (260) - BRAKE VALVE CONVERSION KIT, TO CONVERT A65727 VALVE TO G34992 VALVE (07) - BRAKES

G35357

KIT

- conversion, A65727 valve to G34992 valve, Includes: Ref. 1 - 17

1шт.

1

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- (15/16 x 1-1/8 x 3/32")

1шт.

2

A60655

SHIM,.010" Thk

Pressure adjusting .010" Thk

4шт.

2

A61802

SHIM,.050" Thk

Pressure adjusting (Order A60655) .050" Thk

1шт.

3

G35359

SPOOL

ASSEMBLY - pressure regulating, Includes: Ref. 4 - 6

1шт.

4

G35352

SPOOL

- pressure regulating

1шт.

5

A59951

RING

- seal

1шт.

6

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

1шт.

7

G35349

SPRING

- spool (21/32" free length)

1шт.

8

G35358

SPOOL

ASSEMBLY - pressure release, Includes: Ref. 9 - 16

1шт.

9

G35356

SPOOL

- pressure release

1шт.

10

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- (7/16 x 5/8 x 3/32")

1шт.

11

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- (11/16 x 7/8 x 3/32")

1шт.

12

211-254

BALL,5/32" Dia

- pressure control (.) 5/32" Dia

1шт.

13

G35353

WASHER

RETAINER - pressure spring

1шт.

14

G35354

SPRING

- pressure control (25/32" free length)

1шт.

15

G35355

SHIM

- pressure spring (3/64")

1шт.

16

A59973

SNAP RING,0.50", Int, #50

Ring, Snap, 0.50", Int, #50

1шт.

17

D32114

O-RING,0.75" ID x 0.875" OD

- pressure control plug (3/4 x 7/8 x 1/16")

1шт.
