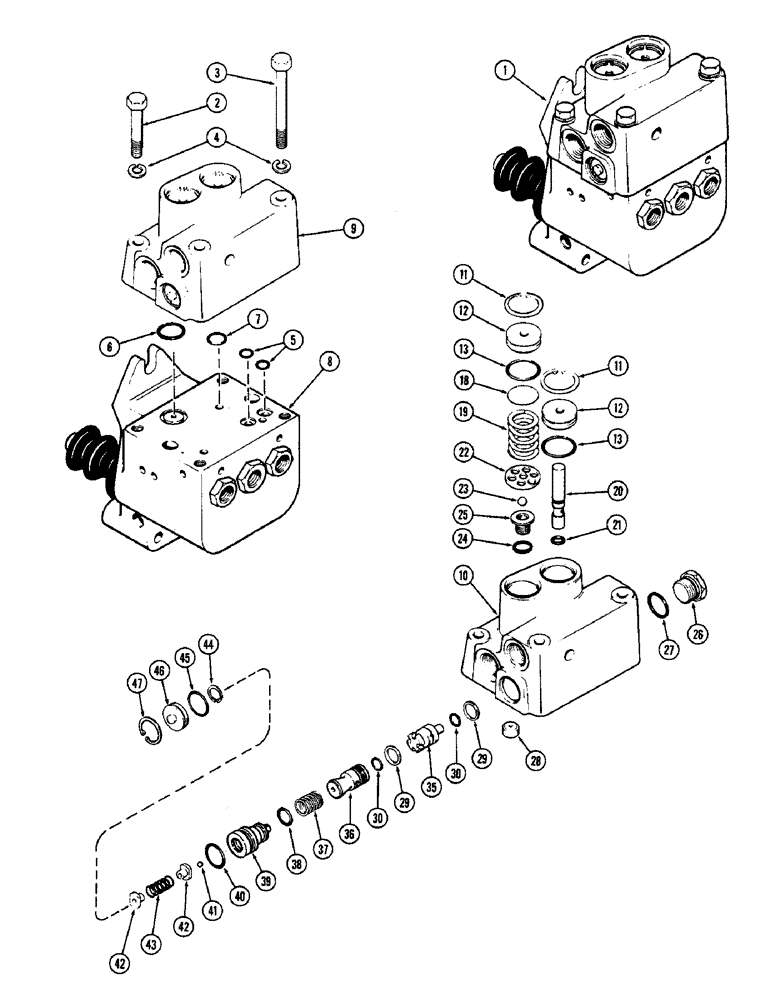

Запчасти Case IH 1370 (256) - A65727 BRAKE VALVE ASSEMBLY, PART NUMBER STAMPED ON COVER (07) - BRAKES

1

A65727

VALVE

ASSEMBLY - brake (Order G101002 Figure 248) (See Figure 240 for conversion kit), Includes: Ref. 2 - 47

1шт.

2

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Cover to master cyl. Hex, 5/16"-18 x 2", G5

2шт.

3

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- (5/16 x 3-1/4" N.C. hex.) Cover to master cyl.

2шт.

4

92-5

LOCK WASHER,5/16"

4шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Cover

2шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

6

F10894

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

- cover (11/16 x 13/16 x 1/16")

1шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

7

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- cover (1/2 x 5/8 x 1/16")

1шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

8

REF

INSTRUCTION

VALVE ASSEMBLY - master cylinder (See Figure 258)

1шт.

9

A65721

COVER

ASSEMBLY - power brake valve (Order G101000, Figure 248), Includes: Ref. 10 - 47

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - cover (Order G101002)

1шт.

11

A36277

SNAP RING,1.125", Int, #112

pressure relief plug 1.125", Int, #112

2шт.

12

A59981

PLUG

- pressure relief

2шт.

13

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- press, relief plug (15/16 x 1-1/8 x 3/32")

2шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

18

A60655

SHIM,.010" Thk

Pressure relief spring .010" Thk

1шт.

19

G35350

SPRING

- pressure relief (11/64" free length) (Replaces A59980)

1шт.

20

A62836

INSERT

LIMITER - flow pressure

1шт.

21

AA27358

O-RING - (1/4 x 3/8 x 1/16")

1шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

22

A59979

WASHER

- pressure relief

1шт.

23

211-9

BALL,5/16" Dia

- (.) Pressure relief 5/16" Dia

1шт.

24

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- pressure relief seat (1/2 x 5/8 x 1/16")

1шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

25

G35351

SEAT

- pressure relief (Replaces A62433)

1шт.

26

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy, Pressure regulator, Incl Ref 27 Hex Soc, 3/4"-16 ORB

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (41/64 x 13/16 x 3/32")

1шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

28

A59969

PLUG

- orifice, valve cover

1шт.

29

A59951

RING

- seal, pressure regulating spool and piston

2шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

30

AA28090

O-RING - piston & spool (5/16 x 7/16 x 1/16")

2шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

35

G100075

PISTON

- pressure regulating (Replaces A59977)

1шт.

36

G35357

KIT

SPOOL - pressure regulating (Replaces A62833)

1шт.

37

A59975

SPRING

- pressure control (19/32" dia. x 21/32" free length)

1шт.

37

G35349

SPRING

- pressure control (15/32" O.D. x 21/32" free length)

1шт.

38

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- pressure release spool (7/16 x 5/8 x 3/32")

1шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

39

G35357

KIT

SPOOL - pressure release (Replaces A65726)

1шт.

40

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- pressure release spool (11/16 x 3/4 x 3/32")

1шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

41

211-4

BALL

- (5/32" dia.)

1шт.

42

A64916

WASHER

- pressure control spring

2шт.

43

A65039

SPRING

- pressure control (21/64" dia. x 25/32" free length)

1шт.

44

A59973

SNAP RING,0.50", Int, #50

Ring, Snap, , washer 0.50", Int, #50

1шт.

45

D32114

O-RING,0.75" ID x 0.875" OD

- pressure control plug (3/4 x 7/8 x 1/16")

1шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

46

A60652

PLUG

- pressure control

1шт.

47

D28157

SNAP RING,0.875", Int, #87

Ring, Snap, , pressure control plug 0.875", Int, #87

1шт.

A43709

SEAL

KIT repair, brake valve, Includes: Ref. 5 - 7, 13, 21, 24, 27, 29, 30, 38, 40 and 45

1шт.
