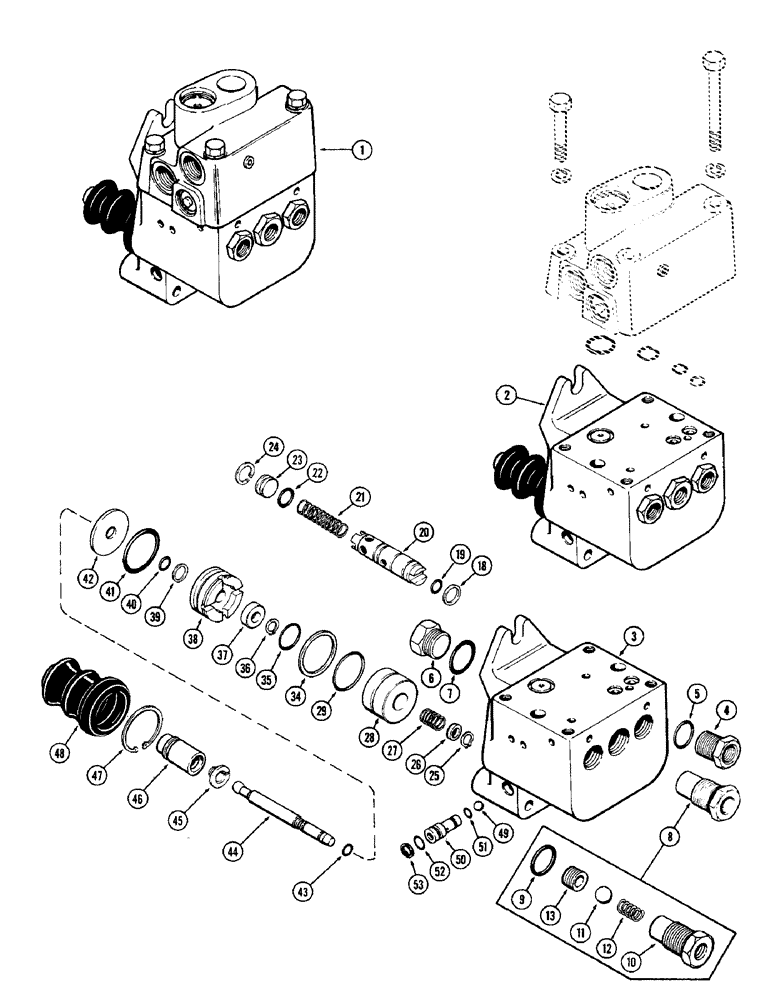

Запчасти Case IH 1370 (254) - G34992 BRAKE VALVE ASSEMBLY, PART NUMBER STAMPED ON COVER, USED PRIOR TO P.I.N. 8803261 (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
G34992
VALVE
ASSEMBLY - brake (Cont'd from Figure 252), Includes: Ref. 2 - 53
1шт.
2
G100061
VALVE
ASSEMBLY - master cylinder (Replaces A65729), Includes: Ref. 3 - 53
1шт.
3
NSS
NOT SOLD SEPARAT
BODY - valve, master cylinder (Order G100061)
1шт.
4
A59948
PLUG
- reducer, valve body
2шт.
6
86512512
PLUG,7/8" - 14 ORB
Assy, Body, Incl. Ref. 7 Hex Hd, 7/8"-14 ORB
1шт.
7
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- (3/4 x 5/8 x 3/32")
1шт.
8
A61508
VALVE
ASSEMBLY - relief, sump pressure, Includes: Ref. 9 - 13
1шт.
9
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- (3/4 x 15/16 x 3/32")
1шт.
Part of Valve Assy. Repair Kit P/N A43710.
1шт.
10
NSS
NOT SOLD SEPARAT
BODY - relief valve
1шт.
11
211-12
BALL,7/16 Dia
- (7/16" dia.)
1шт.
12
A61510
SPRING
- relief valve (21/32" free length)
1шт.
13
A61511
SEAT
- ball
1шт.
18
A59951
RING
- seal, boost spool
2шт.
Part of Valve Assy. Repair Kit P/N A43710.
1шт.
19
A28090
O-RING,0.301" ID x 0.441" OD x 0.07"
-011, 70 Duro, .301" ID x .070" Thk - Boost spool
2шт.
Part of Valve Assy. Repair Kit P/N A43710.
1шт.
20
G102283
SPOOL
- boost (Replaces A61104 and G100041)
2шт.
21
A59950
SPRING
- boost spool (1-3/4" free length)
2шт.
22
A29197
O-RING,0.424" ID x 0.63" OD x 0.103"
- plug (7/16 x 5/8 x 3/32")
2шт.
Part of Valve Assy. Repair Kit P/N A43710.
1шт.
23
A64911
PLUG
- boost spool
2шт.
24
G46147
SNAP RING,0.625", Int, #62
Ring, Snap, , spool plug 0.625", Int, #62
2шт.
25
G10659
SNAP RING,#31, Ext
Ring, Snap, , piston spring #31, Ext
2шт.
26
A65936
COLLAR
RETAINER - piston spring
2шт.
27
A59957
SPRING
- piston (21/32" free length)
2шт.
28
A59953
PISTON
- boost
2шт.
29
A59954
O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro
- piston (1-3/16 x 1-5/16 x 1/16")
2шт.
Part of Valve Assy. Repair Kit P/N A43710.
1шт.
34
A59955
SEALING RING
RING - seal, piston
2шт.
Part of Valve Assy. Repair Kit P/N A43710.
1шт.
35
F8222
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
- piston (3/4 x 7/8 x 1/16")
2шт.
Part of Valve Assy. Repair Kit P/N A43710.
1шт.
36
G10659
SNAP RING,#31, Ext
Ring, Snap, , piston seal washer #31, Ext
2шт.
37
A64912
WASHER
- piston seal
2шт.
38
A62072
SEAT
STOP - piston
2шт.
39
A59961
RING
- back-up, piston stop
2шт.
Part of Valve Assy. Repair Kit P/N A43710.
1шт.
40
A27891
O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro
- piston stop (3/8 x 9/16 x 3/32")
2шт.
Part of Valve Assy. Repair Kit P/N A43710.
1шт.
41
A27577
O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro
- piston stop (1-1/4 x 1-1/2 x 1/8")
2шт.
42
A60646
SPACER
RETAINER - piston stop
2шт.
43
A27880
O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro
- piston rod (3/16 x 5/16 x 1/16")
2шт.
Part of Valve Assy. Repair Kit P/N A43710.
1шт.
44
A64913
ROD
- piston
2шт.
45
A60647
COLLAR
RETAINER - nylon, piston rod connector
2шт.
Part of Valve Assy. Repair Kit P/N A43710.
1шт.
46
A63313
FITTING
CONNECTOR - piston rod
2шт.
47
T28550
SNAP RING,1.50", Int, #150
Ring, Snap, , piston stop 1.50", Int, #150
2шт.
48
A59966
BOOT
- piston rod
2шт.
Part of Valve Assy. Repair Kit P/N A43710.
1шт.
49
211-11
BALL,3/8" Dia
- differential lock release (.) 3/8" Dia
1шт.
50
A63312
SEAT
- differential lock release
2шт.
51
A27358
O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro
- differential lock release
2шт.
Part of Valve Assy. Repair Kit P/N A43710.
1шт.
52
A30825
O-RING,0.364" ID x 0.504" OD x 0.07"
- differential lock release
2шт.
53
A59973
SNAP RING,0.50", Int, #50
Ring, Snap, , differential lock release 0.50", Int, #50
2шт.
A43710
KIT
repair, valve assy., Includes: Ref. 5, 9, 18, 19, 22, 29 - 35, 39, 40, 43, 45, 48 and 51
1шт.
5
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- plug (41/64 x 13/16 x 3/32")
2шт.
Part of Valve Assy. Repair Kit P/N A43710.
1шт.
