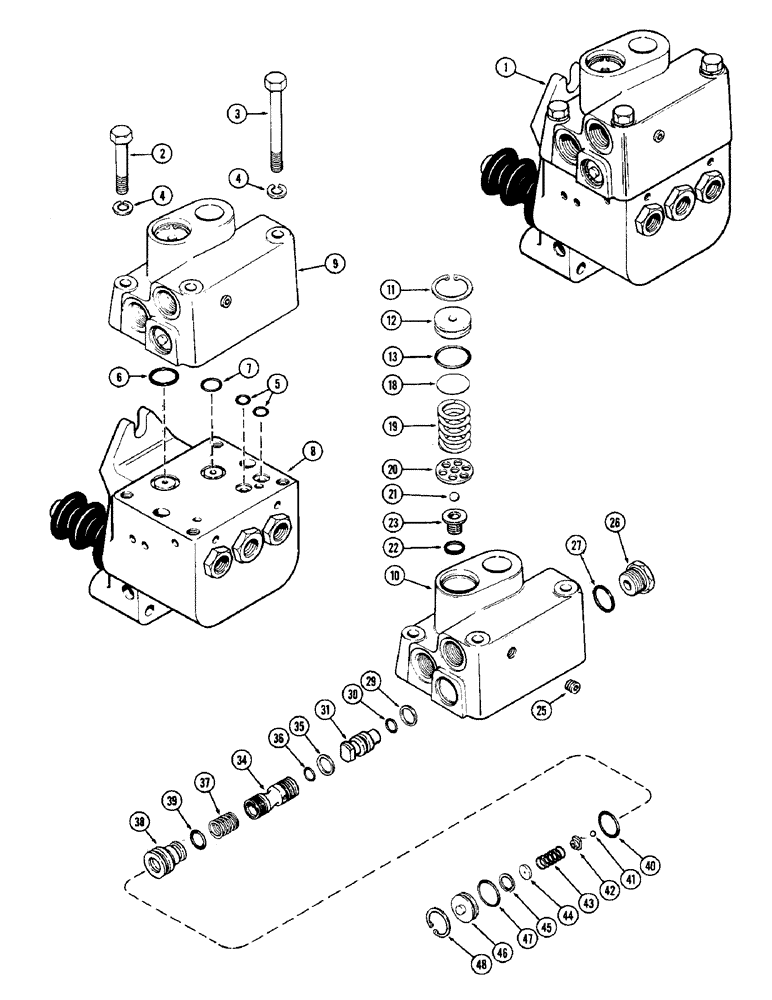

Запчасти Case IH 1370 (252) - G34992 BRAKE VALVE ASSEMBLY, PART NUMBER STAMPED ON COVER, USED PRIOR TO P.I.N. 8803261 (07) - BRAKES

1

G34992

VALVE

ASSEMBLY - brake (Order G101002 Figure 248), Includes: Ref. 2 - 48

1шт.

2

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Cover Hex, 5/16"-18 x 2", G5

2шт.

3

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- cover (5/16 x 3-1/4" N.C. hex.)

2шт.

4

92-5

LOCK WASHER,5/16"

4шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Cover

2шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

6

F10894

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

- cover (11/16 x 13/16 x 1/16")

1шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

7

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- cover (1/2 x 5/8 x 1/16")

1шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

8

REF

INSTRUCTION

VALVE ASSEMBLY - master cylinder (See Figure 254)

1шт.

9

G101000

COVER

ASSEMBLY - valve (Replaces G34994), Includes: Ref. 10 - 45

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - cover (Order G101002)

1шт.

11

A36277

SNAP RING,1.125", Int, #112

pressure relief plug 1.125", Int, #112

1шт.

12

A59981

PLUG

- pressure relief

1шт.

13

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- plug (15/16 x 1-1/8 x 3/32")

1шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

18

A60655

SHIM,.010" Thk

Pressure relief .010" Thk

1шт.

18

A61802

SHIM,.050" Thk

Pressure relief (Order A60655) .050" Thk

1шт.

19

G35350

SPRING

- pres. relief (1" O.D. x 1-11/64" free length)

1шт.

20

A59979

WASHER

- pressure relief

1шт.

21

211-259

BALL,5/16" Dia

- pressure relief (.) 5/16" Dia

1шт.

22

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- ball seat (1/2 x 5/8 x 1/16")

1шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

23

G35351

SEAT

- ball

1шт.

25

221-849

PLUG,Hex Soc, 1/8"-27

- 1/8" pt. hex. sckt. hd.

1шт.

26

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy, Pressure regulator, Incl Ref 27 Hex Soc, 3/4"-16 ORB

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (41/64 x 13/16 x 3/32")

1шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

29

A59951

RING

- seal, piston

1шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

30

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Piston

1шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

31

G100075

PISTON

- pressure regulating

1шт.

G35359

SPOOL

ASSEMBLY - pressure regulating, Includes: Ref. 34 - 36

1шт.

34

G35352

SPOOL

- pressure regulator

1шт.

35

A59951

RING

- seal spool

1шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

36

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Spool

1шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

37

G35349

SPRING

- pressure control (15/32" O.D. x 21/32" long)

1шт.

G35358

SPOOL

ASSEMBLY - pressure release, Includes: Ref. 38 - 45

1шт.

38

G35356

SPOOL

- pressure release

1шт.

39

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- spool (7/16 x 5/8 x 3/32")

1шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

40

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- spool (11/16 x 3/4 x 3/32")

1шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

41

211-254

BALL,5/32" Dia

- (.) 5/32" Dia

1шт.

42

G35353

WASHER

- spring control

1шт.

43

G35354

SPRING

- pressure control (29/64" O.D. x 31/32" long)

1шт.

44

G35355

SHIM

- pressure spring (3/64")

1шт.

45

A59973

SNAP RING,0.50", Int, #50

Ring, Snap, 0.50", Int, #50

1шт.

46

A60652

PLUG

- pressure control

1шт.

47

D32114

O-RING,0.75" ID x 0.875" OD

- plug (3/4 x 7/8 x 1/16")

1шт.

Part of Brake Valve Repair Kit P/N A43709.

1шт.

48

D28157

SNAP RING,0.875", Int, #87

Ring, Snap, , pressure control plug 0.875", Int, #87

1шт.

A43709

SEAL

KIT repair, brake valve, Includes: Ref. 5 - 7, 13, 22, 27 - 30, 35, 36, 39, 40 and 47

1шт.
