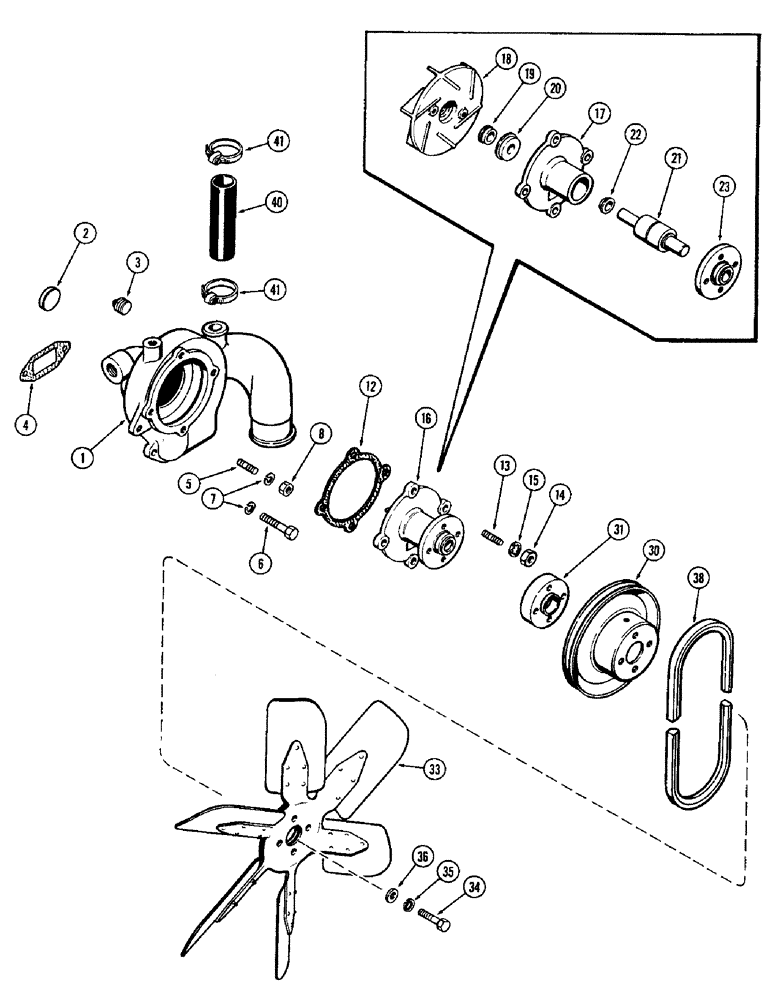

Запчасти Case IH 1370 (008) - WATER PUMP AND FAN, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A138498

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref. 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - cup (1-3/8" dia.)

1шт.

3

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2" P.T. sq. hd.

1шт.

4

A58649

GASKET

GASKET -, Serial Range: body-block

1шт.

5

G102128

BOLT

STUD - body to block (3/8" N.C. x 1-7/16") (Replaces G11204)

2шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex.

2шт.

12

A58646

GASKET

GASKET -, Serial Range: pump-body

1шт.

13

A62234

STUD

STUD - water pump to body (3/8" N.C. x 1-5/16")

4шт.

14

25-146

JAM NUT,Jam, 3/8"-16, G5

NUT - jam, 3/8" N.C. hex.

4шт.

15

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

16

A62976

PUMP

PUMP ASSEMBLY - (w/plastic impeller) (Order A152154)

1шт.

16

A152154

PUMP

PUMP ASSEMBLY - (w/cast iron impeller), Includes: Ref. 17 - 23

1шт.

16

1998701C1

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

16

A48329

CORE-WATER PUMP

Return Number, Water Pump

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

18

NSS

NOT SOLD SEPARAT

IMPELLER - water (Plastic) (Order A152126)

1шт.

18

A152126

IMPELLER

IMPELLER - water (Cast iron)

1шт.

19

A34000

SEAL

SEAL - impeller

1шт.

20

A142499

SEAL

SEAL - pump shaft

1шт.

21

A59056

BEARING ASSY

SHAFT ASSEMBLY - w/bearing, Includes: Ref: 22

1шт.

22

Q829325

BUSHING

- water

1шт.

23

A58742

HUB

HUB - fan and pulley

1шт.

30

A58837

PULLEY

PULLEY - belt, fan and pump drive

1шт.

31

A62465

BUSHING

SPACER - fan (1-1/4" wide)

1шт.

33

A64705

FAN

FAN - (22")

1шт.

34

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

4шт.

35

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

36

95-6

WASHER,3/8"

WASHER - 7/16 x 1 x 7/64"

4шт.

38

A65143

V-BELT,0.69" W x 58.25" L

Drive, Fan and Pump

1шт.

40

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

HOSE - water manifold to pump body (1-1/4" I.D. x 5-5/16")

1шт.

41

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.
