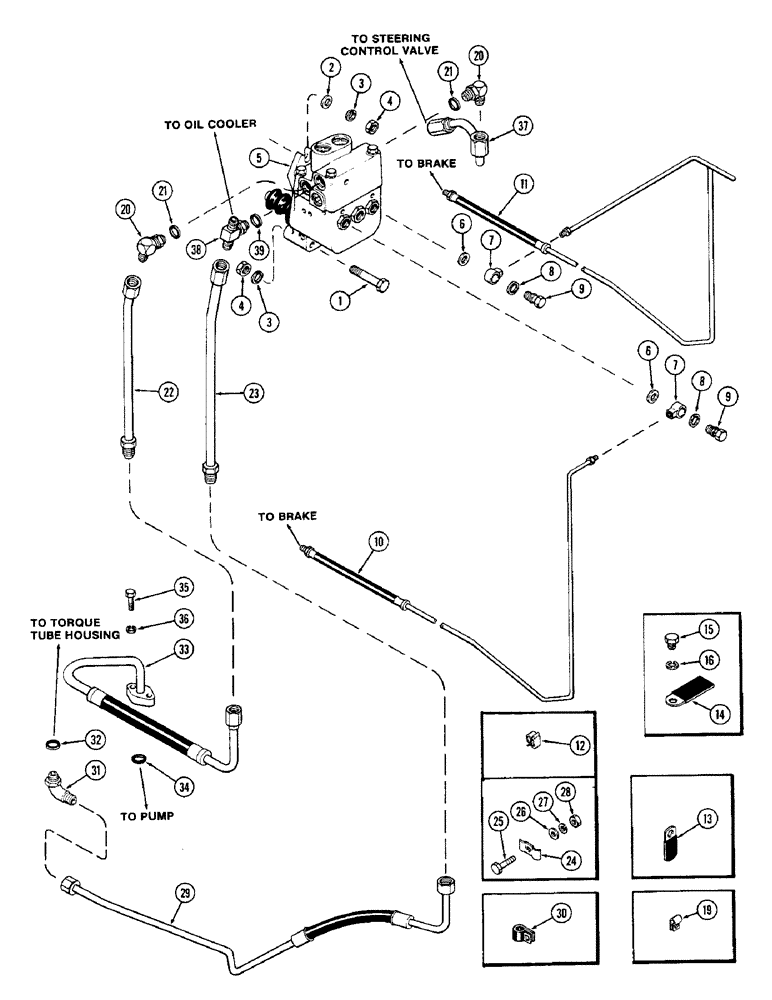

Запчасти Case IH 1370 (246) - BRAKE VALVE AND HYDRAULIC LINES (07) - BRAKES

1

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- (3/8 x 2-3/4" N.C. hex.) Valve to firewall

2шт.

2

95-6

WASHER,3/8"

- (7/16 x 1 x 5/64")

1шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" N.C.)

3шт.

5

REF

INSTRUCTION

VALVE ASSEMBLY - power assist brake (See Figure 248)

1шт.

6

NLS

NO LONGER SERVICED

- inner, master cylinder

2шт.

7

A18531

FITTING

- brake tube

2шт.

8

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer, master cylinder

2шт.

9

A12864

BOLT

- tube fitting connection

2шт.

10

A63998

TUBE

- hydraulic brake (R.H.)

1шт.

11

A63999

TUBE

- hydraulic brake (L.H.)

1шт.

12

A141226

CLIP

- brake, Serial Range: tube-platform

4шт.

13

A22880

CLIP

- retaining, brake line (Rear firewall mtg.)

2шт.

14

A57061

CLIP

- mounting, front seat

2шт.

15

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - (3/8 x 1/2" N.C. hex.) (L.H. seat mtg.)

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

19

A20541

CLIP

- brake, Serial Range: tube-firewall

2шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degrees (In brake valve inlet and outlet port), Includes: Ref. 21

2шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (1/2 x 21/32 x 3/32")

1шт.

22

A64323

TUBE

- brake valve inlet

1шт.

23

A64324

TUBE

- brake valve return

1шт.

24

A63323

CLAMP

- tube (Brake inlet and return, Serial Range: tube-firewall)

1шт.

25

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- (5/16 x 1-1/2" N.C. hex)

1шт.

26

95-5

WASHER,3/8" x 7/8" x .083"

- (3/8 x 7/8 x 5/64)

1шт.

27

92-5

LOCK WASHER,5/16"

1шт.

28

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16")

1шт.

29

A65132

TUBE

- brake, Serial Range: valve-sump

1шт.

30

49838

CLAMP

- tube (Tube to hyd. pump)

1шт.

31

218-5104

ELBOW,90 Degree Elbow, 1/2" - 20 Male JIC x 1/2" - 20 Male ORB

ASSEMBLY - 90 degrees (In torque tube), Includes: Ref. 32

1шт.

32

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

- 13/32 x 17/32 x 1/16"

1шт.

33

A64322

HYD TUBE

- pump to brake valve

1шт.

34

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- (13/16 x 5/8 x 3/32")

1шт.

35

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

To pump Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

36

92-5

LOCK WASHER,5/16"

2шт.

37

A139385

TUBE

- steering valve inlet (Replaces A63321 and A66431)

1шт.

38

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - (In brake valve return port), Includes: Ref. 39

1шт.

39

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (1/2 x 21/32 x 3/32")

1шт.
