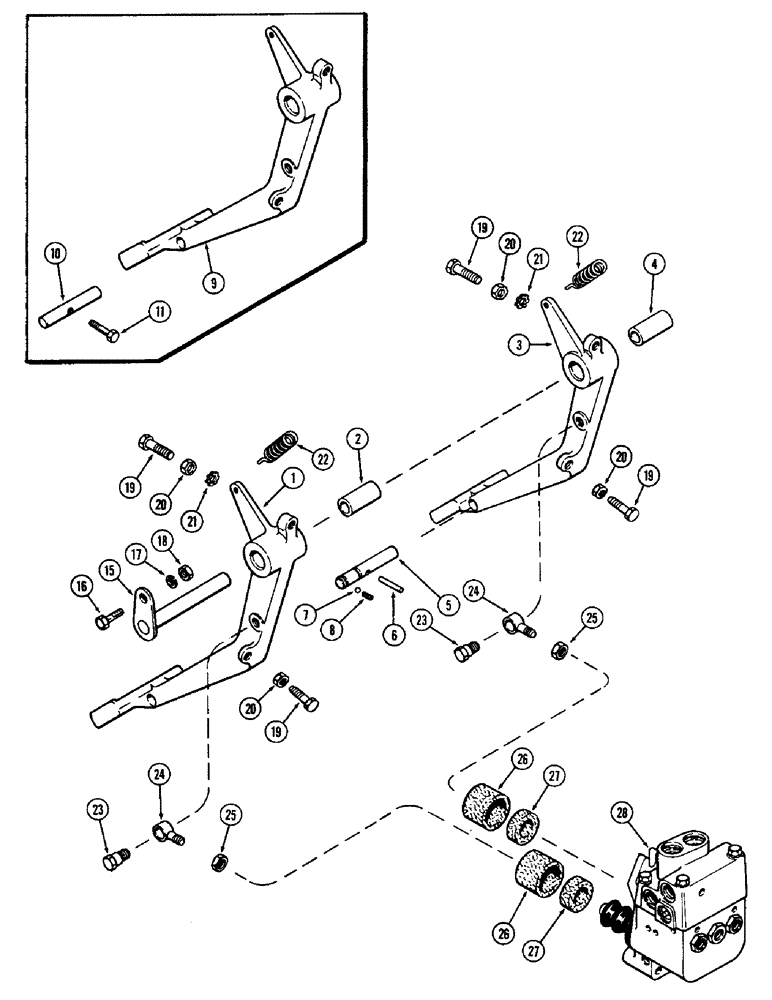

Запчасти Case IH 1370 (244) - BRAKE PEDALS (07) - BRAKES

1

A63370

PEDAL

ASSEMBLY - brake (R.H.), Includes: Ref. 2

1шт.

2

A59475

BUSHING

- brake pedal

1шт.

3

A139230

PEDAL

ASSEMBLY - brake, L.H. (Replaces A63371) (1st used P.I.N. 8803261), Includes: Ref. 4 - 8

1шт.

4

A59475

BUSHING

- pedal

1шт.

5

A137484

PIN

- brake pedal lock

1шт.

6

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

7

211-7

BALL,1/4" Dia

1шт.

8

A137523

SPRING - lock pin detent (3/8" free length)

1шт.

9

A63371

PEDAL

ASSEMBLY - brake (L.H.) (Order A139230), Serial Range: -8803261

1шт.

10

A65344

PIN

- brake pedal lock (Used w/A63371) (Order A137484 and 1-138-130)

1шт.

11

A65343

BOLT

- brake pedal lock (Used w/A63371)

1шт.

15

A59452

SHAFT

- brake pedal pivot

1шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

17

92-5

LOCK WASHER,5/16"

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" N.C.)

1шт.

19

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.)

4шт.

20

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex. (5/16" N.C. jam)

4шт.

21

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, (Upper stop bolt) Ext Tooth, 5/16"

2шт.

22

A59470

SPRING

- brake pedal return

2шт.

23

A59152

STEP BOLT

BOLT - shoulder, brake pedal to master cylinder

2шт.

24

A63314

BOLT

- eye, push rod

2шт.

25

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex. (3/8" N.C. jam)

2шт.

26

A61288

COLLAR

- air seal, outer

2шт.

27

A61287

COLLAR

- air seal, inner

2шт.

28

REF

INSTRUCTION

VALVE ASSEMBLY - power assist brake (See Figure 248)

1шт.
