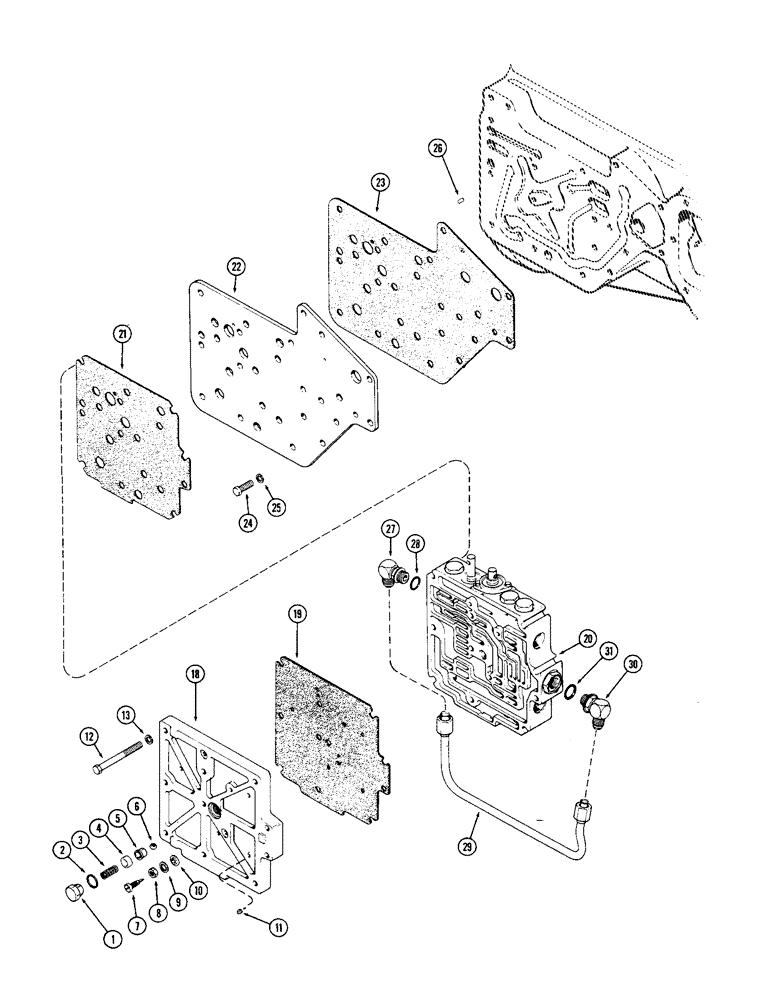

Запчасти Case IH 1370 (282) - TRANSMISSION CONTROL VALVE (06) - POWER TRAIN

1

A62588

PLUG

- detent

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (41/64 x 1/2 x 5/64")

1шт.

3

A61696

SPRING

- detent ball (7/16" O.D. x 1-1/16" free length)

1шт.

4

A62107

SPACER

- detent

1шт.

5

A59062

SLEEVE

- detent

1шт.

6

211-12

BALL,7/16 Dia

- detent (7/16" dia. chrome steel)

1шт.

7

A136916

NEEDLE

- retard (Replaces A59073)

2шт.

8

25-154

JAM NUT,Jam, 1/4"-28, G5

- 1/4" N.F. hex jam

2шт.

9

122-13

GROMMET

BURR - riveting (1/4" steel)

2шт.

10

A59074

SEAL

- thread (1/4" I.D.)

2шт.

11

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, valve cover (1/8" square head)

5шт.

12

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- (3/8 x 3-3/4" N.C. hex.) Cover to torque tube

10шт.

13

92-6

LOCK WASHER,3/8"

10шт.

18

A64321

COVER

- trans. control valve

1шт.

19

A66734

GASKET

- valve to valve cover (Replaces A66108)

1шт.

20

REF

INSTRUCTION

VALVE ASSEMBLY - trans. control valve (See Figure 286)

1шт.

21

A66736

GASKET

- valve to manifold plate (Replaces A66111)

1шт.

22

A65309

PLATE

- manifold

1шт.

23

A66112

GASKET

- manifold to torque tube

1шт.

24

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Manifold to torque tube Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

A63087

NEEDLE ROLLER

PIN - dowel (3/16 x 3/4") (Valve to manifold plate to torque tube)

1шт.

27

A63295

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18 O-Ring

ASSEMBLY - 90 degree adjustable (1/2" tube x 9/16"-18), Includes: Ref. 28

1шт.

28

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

- (9/16 x 3/4 x 3/32")

1шт.

29

A64332

TUBE

- pilot, reverse lock out

1шт.

30

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree adjustable (1/2" tube x 3/4"-16), Includes: Ref. 31

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (41/64 x 1/2 x 5/64")

1шт.
