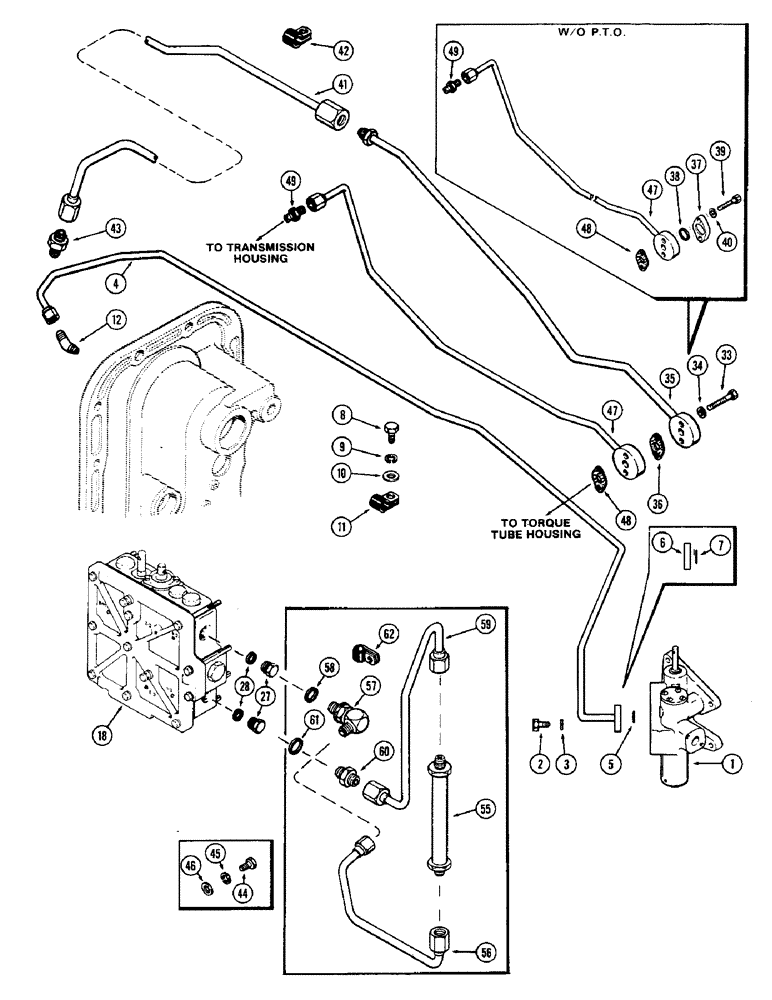

Запчасти Case IH 1370 (280) - P.T.O. HYDRAULIC LINES, USED PRIOR TO P.I.N. 8811146 (06) - POWER TRAIN

1

REF

INSTRUCTION

VALVE ASSEMBLY - P.T.O. and clutch regulator (See Figure 264)

1шт.

2

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

3

92-5

LOCK WASHER,5/16"

2шт.

4

A66799

TUBE

- P.T.O. actuating (Replaces A63530)

1шт.

5

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- (11/16 x 1/2 x 3/32")

1шт.

6

A63533

WASHER

CAP - P.T.O. valve lube opening hole (Used w/o P.T.O.)

1шт.

7

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- (13/16 x 5/8 x 3/32") (Used w/o P.T.O.)

1шт.

8

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

95-4

WASHER,1/4"

- (5/16 x 3/4 x 1/16")

1шт.

11

49852

PTO SHAFT

- tube (P.T.O. actuating)

1шт.

12

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

(PTO housing) 45º, 9/16-18" 37º x 1/4"-18, NPTF

1шт.

18

REF

INSTRUCTION

VALVE ASSEMBLY - trans. control valve (Repairs page 266)

1шт.

27

A62564

PLUG

- pressure regulator (In 3 x 4 valve, C-1 and C-4 ports) (Used w/o shuttle valve)

2шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug (1/2 x 21/32 x 3/32") (Used w/o P.T.O.)

2шт.

33

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Front lube tube and (C-1) tube to torque tube (Used w/P.T.O.) Hex, 5/16"-18 x 2", G5

2шт.

34

92-5

LOCK WASHER,5/16"

2шт.

35

A66142

TUBE

- P.T.O. lube (Front)

1шт.

36

A66143

GASKET

- P.T.O. front lube tube

1шт.

37

A63533

WASHER

CAP - 2 bolt flange (Used w/o P.T.O.)

1шт.

38

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- cap (Used w/o P.T.O.) (5/8 x 13/16 x 3/32")

1шт.

39

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- (5/16 x 1-3/4" N.C. hex.) (C-1) Lube tube and flange cap to torque tube (Used w/o P.T.O.)

2шт.

40

92-5

LOCK WASHER,5/16"

2шт.

41

A64449

TUBE

- P.T.O. lube (Rear)

1шт.

42

49836

CLAMP

- P.T.O. rear lube tube (Held by L.H. remote valve mtg. bolt)

1шт.

43

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - (1/4 P.T. x 1/2") (P.T.O. lube cover)

1шт.

44

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

(Tube clamp on L.H. side of torque tube) (Used w/o P.T.O.) Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

45

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

46

95-4

WASHER,1/4"

- (5/16 x 3/4 x 1/16")

1шт.

47

A66144

TUBE

- (C-1) Lube (Used w/and w/o P.T.O.)

1шт.

48

A66143

GASKET

- (C-1) Lube tube (Used w/and w/o P.T.O.)

1шт.

49

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - straight (C-1) Lube tube to trans. hsg.

1шт.

55

A65308

VALVE

- shuttle, Serial Range: -8736601

1шт.

56

A65307

TUBE

- shuttle valve (Lower), Serial Range: -8736601

1шт.

57

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 deg. (Adjustable) (1/2" tube x 3/4" N.F.), shuttle valve, Includes: Ref. 58, Serial Range: -8736601

1шт.

58

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (1/2 x 21/32 x 3/32"), shuttle valve, Serial Range: -8736601

1шт.

59

A64347

TUBE

- shuttle valve (Upper), Serial Range: -8736601

1шт.

60

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, shuttle valve, Incl. Ref 61, Serial Range: -8736601

1шт.

61

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (1/2 x 21/32 x 3/32"), shuttle valve, Serial Range: -8736601

1шт.

62

49838

CLAMP

- tube, upper shuttle valve tube to double pump, Serial Range: -8736601

1шт.
