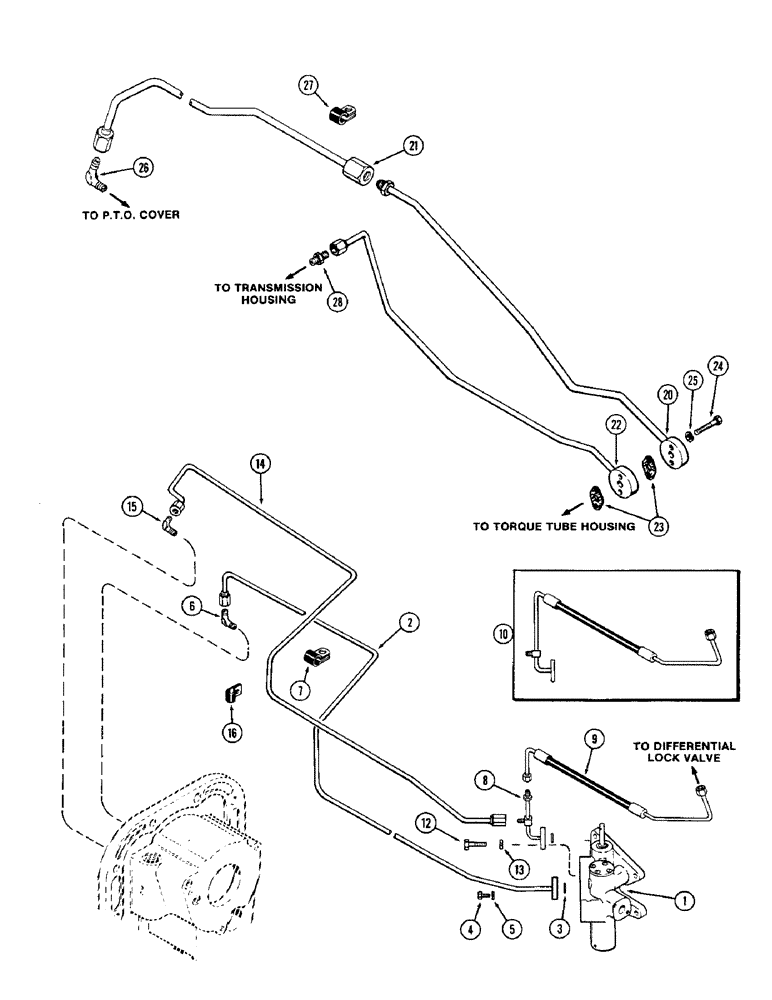

Запчасти Case IH 1370 (278) - P.T.O. HYDRAULIC LINES, FIRST USED P.I.N. 8811146 (06) - POWER TRAIN

1

REF

INSTRUCTION

VALVE ASSEMBLY - P.T.O. clutch and regulator (See Figure 264)

1шт.

2

A135713

TUBE

- valve to P.T.O. clutch

1шт.

3

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- (11/16 x 1/2 x 3/32")

1шт.

4

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

5

92-5

LOCK WASHER,5/16"

2шт.

6

218-1515

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, NPTF, LG

- 90 deg. (1/4" P.T. x 9/16" N.F.)

1шт.

7

49852

PTO SHAFT

- tube

1шт.

8

A147753

PIPE

TUBE ASSEMBLY - reg. valve to lock valve

1шт.

9

A147754

HOSE

- reg. valve to lock valve (A147753 replaces A147191)

1шт.

10

A147191

TUBE

- reg. valve to diff. lock valve (Replaces A135710)

1шт.

11

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- (3/8 x 9/16 x 3/32")

1шт.

12

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

2шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

A135711

TUBE

- reg. valve to P.T.O. brake

1шт.

15

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 deg. (1/4" P.T. x 7/16" N.F.)

1шт.

16

A20541

CLIP

CLAMP - tube

1шт.

20

A66142

TUBE

- P.T.O. lube (Front)

1шт.

21

A141695

TUBE

- P.T.O. lube (Rear)

1шт.

22

A66144

TUBE

- (C-1) Lube (First used transmission serial no. 10059747)

1шт.

22

A151889

TUBE

- (C-1) Lube (First used transmission serial no. 10059747)

1шт.

23

A66143

GASKET

- lube tubes

2шт.

24

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

25

92-5

LOCK WASHER,5/16"

2шт.

26

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 deg. (1/2" tube x 3/8" P.T.)

1шт.

27

49836

CLAMP

- tube

1шт.

28

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - (1/4" P.T. x 9/16" N.C.)

1шт.
