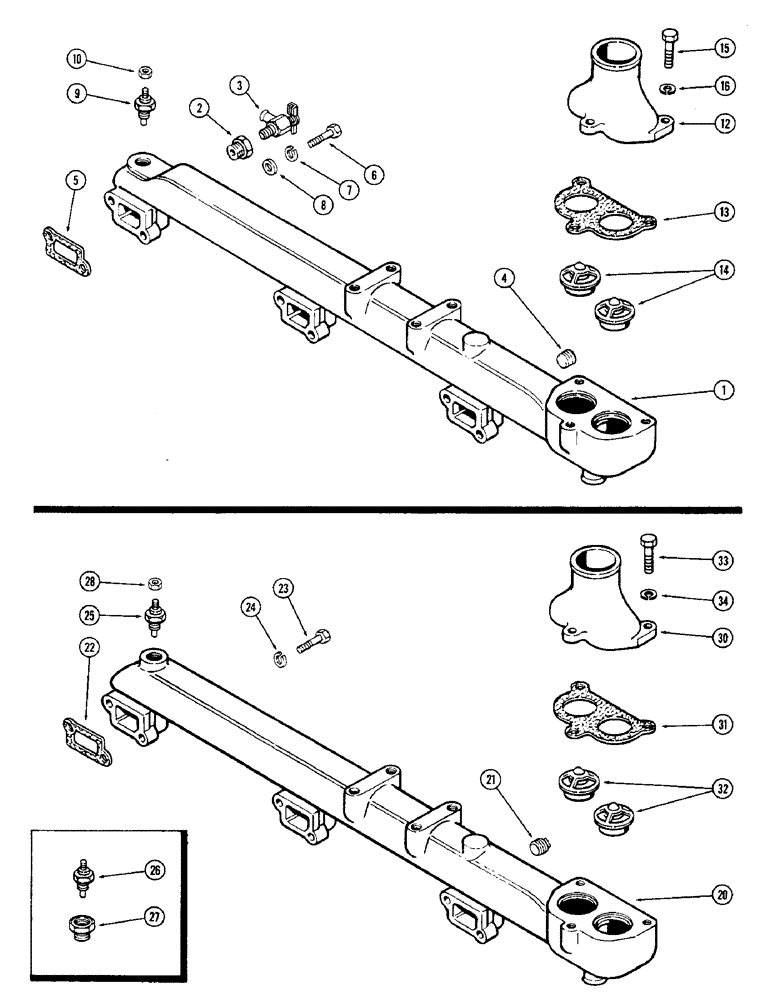

Запчасти Case IH 1370 (006) - WATER MANIFOLD AND THERMOSTAT, (504BDT) DIESEL ENGINE, ALUMINUM MANIFOLD (02) - ENGINE

A153152

MANIFOLD

KIT - water manifold (Replaces A58909 and A44088), Includes: Ref. 1 - 4

1шт.

1

A152742

MANIFOLD

- water (Order A153152)

1шт.

2

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2 x 3/8" P.T.

1шт.

3

A16764

VALVE

- water manifold shutoff

1шт.

4

221-844

PLUG,Hex Soc, 1/2"-14

- pipe, 1/2" P.T. hex. socket

1шт.

5

A58637

MANIFOLD GASKET

- water manifold

3шт.

6

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8 x 2" N.C. hex.

6шт.

7

92-6

LOCK WASHER,3/8"

6шт.

8

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

6шт.

9

A66733

TRANSMITTER

UNIT - sender, engine temp. (1/2" P.T.)

1шт.

10

193-1000

NUT,Keps, w/LW,#10-32

- Keps, #10-32 hex.

1шт.

12

A58638

HOUSING

- thermostat

1шт.

13

A58639

GASKET

- thermostat housing

1шт.

14

A57641

THERMOSTAT

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

16

92-6

LOCK WASHER,3/8"

3шт.

20

A58909

MANIFOLD

- water (Order A153152), cast iron

1шт.

21

221-845

PLUG,Hex Soc, 3/4"-14

- 3/4" hex. sckt. hd., pipe, cast iron manifold

2шт.

22

A58637

MANIFOLD GASKET

- water manifold, cast iron

3шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex., cast iron manifold

3шт.

23

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8 x 2" N.C. hex., Cast iron manifold

3шт.

24

92-6

LOCK WASHER,3/8"

cast iron manifold 3/8"

6шт.

25

A66733

TRANSMITTER

UNIT - sender, engine temp. (1/2" P.T.), cast iron manifold

1шт.

26

A61787

TRANSMITTER

UNIT - sender, engine temp. (3/8" P.T.) (Order A66733), cast iron manifold

1шт.

27

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2" to 3/8" P.T., cast iron manifold

1шт.

28

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex. Keps, cast iron manifold

1шт.

30

A58638

HOUSING

- thermostat, cast iron manifold

1шт.

31

A58639

GASKET

- thermostat housing, cast iron manifold

1шт.

32

A57641

THERMOSTAT

cast iron manifold

2шт.

33

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Cast iron manifold Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

34

92-6

LOCK WASHER,3/8"

cast iron manifold 3/8"

3шт.
