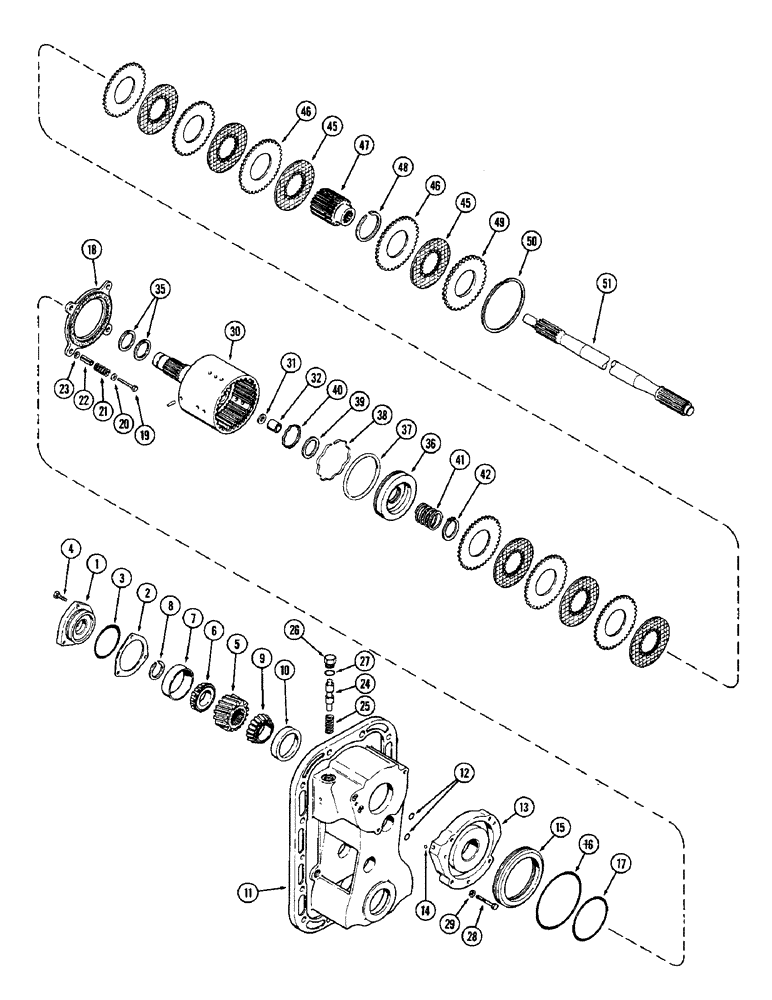

Запчасти Case IH 1370 (268) - P.T.O. CLUTCH AND BRAKE, FIRST USED P.I.N. 8811146 (06) - POWER TRAIN

1

A142590

COVER

- lube oil inlet

1шт.

2

A144020

SHIM

- cover (0.005")

1шт.

2

A144021

SHIM

- cover (0.007")

1шт.

2

A144022

SHIM

- cover (0.010")

1шт.

3

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- cover (3-1/4 x 3-1/2 x 1/8")

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

5

A138183

GEAR

- P.T.O. input

1шт.

6

A50048

ROLLER BEARING,40mm ID x 21.69mm W

CONE - bearing, outer (1-1/2" I.D.)

1шт.

7

T27784

CUP

- bearing, outer (3-1/2" O.D. x 27/32" wide)

1шт.

8

A144595

SNAP RING,#156, Ext

Ring, Snap, , brg #156, Ext

1шт.

9

A32764

ROLLER BEARING,1.875" ID x 1"

CONE - bearing, inner (1-7/8" I.D.)

1шт.

10

A32763

CUP

- bearing, inner (3-1/2" O.D. x 3/4" wide)

1шт.

11

REF

INSTRUCTION

HOUSING - P.T.O. (See Figure 266)

1шт.

12

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - oil port (19/64 x 7/16 x 1/16" sq.)

2шт.

13

A138176

CARRIER

- P.T.O. brake piston

1шт.

14

211-9

BALL,5/16" Dia

- oil hole (. steel) 5/16" Dia

1шт.

15

A150236

PISTON

- brake, P.T.O. (Replaces A142747)

1шт.

16

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

- (6-1/4 x 6-1/2 x 1/8")

1шт.

17

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

- (4-3/4 x 5 x 1/8")

1шт.

18

A142910

BRAKE

- P.T.O.

1шт.

19

26-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

- 5/16 x 2-1/4" N.C. hex.

4шт.

20

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

4шт.

21

A30083

VALVE SPRING

SPRING - return (1-1/2" free length)

4шт.

22

138-202

LOCK PIN,1/2" x 1 3/8", Slotted

Pin, 1/2" x 1 3/8", Slotted

4шт.

23

A148875

WASHER,8.2mm ID x 12.7mm OD x 0.86mm Thk

- (5/16 x 1/2 x 1/32")

4шт.

24

A136990

SPOOL

- brake

1шт.

25

A140971

SPRING

- spool return (1-3/4" free length)

1шт.

26

A142294

PLUG

- spool body

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug (3/4 x 5/8 x 3/32")

1шт.

28

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- 3/8 x 2-1/4" N.C. hex.

3шт.

29

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- bolt (27/64 x 3/4 x 1/32")

3шт.

30

A150675

CARRIER

ASSEMBLY - P.T.O. clutch, Includes: Ref. 31 and 32

1шт.

31

A63265

WASHER

- thrust, input shaft

1шт.

32

A64451

BUSHING,20.54mm ID x 25.41mm OD x 22.35mm L

- input shaft

1шт.

35

A59005

SEAL

RING - seal (2-7/32 x 2-5/16 x 3/32")

2шт.

36

A67155

PISTON

- P.T.O. clutch

1шт.

37

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

SEAL - piston, external

1шт.

38

G102094

SPRING

- external piston seal (Replaces A50626)

1шт.

39

A63258

SEAL

- piston, internal

1шт.

40

A63259

SPRING

- internal piston seal

1шт.

41

A63260

SPRING

- piston return (1-3/4" free length)

1шт.

45

A67130

PLATE

- clutch, friction

7шт.

46

A67156

PLATE

- clutch, steel

7шт.

47

A146020

HUB

- P.T.O. clutch

1шт.

48

A58217

SNAP RING,#275, 2.594, Ext

RING - snap, clutch hub

1шт.

49

A50643

PLATE

- clutch backup

1шт.

50

A50639

RING

- snap, backup plate retaining

1шт.

51

A152396

SHAFT

- P.T.O. input (Replaces A146022)

1шт.
