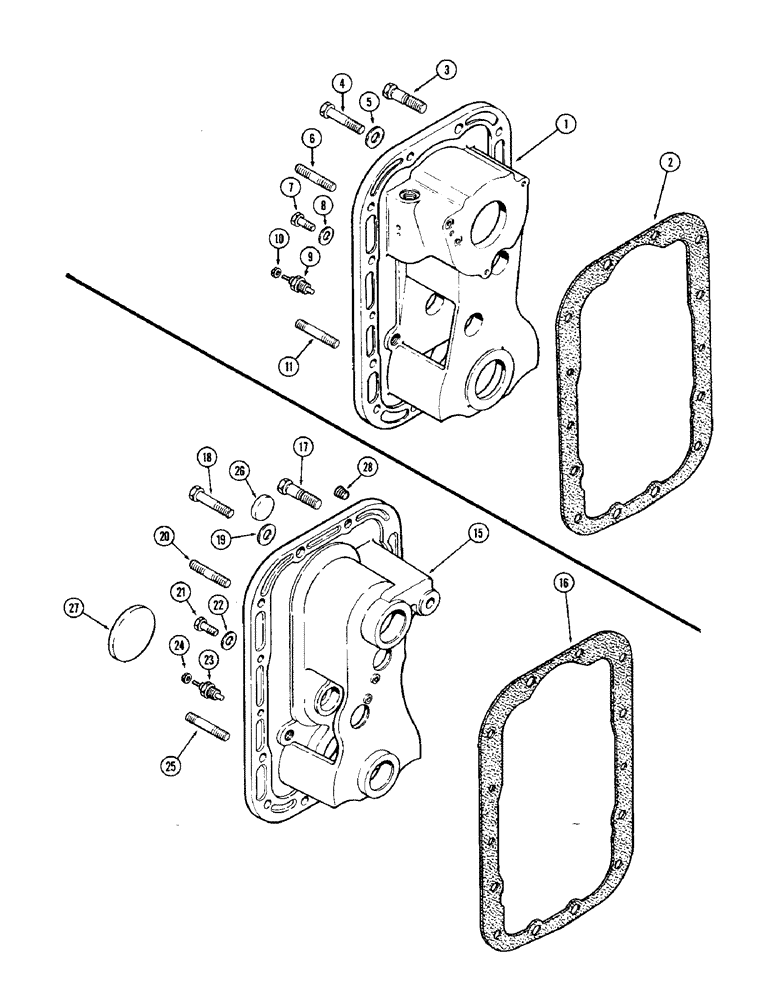

Запчасти Case IH 1370 (266) - P.T.O. HOUSING, FIRST USED P.I.N. 8811146 (06) - POWER TRAIN

1

A67158

HOUSING

ASSEMBLY - P.T.O.

1шт.

2

A63253

GASKET

-, Serial Range: housing-transmission

1шт.

3

A63255

STEP BOLT

BOLT - dowel, Serial Range: housing-transmission

1шт.

4

26-1034

BOLT,Hex, 5/8" - 11 x 2-1/8", Gr 8

- (5/8 x 2-1/8" N.C. hex.)

1шт.

5

A64303

WASHER

- (5/8 x 1-1/16 x 1/16")

1шт.

6

A63254

STUD

- housing to trans. (5/8" N.C. x 3-1/4")

2шт.

7

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

- (1/2 x 1-7/8" N.C. hex.)

2шт.

8

A150672

WASHER

- (17/32 x 7/8 x 1/8") (Replaces A39046)

2шт.

9

A21462

SENDER UNIT

SENDER - transmission oil temp

1шт.

10

193-1000

NUT,Keps, w/LW,#10-32

- (#10-32 Keps)

1шт.

11

A64109

STUD

- mounting, drawbar (5/8" - N.C. x 3-1/2")

6шт.

15

A66405

HOUSING

ASSEMBLY - P.T.O., Serial Range: -8811146

1шт.

16

A63253

GASKET

- housing to transmission, Serial Range: -8811146

1шт.

B17428

LOCTITE

ELIMINATOR - gasket, 2 oz. (50CC), Serial Range: -8811146

1шт.

17

A63255

STEP BOLT

BOLT - dowel, housing to transmission, Serial Range: -8811146

1шт.

18

26-1034

BOLT,Hex, 5/8" - 11 x 2-1/8", Gr 8

- (5/8 x 2-1/8" N.C. hex.), Serial Range: -8811146

1шт.

19

A64303

WASHER

- (5/8 x 1-1/16 x 1/16"), Serial Range: -8811146

1шт.

20

A63254

STUD

- housing to transmission (5/8" N.C. x 3-1/4"), Serial Range: -8811146

2шт.

21

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

- (1/2 x 1-7/8" N.C. hex.), Serial Range: -8811146

2шт.

22

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- (17/32 x 7/8 x 1/8"), Serial Range: -8811146

2шт.

23

A21462

SENDER UNIT

SENDER - transmission oil temp, Serial Range: -8811146

1шт.

24

193-1000

NUT,Keps, w/LW,#10-32

- (#10-32 Keps), Serial Range: -8811146

1шт.

25

A64109

STUD

- mounting, drawbar (5/8" N.C. x 3-1/2"), Serial Range: -8811146

6шт.

26

41-1628

PLUG,Cup, 1 3/4", Stainless

- cup (1-3/4" O.D.), Serial Range: -8811146

1шт.

27

A63091

PLUG,Cup, 3 7/8"

- cup (3-7/8" O.D.) (Used w/o P.T.O.), Serial Range: -8811146

2шт.

28

221-662

PLUG,Hex Hd, 1/4"-18

- upper left (1/4" P.T. hex. hd.) (w/o P.T.O.), Serial Range: -8811146

1шт.
