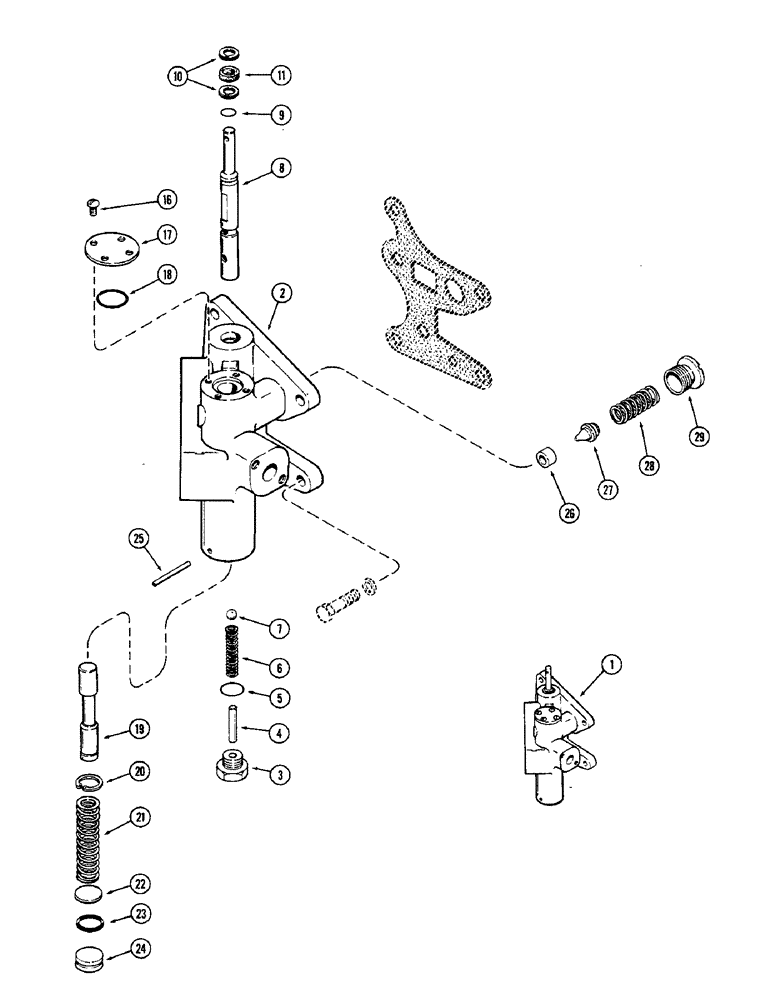

Запчасти Case IH 1370 (264) - A65672 REGULATOR VALVE (06) - POWER TRAIN

1

A65672

VALVE

ASSEMBLY - P.T.O. and clutch regulator, Includes: Ref. 2 - 29

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

A60282

PLUG

ASSEMBLY - P.T.O. spool, Includes: Ref. 4 and 5

1шт.

4

138-2028

PIN,3/16" x 1 1/4", Coiled

1шт.

6

A60281

SPRING

- modulating spool (2-1/8" free length)

1шт.

7

211-8

BALL,9/32" Dia

SPOOL - P.T.O. clutch modulating (Order A65672)

1шт.

9

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- (7/16 x 5/8 x 3/32")

1шт.

10

A60280

SNAP RING,#68, .743", Int, Spiral

RING - retaining, spool washer

2шт.

11

A60279

WASHER

- (5/32 x 11/32 x 3/16")

1шт.

16

164-522

SCREW,Btn Hd, #10 - 24 x 1/2"

- (#10 x 1/2" N.C. button hd. hex. socket) Cap to body

4шт.

17

A60277

CAP

- bore, modulating spool

1шт.

18

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- bore cap (3/4 x 15/16 x 3/32")

1шт.

19

NSS

NOT SOLD SEPARAT

SPOOL - regulating (Order A65672)

1шт.

20

A60273

SNAP RING,#62, Ext

Ring, Snap, , regulating spool #62, Ext

1шт.

21

A60274

SPRING

- regulating spool (2-7/8" free length)

1шт.

22

A60275

SHIM,.0164" Thk

Spool spring .0164" Thk

1шт.

23

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- spool plug (11/16 x 3/4 x 3/32")

1шт.

24

A60276

PLUG

- spool

1шт.

25

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN - roll (3/16 x 1-1/4") Plug retaining

1шт.

26

A60686

SEAT

- relief valve

1шт.

27

A60687

VALVE POPPET

POPPET - relief valve

1шт.

28

A60286

SPRING

- relief valve (2-3/16" free length)

1шт.

29

A63356

PLUG

SLEEVE - regulating clutch spring

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (1/2 x 21/32 x 3/32")

1шт.
