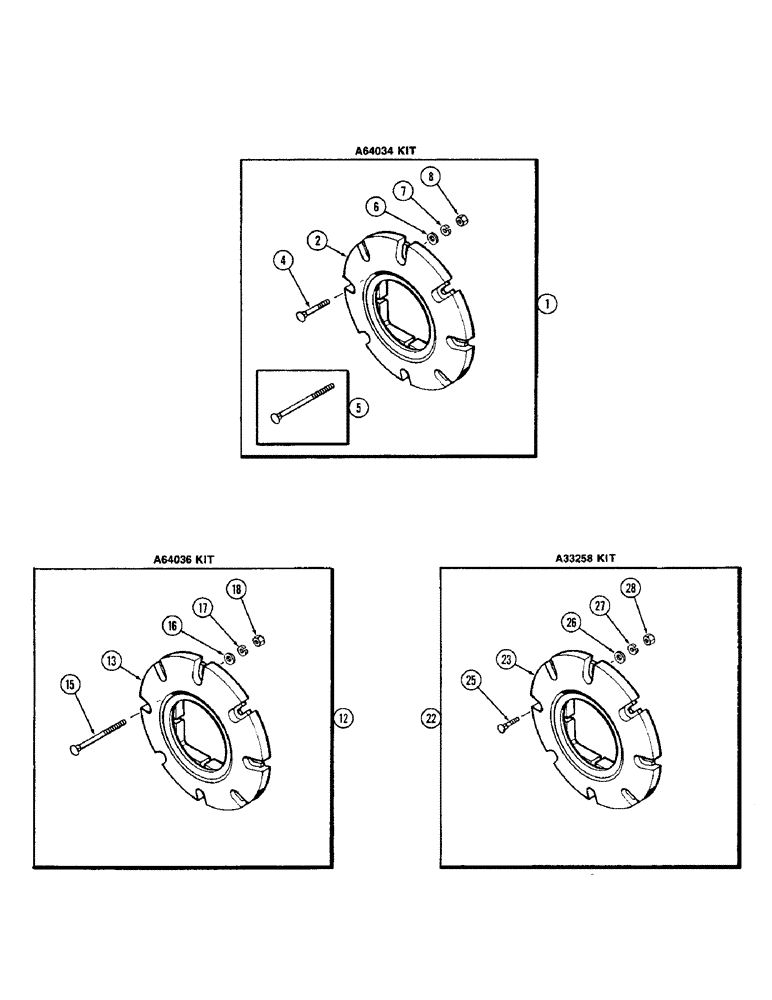

Запчасти Case IH 1370 (242) - REAR WHEEL WEIGHTS (06) - POWER TRAIN

1

A64034

KIT - rear wheel weight (Starter) (For 38-42" cast wheels) (Machinery item), Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

WEIGHT - 140 lbs. (Order A64034)

2шт.

4

11-1092

BOLT - (5/8 x 5-3/4" N.C. rd. hd., square neck) (Used with wheels and weights dished out)

8шт.

5

433-10112

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 7", Gr 5

BOLT - (5/8 x 7" N.C. rd. hd., square neck) (Used with wheels and weights dished in)

8шт.

6

95-10

WASHER,5/8"

- ( plain) 5/8"

8шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

8

25-1010

NUT,5/8"-11, G5

8шт.

12

A64036

KIT - rear wheel 1st weight (For 32" and 34" cast wheels) (Machinery item), Includes: Ref. 13 - 18

1шт.

13

NSS

NOT SOLD SEPARAT

WEIGHT - 140 lbs. (Order A64036)

2шт.

15

433-1096

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 6", Gr 5

BOLT - (5/8 x 6" N.C. rd. hd., square neck)

8шт.

15

111-624

CARRIAGE BOLT,Short NK, 5/8"-11 x 6 1/2", G2

BOLT - (5/8 x 6-1/2" N.C. rd. hd. sq. neck)

8шт.

16

95-10

WASHER,5/8"

- ( plain) 5/8"

8шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

18

25-1010

NUT,5/8"-11, G5

8шт.

22

A33258

BOLT

KIT - rear wheel weight (Additional) (For 32", 34", 38" and 42" wheels) (Machinery item), Includes: Ref. 23 - 28

1шт.

23

NSS

NOT SOLD SEPARAT

WEIGHT - 140 lbs. (Order A33258)

2шт.

25

411-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT - (5/8 x 4" N.C. rd. hd., square neck)

8шт.

26

95-10

WASHER,5/8"

- ( plain) 5/8"

8шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

28

25-1010

NUT,5/8"-11, G5

8шт.
