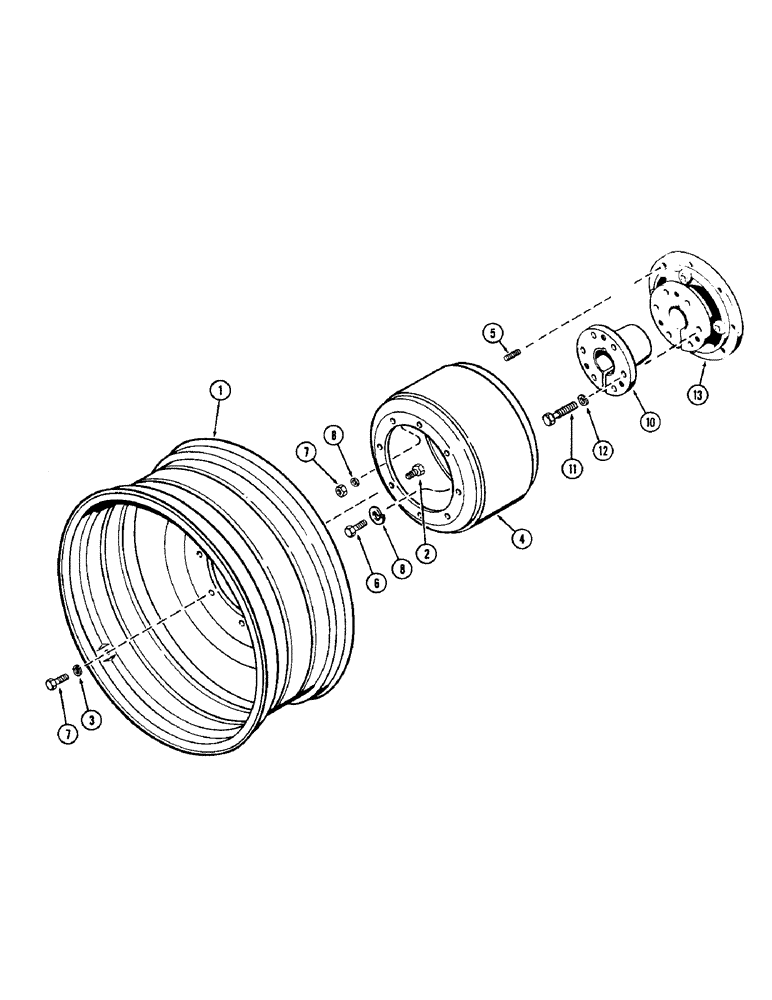

Запчасти Case IH 1370 (240) - OUTER DUAL WHEEL SPACER, STEEL WHEEL, WITH 3-1/2 INCH DIAMETER AXLE (06) - POWER TRAIN

1

REF

INSTRUCTION

WHEEL - steel (For 18.4 x 38 tire) (See Figure 234)

2шт.

1

REF

INSTRUCTION

WHEEL - sttel (For 20.8 x 38 tire) (See Figure 234)

2шт.

2

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- 5/8 x 1-3/4" N.C. hex. (Outer wheel to spacer)

16шт.

3

A64303

WASHER

- hardened (5/8 x 1-1/16 x 1/8")

16шт.

4

A145968

SPACER

- outer wheel (Replaces A65475)

2шт.

5

A145060

STUD

- hub (5/8" N.C. x 4") (See note)

4шт.

6

26-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

- 5/8 x 2" N.C. hex. (See note)

12шт.

7

129-563

NUT,5/8"-11, G8

- 5/8" N.C. hex.

20шт.

8

A64303

WASHER

- hardened (5/8 x 1-1/16 x 1/16")

16шт.

10

A59792

HUB

BUSHING - hub (w/5/8" wide keyway)

2шт.

11

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub (3/4 x 4-1/2" N.C.)

12шт.

12

D31328

WASHER

- (49/64 x 1-5/8 x 1/4")

12шт.

13

A59791

HUB

- universal

2шт.
