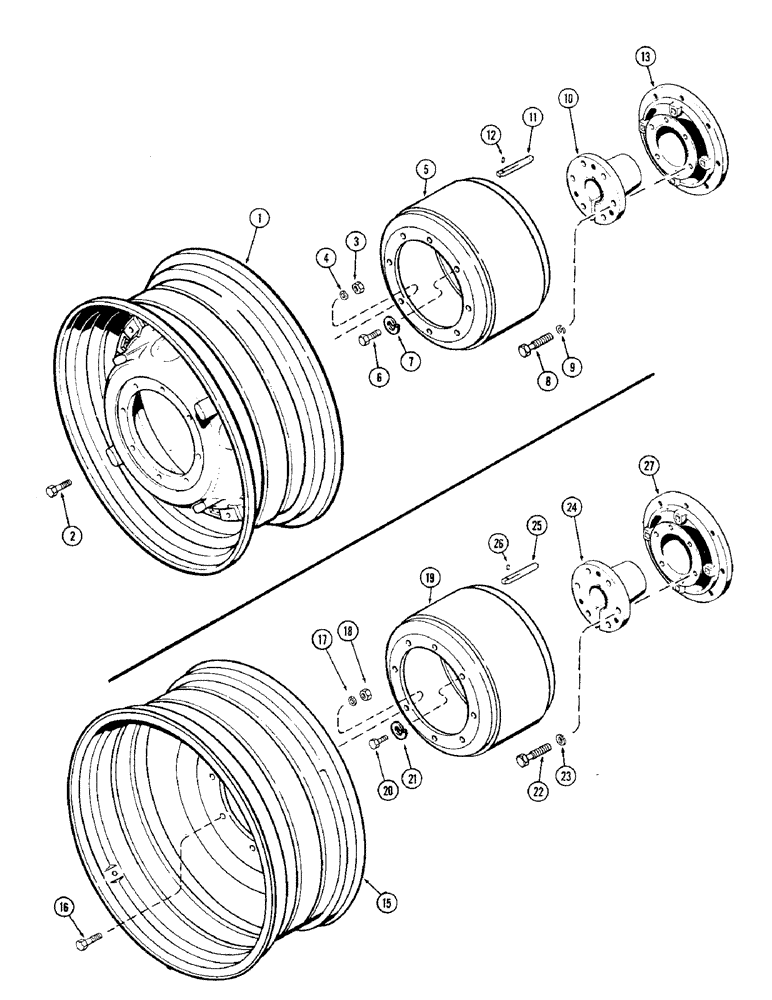

Запчасти Case IH 1370 (238) - OUTER DUAL WHEEL SPACER, CAST WHEEL, WITH 3-7/8 INCH DIAMETER AXLE (06) - POWER TRAIN

1

REF

INSTRUCTION

WHEEL ASSEMBLY - w/38" rim (See Figure 232)

2шт.

1

REF

INSTRUCTION

WHEEL ASSEMBLY - w/42" rim (See Figure 236)

2шт.

2

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- wheel to spacer (5/8 x 2-3/4" N.C. hex.)

16шт.

3

A64303

WASHER

- hardened (5/8 x 1-1/16 x 1/16")

16шт.

4

129-563

NUT,5/8"-11, G8

- 5/8" N.C. hex.

16шт.

5

A145968

SPACER

- outer dual wheel (Replaces A65475)

2шт.

6

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

16шт.

7

A147095

WASHER

- wide bearing split (11/16 x 1-5/16 x 3/16")

16шт.

8

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hub bushing (3/4 x 4-1/2" N.C.)

12шт.

9

D31328

WASHER

- (49/64 x 1-5/8 x 1/4")

12шт.

10

A63805

BUSHING

- hub (w/3/4" wide keyway)

2шт.

11

A63219

KEY

- axle (3/4" wide x 6" lg.)

2шт.

12

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

13

A63804

HUB

- tapered

2шт.

15

REF

INSTRUCTION

WHEEL - steel (For 18.4 x 38 tire) (See Figure 234), with 3-7/8" diameter axle

2шт.

15

REF

INSTRUCTION

WHEEL - steel (For 20.8 x 38 tire) (See Figure 234), with 3-7/8" diameter axle

2шт.

16

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- 5/8 x 1-3/4" N.C. hex., steel wheel with 3-7/8" diameter axle

16шт.

17

A147095

WASHER

- wide bearing split (11/16 x 1-5/16 x 3/16"), steel wheel with 3-7/8" diameter axle

16шт.

18

129-563

NUT,5/8"-11, G8

- 5/8" N.C. hex., steel wheel with 3-7/8" diameter axle

16шт.

19

A145968

SPACER

- outer dual wheel (Replaces A65475), steel, with 3-7/8" diameter axle

2шт.

20

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Steel wheel with 3-7/8" diameter axle Hex, 5/8"-11 x 1 3/4", G5, Full Thd

16шт.

21

A64303

WASHER

- hardened (5/8 x 1-1/16 x 1/16"), steel wheel with 3-7/8" diameter axle

16шт.

22

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hub bushing (3/4 x 4-1/2" N.C.), steel wheel with 3-7/8" diameter axle

12шт.

23

D31328

WASHER

- (49/64 x 1-5/8 x 1/4"), steel wheel with 3-7/8" diameter axle

12шт.

24

A63805

BUSHING

- hub (w/3/4" wide keyway), steel wheel with 3-7/8" diameter axle

2шт.

25

A63219

KEY

- axle (3/4" wide x 6" lg.), steel wheel with 3-7/8" diameter axle

2шт.

26

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Steel wheel with 3-7/8" diameter axle 1/4" x 1/2", Slotted

2шт.

27

A63804

HUB

- tapered, steel wheel with 3-7/8" diameter axle

2шт.
