(236) - CAST DUAL REAR WHEELS, WITH 42 INCH RIMS, USED WITH 3-1/2 INCH DIAMETER AXLE

Запчасти Case IH 1370 (236) - CAST DUAL REAR WHEELS, WITH 42 INCH RIMS, USED WITH 3-1/2 INCH DIAMETER AXLE (06) - POWER TRAIN

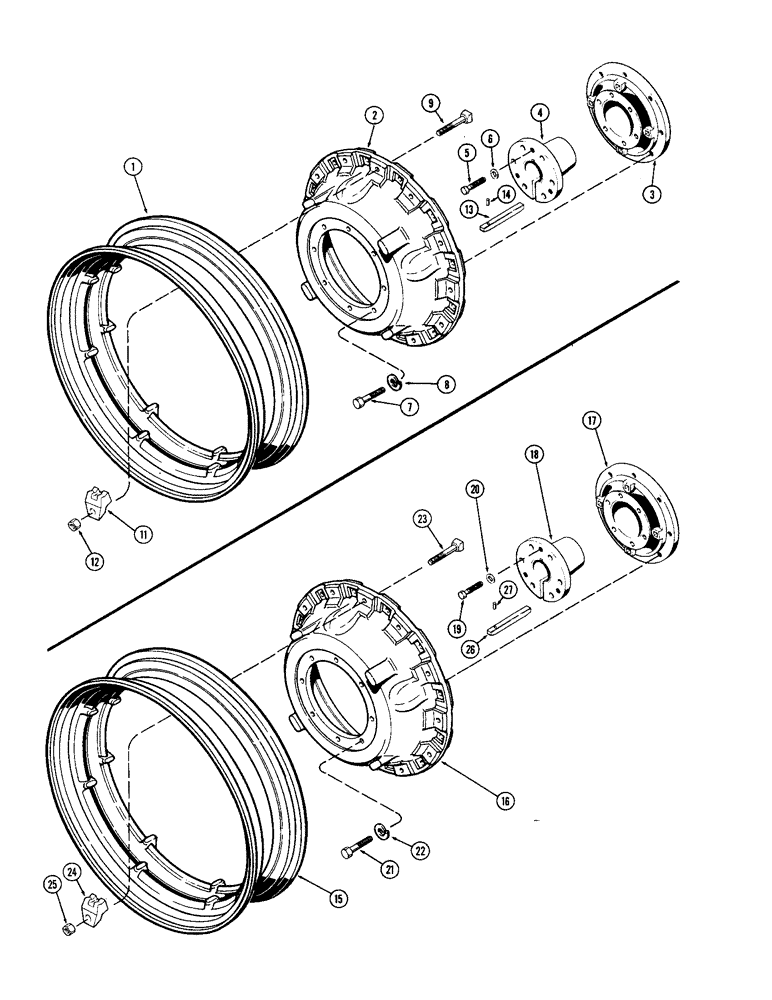

Схема запчастей Case IH 1370 - (236) - CAST DUAL REAR WHEELS, WITH 42 INCH RIMS, USED WITH 3-1/2 INCH DIAMETER AXLE (06) - POWER TRAIN
18
17
13
14
27
1
16
9
5
6
4
25
20
12
19
23
7
3
11
26
24
8
15
21
22
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A61935

RIM

- rear (Use w/12.4 x 42 tire)

4шт.

2

A65417

WHEEL

- rear, cast

4шт.

3

A59791

HUB

- universal (3-1/2" taper)

4шт.

4

A59792

HUB

BUSHING - rear wheel hub (w/5/8" wide keyway)

4шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - (3/4 x 4-1/2" N.C.)

24шт.

6

D31328

WASHER

- (49/64 x 1-5/8 x 1/4")

24шт.

7

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex. (5/8 x 2-3/4" N.C. gr. 8)

32шт.

8

A147095

WASHER

- wide bearing split (11/16 x 1-5/16 x 3/16")

32шт.

9

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- (3/4 x 3-1/2" N.C. square head)

48шт.

11

A61934

CLAMP

- double ramp

48шт.

12

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex. (3/4" N.C.)

48шт.

13

A34890

BUCKET TOOTH KEY

KEY - axle (5/8" wide x 6" lg.)

4шт.

14

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

4шт.

15

A61935

RIM

- rear (Use w/12.4 x 42 tire), use with 3-7/8" diameter axle

4шт.

16

A65417

WHEEL

- rear, cast, used with 3-7/8" diameter axle

4шт.

17

A63804

HUB

- universal (3-7/8" taper), used with 3-7/8" diameter axle

4шт.

18

A63805

BUSHING

- rear wheel hub (w/3/4" wide keyway), used with 3-7/8" diameter axle

4шт.

19

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - (3/4 x 4-1/2" N.C.), used with 3-7/8" diameter axle

24шт.

20

D31328

WASHER

- (49/64 x 1-5/8 x 1/4"), used with 3-7/8" diameter axle

24шт.

21

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex. (5/8 x 2-3/4" N.C. gr. 8), used with 3-7/8" diameter axle

32шт.

22

A147095

WASHER

- wide bearing split (11/16 x 1-5/16 x 3/16"), used with 3-7/8" diameter axle

32шт.

23

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- (3/4 x 3-1/2" N.C. square head), used with 3-7/8" diameter axle

48шт.

24

A61934

CLAMP

- double ramp, used with 3-7/8" diameter axle

48шт.

25

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex. (3/4" N.C.), used with 3-7/8' diameter axle

48шт.

26

A63219

KEY

- axle (3/4" wide x 6" lg.), used with 3-7/8" diameter axle

4шт.

27

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Used with 3-7/8" diameter axle 1/4" x 1/2", Slotted

4шт.
