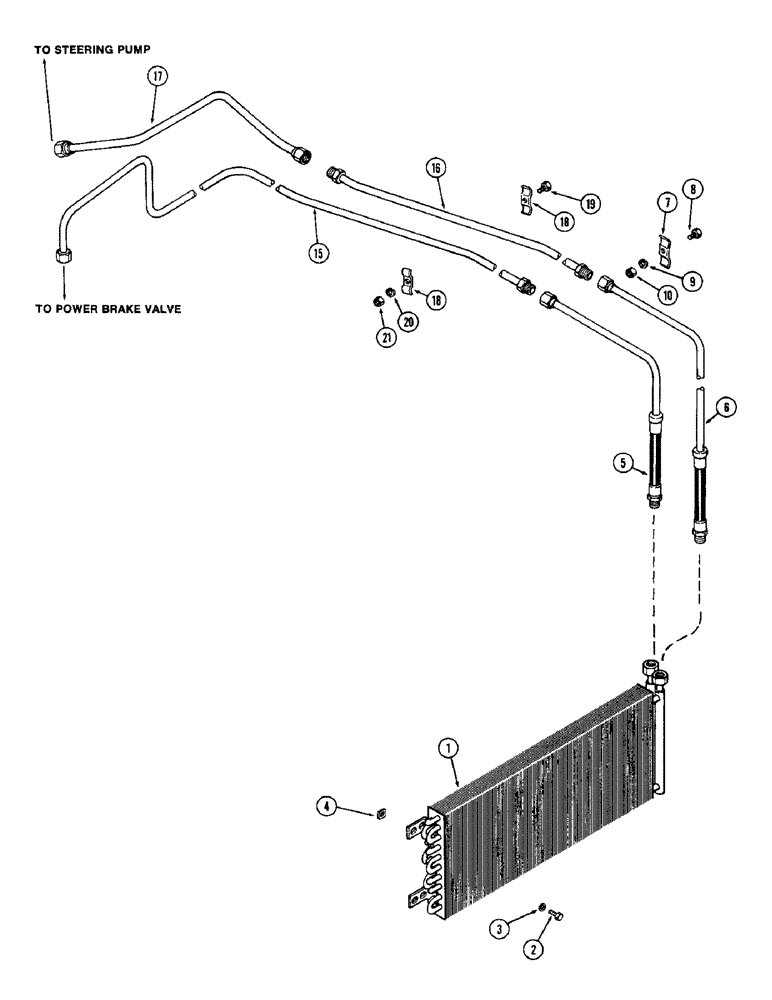

Запчасти Case IH 1370 (004) - OIL COOLER, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A147528

COOLER

- transmission oil (Replaces A139866 and A147154)

1шт.

2

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

131-133

NUT,Ret, 3/8"-16

Speed grip Ret, 3/8"-16

4шт.

5

A145876

TUBE

- outlet, oil cooler (Replaces A63652)

1шт.

6

A145875

HOSE

TUBE - inlet, oil cooler (Replaces A64919)

1шт.

7

A63323

CLAMP

- tube

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

92-5

LOCK WASHER,5/16"

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

15

A63656

TUBE - oil return

1шт.

16

A63655

TUBE

- oil cooler inlet, center section

1шт.

17

A63654

TUBE

- steering pump to inlet tube

1шт.

18

A63323

CLAMP

- tube

2шт.

19

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

20

92-5

LOCK WASHER,5/16"

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

A58831

ADAPTER

for mounting the oil cooler and filter

1шт.
