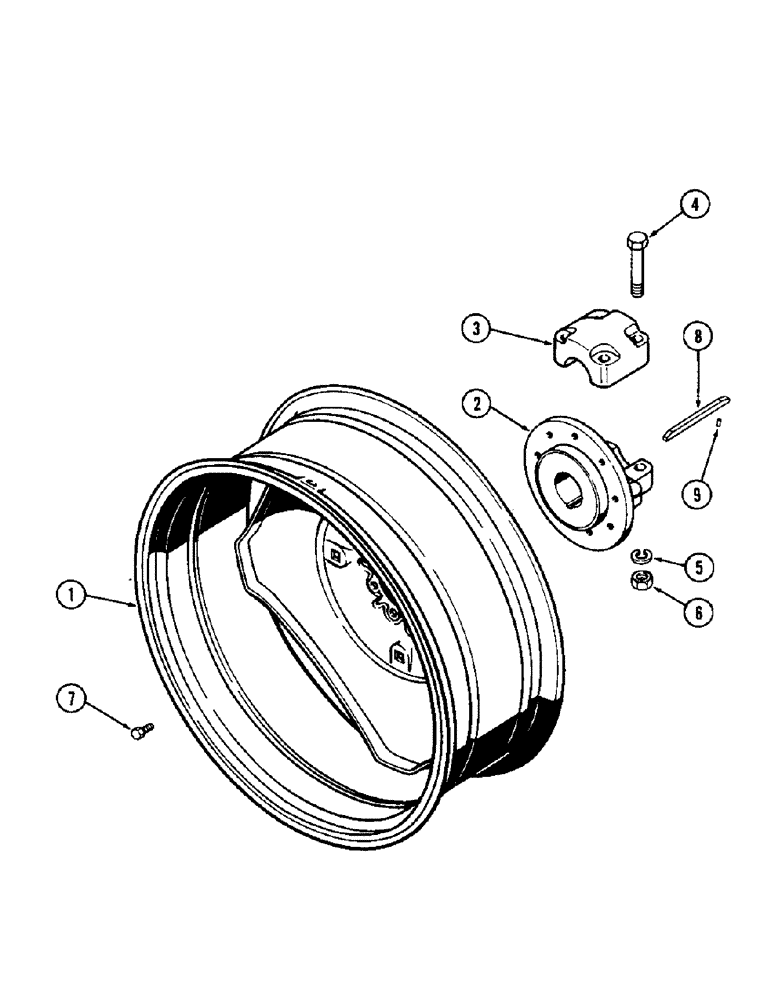

Запчасти Case IH 1370 (230) - 38 INCH STAMPED DUAL REAR WHEELS, USED WITH 3-1/2 INCH DIAMETER AXLE SHAFT (06) - POWER TRAIN

1

A34839

WHEEL

- rear (Use w/16.9 x 38 tire)

4шт.

1

A62990

WHEEL

- rear (Use w/18.4 x 38 tire)

4шт.

A62565

HUB

ASSEMBLY - rear wheel, Includes: Ref. 2 - 6

4шт.

2

NSS

NOT SOLD SEPARAT

HUB - (Order A62565)

1шт.

3

A60627

CAP

- rear wheel hub

1шт.

4

14-1496

BOLT,Hex, 7/8" - 14 x 6", Gr 5

- (7/8 x 6" N.F. hex.)

4шт.

5

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

6

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.)

4шт.

7

A62567

WHEEL BOLT

BOLT - rear, Serial Range: wheel-hub

36шт.

8

A34890

BUCKET TOOTH KEY

KEY -, Serial Range: hub-axle

4шт.

9

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

4шт.
