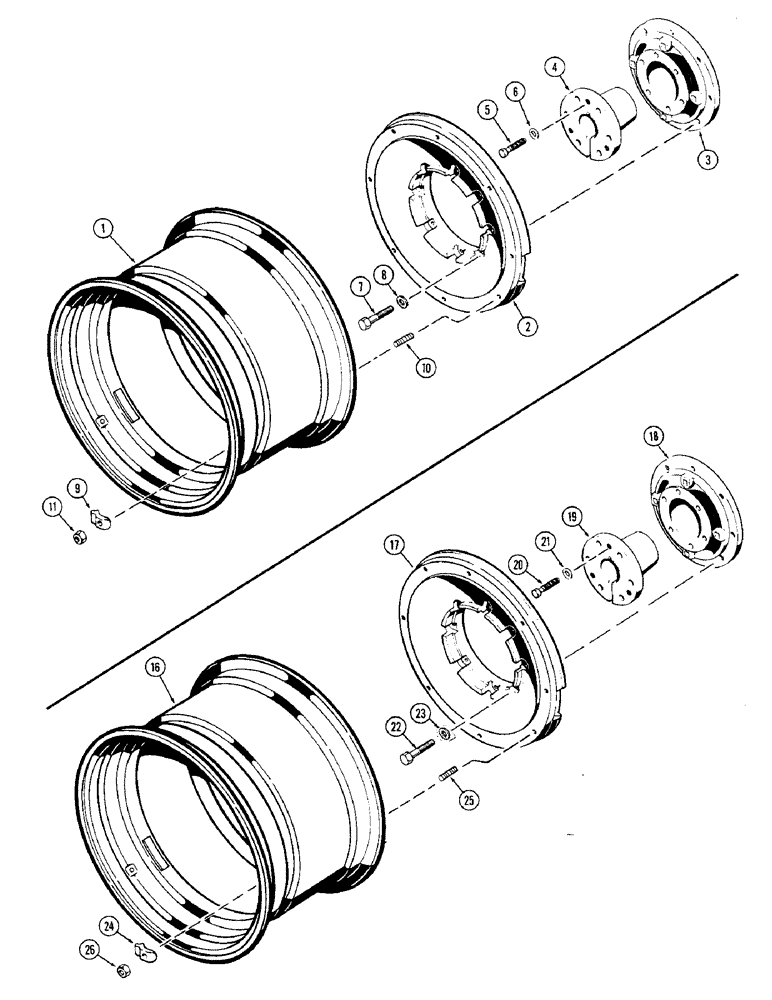

Запчасти Case IH 1370 (218) - CAST REAR WHEELS WITH 32 INCH RIMS, USED WITH 3-1/2 INCH DIAMETER AXLE (06) - POWER TRAIN

1

A63807

RIM

- rear wheel (Used w/24.5-32 tire)

2шт.

2

A63806

WHEEL

- rear

2шт.

3

A59791

HUB

- universal (3-1/2" tapered bushing)

2шт.

4

A59792

HUB

BUSHING - (3-1/2" tapered)

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - (3/4 x 4-1/2" N.C. hex.) (Special)

12шт.

6

D31328

WASHER

- (49/64 x 1-5/8 x 1/4") (Special)

12шт.

7

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- (5/8 x 2-1/4" N.C. hex. gr. 8)

16шт.

8

A64303

WASHER

- (41/64 x 1-1/16 x 1/16")

16шт.

9

F62001

CLAMP

- rear wheel rim

16шт.

10

A60047

STUD

- rear wheel rim (5/8" N.C. x 2-7/16")

16шт.

11

A27183

NUT

- stud, rear wheel rim (5/8" N.C. hex.)

16шт.

16

A63807

RIM

- rear wheel (Use w/24.5-32 tire), used 3-7/8" diameter axle

2шт.

17

A63806

WHEEL

- rear, used with 3-7/8" diameter axle

2шт.

18

A63804

HUB

- universal, used with 3-7/8" diameter axle

2шт.

19

A63805

BUSHING

- rear wheel hub, used with 3-7/8" diameter axle

2шт.

20

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - (3/4 x 4-1/2" N.C. hex.), used with 3-7/8" diameter axle

2шт.

21

D31328

WASHER

- plain (49/64 x 1-5/8 x 1/4"), used with 3-7/8" diameter axle

12шт.

22

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- (5/8 x 2-1/4" N.C. hex. gr. 8), used with 3-7/8" diameter axle

16шт.

23

A64303

WASHER

- (41/64 x 1-1/16 x 1/16"), used with 3-7/8" diameter axle

16шт.

24

F62001

CLAMP

- rear wheel rim, used with 3-7/8" diameter axle

16шт.

25

A60047

STUD

- rear wheel rim (5/8" N.C. x 2-7/16"), used with 3-7/8" diameter axle

16шт.

26

A27183

NUT

- stud, rear wheel rim (5/8" N.C. hex.), used with 3-7/8" diameter axle

16шт.
