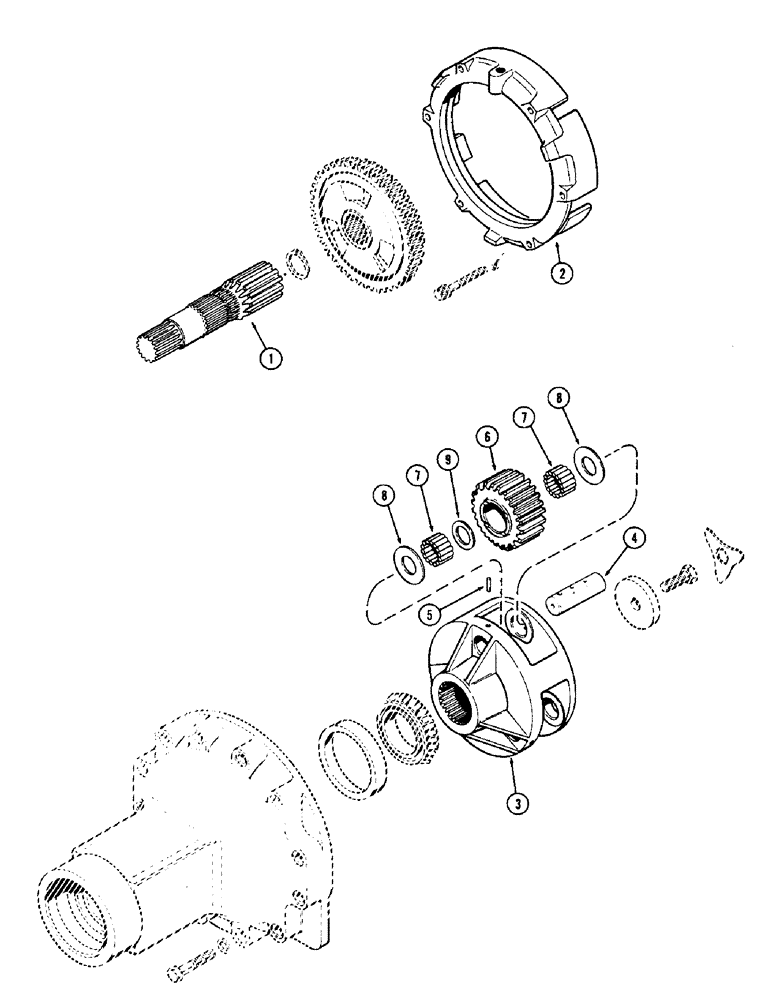

Запчасти Case IH 1370 (216) - REAR AXLE PLANETARY CONVERSION KIT (06) - POWER TRAIN

A67338

KIT

- conversion, rear axle planetary, A67338 kit can be used on tractors with transmission to convert to heavier rear axle planet gears., Includes: Ref. 1 - 9, Serial Range: -10032467

1шт.

1

A148020

SHAFT

- differential (See Figure 196)

2шт.

2

A148019

CYLINDER

- brake support (See Figure 196)

2шт.

3

A148018

CARRIER

- planet gear (See Figures 208 and 212)

2шт.

4

A67153

PIN

- planet gear (1-21/32" dia.) (See Figures 208 and 212)

6шт.

5

138-2066

PIN,3/8" x 1 1/2", Coiled

(See Figures 208 and 212) 3/8" x 1 1/2", Coiled

6шт.

6

A153937

GEAR

- planet (See Figures 208 and 212) (Replaces A150011 and A153220)

6шт.

7

A45106

ROLLER BEARING

KIT - roller bearing (Includes 38 roller bearings)

6шт.

8

A67116

WASHER

- thrust, planet gear (See Figures 208 and 212) (3.0" O.D.)

12шт.

9

A67117

SPACER

- roller bearing (See Figures 208 and 212) (2.290 O.D.)

6шт.
