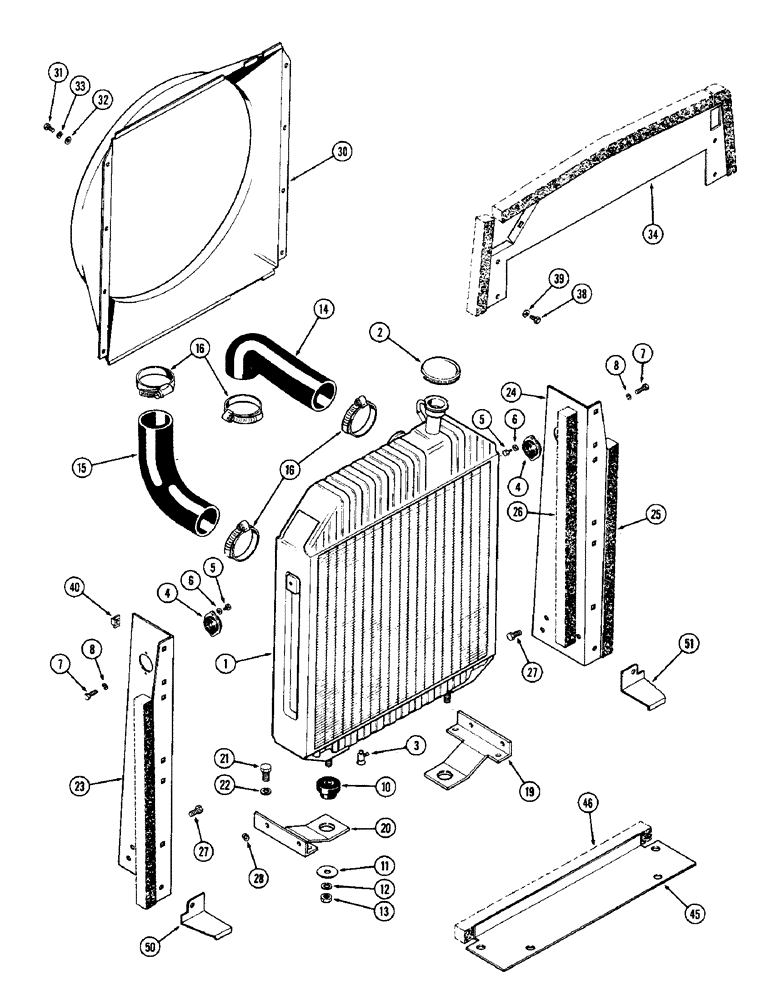

Запчасти Case IH 1370 (002) - RADIATOR AND ATTACHING PARTS, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A66330

RADIATOR

1шт.

2

A141846

CAP

Radiator (10 PSI) (1st used P.I.N. 8808749)

1шт.

2

A61784

CAP

Radiator (14 PSI), Serial Range: -8808749

1шт.

3

A23656

COCK, DRAIN

VALVE - radiator

1шт.

4

A64069

MOUNTING PARTS

Radiator support

2шт.

5

1871303

SCREW - #6 x 3/8" hex. hd. self tap

4шт.

6

192-5

LOCK WASHER,#6

4шт.

7

13-426

BOLT,Hex, 1/4" - 20 x 1-5/8", Gr 5

2шт.

8

92-4

LOCK WASHER,1/4"

2шт.

10

A59863

MOUNTING PARTS

Center bonded

2шт.

11

51200247

WASHER

Snubber, bonded mount (9/16 x 1-3/4 x 9/64"), Reverse Idler Gear

2шт.

12

192-163

LOCK WASHER,1/2"

2шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

14

A63727

LARGE HOSE,2.50" ID x 10.90", SAE 20R4 CLASS D2

HOSE,LARGE Inlet

1шт.

15

A145619

RADIATOR HOSE,2.62" ID x 8.40", SAE 20R4

Radiator Outlet (Replaces A63728)

1шт.

16

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

4шт.

19

A65099

SPARE PART Radiator support, LH

1шт.

20

A65098

BRACKET

Radiator support, RH

1шт.

21

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

A63716

SUPPORT

ASSY - radiator side, RH, Incl. Refs. 25 and 26

1шт.

24

A63717

SUPPORT

ASSY - radiator side, LH

1шт.

25

A135898

SEAL

SEAL - radiator, outside (1-5/8" sq. x 25-13/64")

1шт.

26

A63721

SEAL

Radiator, inside (1-1/4" sq. x 22-1/2") To be attached with adhesive 345-22.

1шт.

27

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

4шт.

28

92-6

LOCK WASHER,3/8"

4шт.

30

A141487

GUARD

SHROUD - fan (Replaces A63726)

1шт.

31

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

32

195-515

WASHER,#12

1/4 x 1/2 x 1/16"

8шт.

33

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

8шт.

34

REF

INSTRUCTION

BAFFLE ASSY - radiator, top (See Figure 14)

1шт.

38

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5шт.

39

92-5

LOCK WASHER,5/16"

5шт.

40

1502286C2

NUT,Floating Cage, 5/16"-18

Tinnerman

5шт.

45

A63711

BAFFLE

ASSY - radiator lower, Incl. Ref. 46

1шт.

46

A63713

SEAL

Radiator, lower (1-1/4" sq. x 23-1/2") To be attached with adhesive 345-22

1шт.

50

A63870

BAFFLE

Radiator lower, RH

1шт.

51

A63871

BAFFLE

Radiator lower, LH

1шт.
