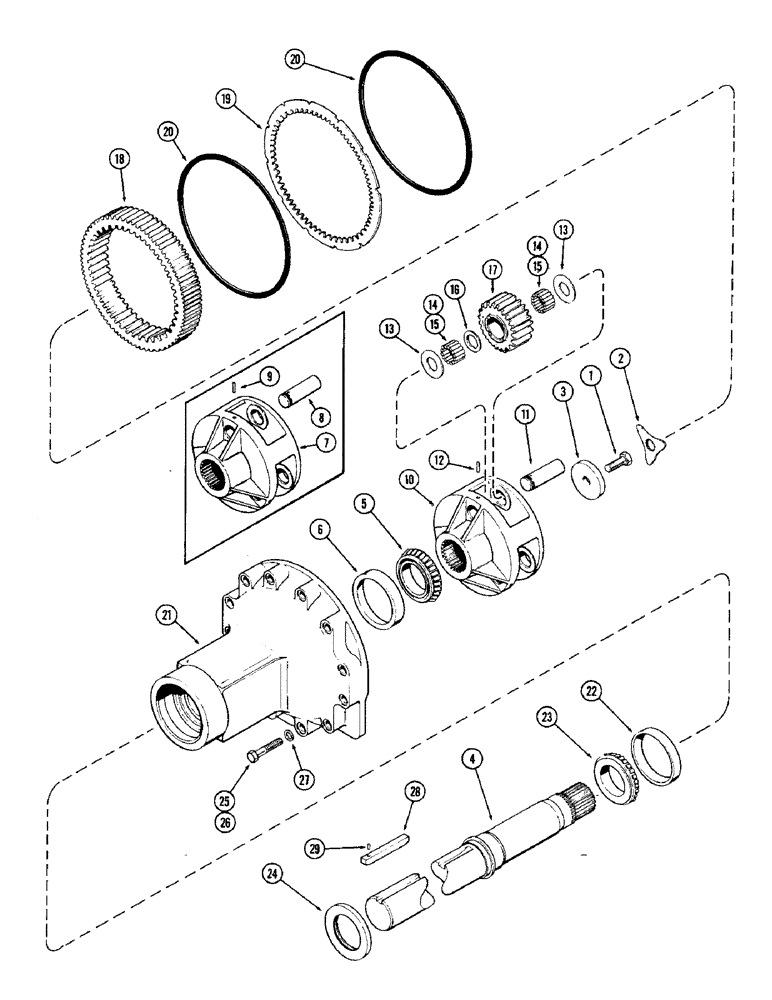

Запчасти Case IH 1370 (214) - REAR AXLE HOUSING AND PLANET GEARS, 3-7/8" DIAMETER AXLE SHAFT, USED PRIOR TO TRANS. S/N 10032467 (06) - POWER TRAIN

1

26-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 8

- (7/8 x 2-1/4" N.C. hex.) Retaining plate to shaft

2шт.

2

A63221

PLATE

- bearing lock

2шт.

3

A63220

PLATE

- retaining, rear axle

2шт.

4

A63213

SHAFT

- rear axle (3-7/8" dia. x 45-3/4" long)

2шт.

5

A63216

ROLLER BEARING,89.98mm ID x 44mm W

CONE - bearing, axle shaft (3-1/2" I.D. x 1-3/4" wide)

2шт.

6

A63214

CUP

- bearing, axle shaft (6" O.D. x 1-3/8" wide)

2шт.

7

A63223

CARRIER

- planet gear (w/1/4" pin hole) to trans. (Order A66506 and 3-A44773), Serial Range: -2418464

2шт.

8

A66059

PIN

- planet gear (w/1/4" hole)to trans. (Order A44773), Serial Range: -2418464

6шт.

9

138-2005

PIN,1/4" x 1", Coiled

to trans. 1/4" x 1", Coiled, Serial Range: -2418464

6шт.

10

A66506

CARRIER

- planet gear (w/3/8" pin hole) (1st usd trans. ser. no. 2418464)

2шт.

A44773

KIT

- pin replacement (Includes pin and 138-2006), Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

PIN - planet gear (w/3/8" hole) (1-9/32" dia. x 4-9/16" long)

1шт.

12

138-2066

PIN,3/8" x 1 1/2", Coiled

1шт.

13

A63228

WASHER

- planet pin roller (1-5/8 x 3 x 1/32")

12шт.

14

A43664

KIT

- planet gear roller, Includes: Ref. 15

6шт.

15

NSS

NOT SOLD SEPARAT

BEARING - roller, planet gear

38шт.

16

A63227

SPACER

- roller bearing separator (1-21/32 x 2-7/32 x 1/32")

6шт.

17

A65322

GEAR

- planet, rear axle (2-7/32" I.D. x 2-5/8" wide)

6шт.

18

A63229

GEAR

- planetary ring (Order A151934)

2шт.

19

A63222

PLATE

- torque reaction, axle hsg. to trans. case

2шт.

20

A63230

SEAL,393.7mm ID x 403.86mm OD x 6.73mm Thk

- rear axle housing

4шт.

21

REF

INSTRUCTION

HOUSING - rear axle (See Figure 192)

2шт.

22

A63215

CUP

- outer bearing, axle shaft (6-5/16" O.D. x 1-1/4" wide)

2шт.

23

A63217

ROLLER BEARING,100 mm ID x 160 mm OD x 41.20 mm

CONE - outer bearing, axle shaft (3-15/16 I.D. x 1-5/8" wide)

2шт.

24

A63218

OIL SEAL

- oil, axle shaft (4" I.D. x 1/2" wide)

2шт.

25

26-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- (5/8" x 4-1/2" N.C. hex.)

18шт.

26

26-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 8

- (5/8" x 4-3/4" N.C. hex.)

6шт.

27

A64303

WASHER

- hardened steel

24шт.

28

A63219

KEY

- wheel to axle shaft (3/4" sq. x 6" long)

2шт.

29

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Shaft key 1/4" x 1/2", Slotted

2шт.
