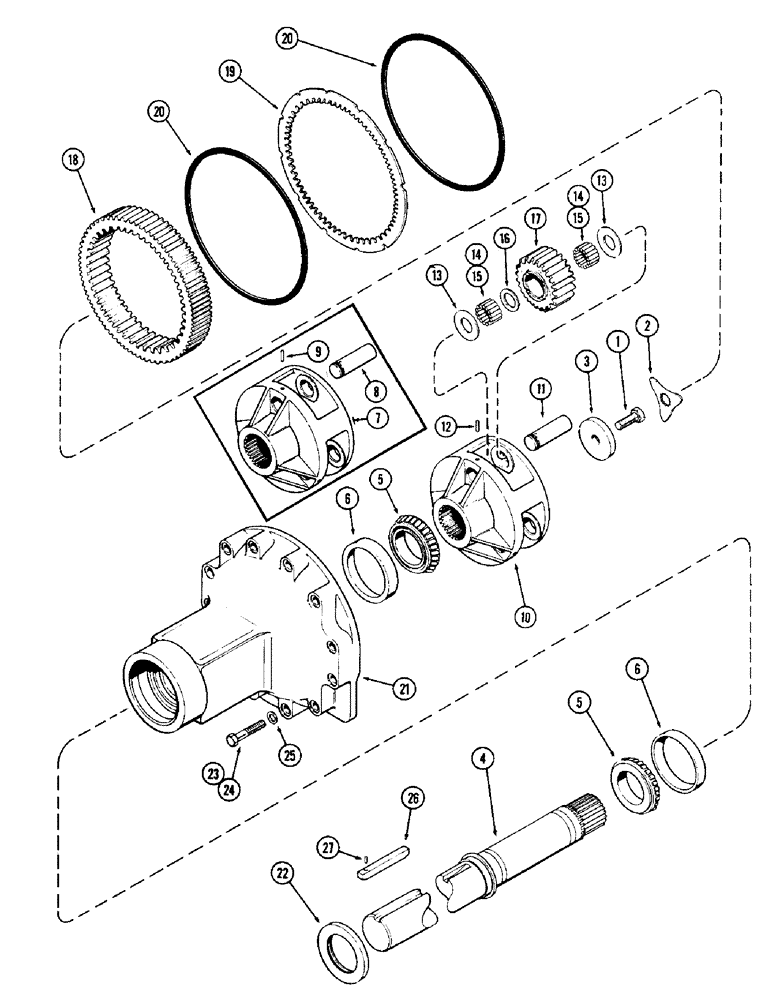

Запчасти Case IH 1370 (210) - REAR AXLE HOUSING AND PLANET GEARS, 3-1/2" DIAMETER AXLE SHAFT, USED PRIOR TO TRANS. S/N 10032467 (06) - POWER TRAIN

1

26-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 8

Retaining plate to shaft

2шт.

2

A63221

PLATE

Bearing lock

2шт.

3

A63220

PLATE

Retaining, rear axle

2шт.

4

A63211

SHAFT

Rear axle (3-1/2" dia. x 33-13/16" long)

2шт.

5

A59049

ROLLER BEARING

CONE, axle shaft (3-1/2" I.D. x 1-11/32" wide)

4шт.

6

A59048

BEARING CUP

CUP, axle shaft (5-3/4" O.D. x 1-1/16" wide)

4шт.

7

A63223

CARRIER

Planet gear (w/1/4" pin hole) to trans. (Order A66506 and 3-A44773), Serial Range: -2418464

2шт.

8

A66059

PIN

Planet gear (w/1/4" hole) to trans. (Order A44773 kit), Serial Range: -2418464

6шт.

9

138-2005

PIN,1/4" x 1", Coiled

To trans., Serial Range: -2418464

6шт.

10

A66506

CARRIER

Planet gear (w/3/8" pin hole) (1st used trans. S/N 2418464)

2шт.

A44773

KIT

Pin replacement (1st used trans. S/N 2418464), Incl. Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

PIN - planet gear (2/3/8" hole) (1-9/32" dia. x 4-9/16" long)

1шт.

12

138-2066

PIN,3/8" x 1 1/2", Coiled

1шт.

13

A63228

WASHER

Planet pin roller (1-5/8 x 3 x 1/32")

12шт.

14

A45106

ROLLER BEARING

KIT - planet gear roller, Incl. Ref. 15

6шт.

15

NSS

NOT SOLD SEPARAT

BEARING - roller, planet gear

38шт.

16

A63227

SPACER

SPACER - roller bearing separator (1-21/32 x 2-7/32 x 1/32")

6шт.

17

A65322

GEAR

Planet, rear axle (2-7/22" I.D. x 2-5/8" wide)

6шт.

18

A63229

GEAR

Planetary ring (Order A151934)

2шт.

19

A63222

PLATE

Torque reaction, axle hsg. to trans. case

2шт.

20

A63230

SEAL,393.7mm ID x 403.86mm OD x 6.73mm Thk

Rear axle housing

4шт.

21

REF

INSTRUCTION

HOUSING - rear axle (See Figure 188)

2шт.

22

A59046

OIL SEAL

Oil, rear axle shaft (3-7/8" I.D. x 9/16" wide)

2шт.

23

26-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

18шт.

24

26-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 8

6шт.

25

A64303

WASHER

Hardened steel

24шт.

26

A34890

BUCKET TOOTH KEY

Wheel to axle shaft (5/8" sq. x 6" long)

2шт.

27

138-127

LOCK PIN,1/4" x 1/2", Slotted

2шт.
