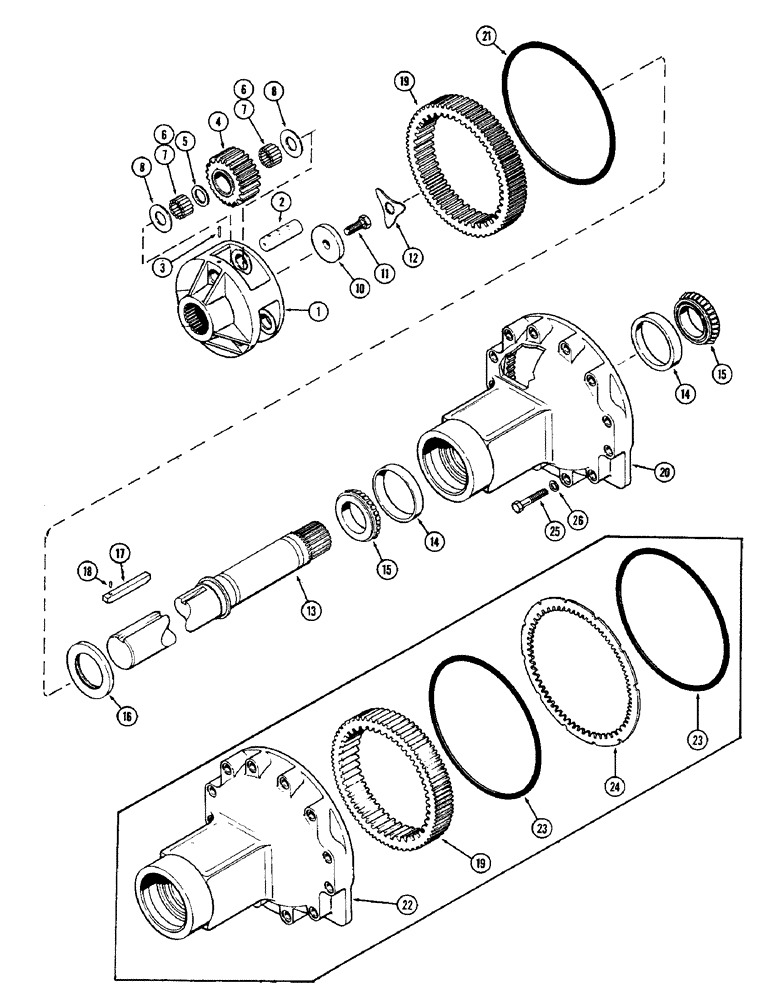

Запчасти Case IH 1370 (208) - REAR AXLE HOUSING AND PLANET GEARS, 3-1/2 INCH DIAMETER AXLE SHAFT, FIRST USED TRANS. S/N 10032467 (06) - POWER TRAIN

1

A148018

CARRIER

- planet gear

2шт.

2

A151874

PIN

- planet gear (1-21/32" dia. x 5-13/32" long) (Replaces A67153)

6шт.

3

138-2006

PIN,3/8" x 1", Coiled

6шт.

4

A153937

GEAR

- planet (2-5/16" I.D. x 3-1/8" wide w/identification groove) (Replaces A150011 and A153220)

6шт.

5

A67117

SPACER

- bearing (1-23/32 x 2-9/32 x 5/64")

6шт.

6

A45106

ROLLER BEARING

KIT - roller, gear bearing, Includes: Ref. 7

6шт.

7

NSS

NOT SOLD SEPARAT

BEARING - roller

38шт.

8

A67116

WASHER

- roller (1-1/16 x 3 x 1/32")

12шт.

10

A63220

PLATE

- retaining, axle shaft

2шт.

11

26-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 8

- 7/8 x 2-1/4" N.C. hex. (Gr. 8)

2шт.

12

A63221

PLATE

- lock

2шт.

13

A145031

SHAFT

- axle (3-1/2" dia. x 33-13/16" long) (Replaces A63211 and A151845)

2шт.

14

A59048

BEARING CUP

CUP - bearing, axle shaft (5-3/4" O.D. x 1-1/16" wide)

4шт.

15

A59049

ROLLER BEARING

CONE - bearing, axle shaft (3-1/2" I.D. x 1-11/32" wide)

4шт.

16

A59046

OIL SEAL

- oil, axle shaft (3-7/8" I.D. x 9/16" wide)

2шт.

17

A34890

BUCKET TOOTH KEY

KEY - wheel hub (5/8" sq. x 6" long)

2шт.

18

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

19

A151934

GEAR

- ring, planetary (Replaces A63229)

2шт.

20

A140308

HOUSING

- rear axle (1st used trans. ser. no. 10057341)

2шт.

21

A63230

SEAL,393.7mm ID x 403.86mm OD x 6.73mm Thk

- housing

2шт.

22

A63210

HOUSING

- rear axle to trans., Serial Range: -10057341

2шт.

23

A63230

SEAL,393.7mm ID x 403.86mm OD x 6.73mm Thk

- housing

4шт.

24

A63222

PLATE

- torque reaction to trans., Serial Range: -10057341

2шт.

25

26-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- 5/8 x 4-1/2" N.C. hex. (Gr. 8)

18шт.

25

26-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 8

- 5/8 x 4-3/4" N.C. hex. (Gr. 8)

6шт.

26

A64303

WASHER

- hardened

24шт.
