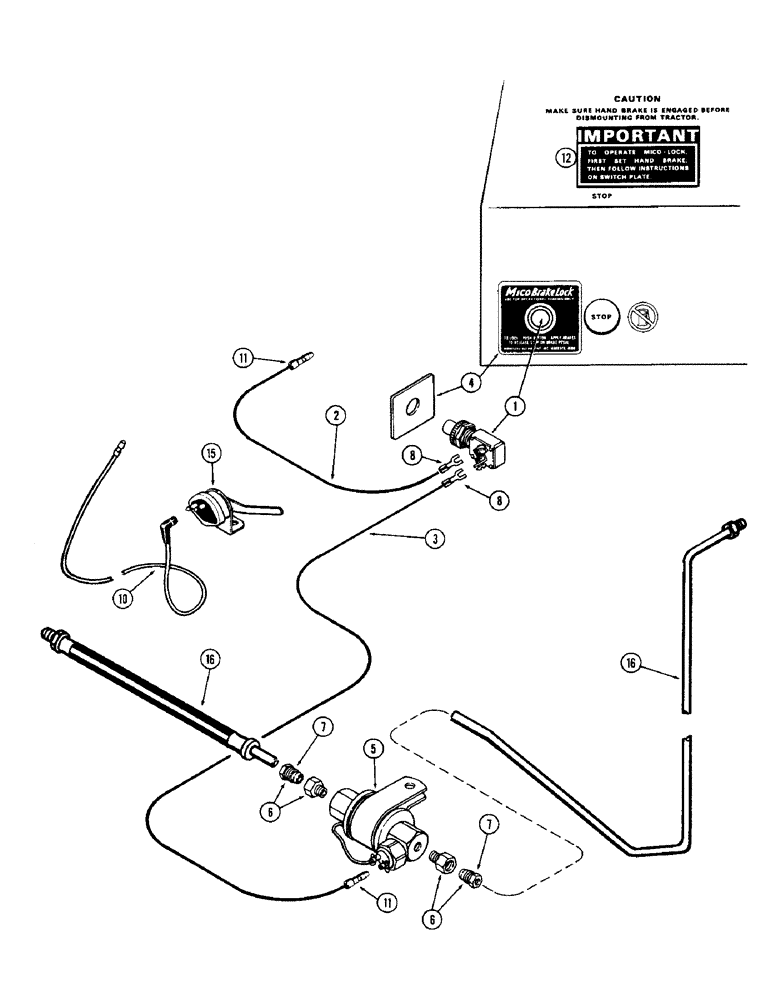

Запчасти Case IH 1370 (206) - HYDRAULIC BRAKE LOCK KIT (06) - POWER TRAIN

A66623

KIT

Hydraulic brake lock, Incl. Ref. 1 - 12

1шт.

A66624

LOCK

PACKAGE, Incl. Ref. 1 - 7

1шт.

1

A44998

SWITCH

Push button, brake lock

1шт.

2

NSS

NOT SOLD SEPARAT

WIRE - switch to brake warning lamp (Green 22")

1шт.

3

NSS

NOT SOLD SEPARAT

WIRE - switch to lock valve (Green 120")

1шт.

4

A44999

PLATE - information, switch

1шт.

5

A44683

VALVE

Hyd. brake lock

1шт.

6

222-402

HYD CONNECTOR,1/8" NPT x 7/16"-24

FITTING - valve to tube, 1/4" tube x 1/8" P.T., Incl. Ref. 7

2шт.

7

222-502

TUBE NUT,7/16"-24

1/4" tube

1шт.

8

223-73

SPADE TERMINAL,14 - 16

Spade, green wire

1шт.

10

A66713

ELECTRICAL WIRE

WIRE Parking brake switch to inst. panel (87")

1шт.

11

L10051

TERMINAL CONNECTOR,Male

Bullet, green wire

2шт.

12

321-2655

DECAL

Important instruction

1шт.

15

A33977

SWITCH

Parking brake warning lamp (See Figure 082)

1шт.

16

REF

INSTRUCTION

TUBE - brake, RH (See Ref. 10 Figure 246)

1шт.
