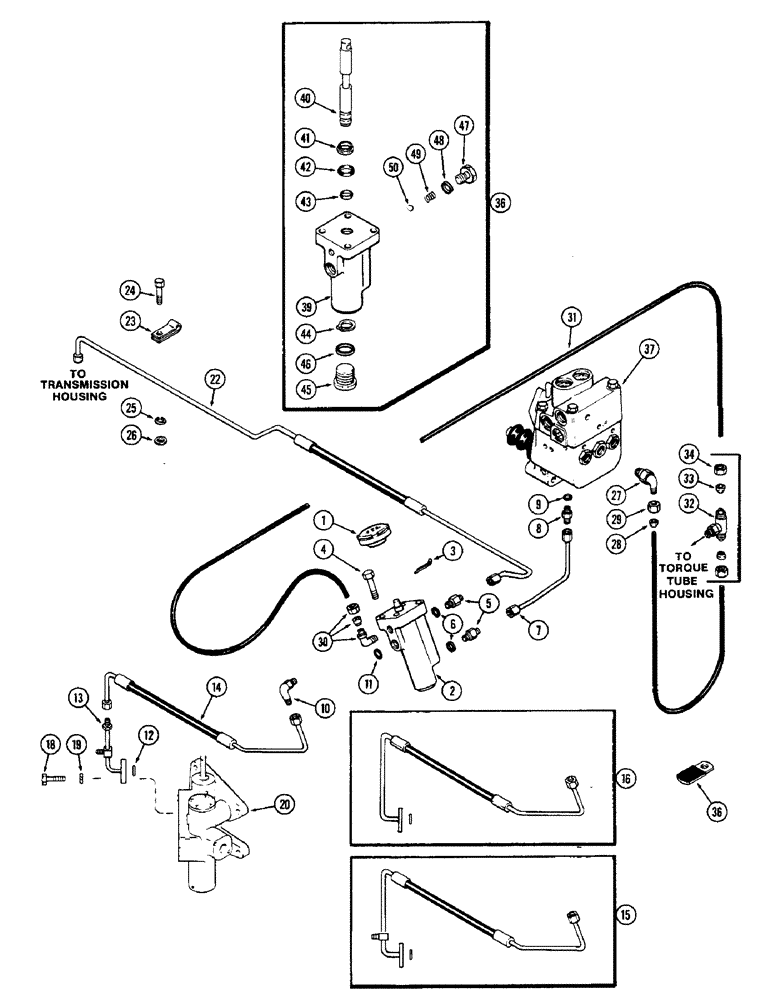

Запчасти Case IH 1370 (202) - DIFFERENTIAL LOCK MECHANISM (06) - POWER TRAIN

1

A141692

PEDAL

Lock valve (w/symbol) (Replaces A63661)

1шт.

2

A147807

VALVE

ASSY - differential lock (Replaces A63657) (See Ref. 38)

1шт.

3

132-52

COTTER PIN,1/8" x 1 1/2"

Pedal to shaft

1шт.

4

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

5

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ASSY - straight (1/4" tube O.D.), Incl. Ref. 6

2шт.

6

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

A63664

PIPE

TUBE - brake valve to lock valve

1шт.

8

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ASSY - straight (1/4" tube O.D.), Incl. Ref. 9

1шт.

9

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ASSY, adjustable (In differential lock valve), Incl. Ref. 11

1шт.

11

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

12

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

13

A147753

PIPE

TUBE ASSY - reg. valve to lock valve

1шт.

14

A147754

HOSE

Reg. valve to lock valve (With A147753 replaces A147191)

1шт.

15

A147191

TUBE

HOSE - reg. valve to lock valve (1st used trans. S/N 10056403) (Replaces A135710) (See Ref. 14)

1шт.

16

A143793

HOSE

Reg. valve to lock valve to trans., Serial Range: -10056403

1шт.

18

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

2шт.

19

92-4

LOCK WASHER,1/4"

2шт.

20

REF

INSTRUCTION

VALVE ASSY - PTO clutch and regulator (See Figure 244)

1шт.

22

A147192

HOSE

Differential lock valve to transmission (Replaces A63668)

1шт.

23

A63669

CLIP

, Serial Range: Hose-transmission

1шт.

24

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

PTO actuating tube clamp

1шт.

25

92-4

LOCK WASHER,1/4"

1шт.

26

95-4

WASHER,1/4"

WASHER - 5/16 x 3/4 x 1/16"

1шт.

27

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

ASSY - 90 deg. male (In brake valve), Incl. Ref. 28 and 29

1шт.

28

222-5186

SLEEVE,3/8" Tube

Brass

1шт.

29

222-5181

NUT,9/16"-24

(For 3/8" tube)

1шт.

30

222-5112

FITTING,9/16"-24 x 1/4" NPTF

ELBOW - lock valve, 3/8" tube x 1/8" P.T. 90 degree

1шт.

31

A63997

TUBE

(3/8" dia. nylon) (Diff. lock, Serial Range: valve-sump)

1шт.

32

222-5190

TEE,7/16"-24 x 3/8" NPT Run

ASSY - (In torque tube) 1/8" P.T. x 3/8" tube, Incl. Ref. 33 and 34

1шт.

33

222-5186

SLEEVE,3/8" Tube

2шт.

34

222-5181

NUT,9/16"-24

(For 3/8" tube)

2шт.

35

A64389

TUBE

Brake, Serial Range: valve-sump

1шт.

36

A37179

CLIP

CLAMP - tube (On 2 bolt flange on LH side of torque tube)

1шт.

37

REF

INSTRUCTION

VALVE ASSY - power brake (See Figure 228)

1шт.

38

A147807

VALVE

ASSY - differential lock (Replaces A63657), Incl. Ref. 39 - 50

1шт.

39

NSS

NOT SOLD SEPARAT

BODY - valve, lock, A147807

1шт.

40

A147806

SPOOL

Valve (Replaces A63659), lock A147807

1шт.

41

A63660

RING

Wiper, A147807 lock valve

1шт.

Part of Seal Kit P/N A43711.

1шт.

42

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

(13/16 x 5/8 x 3/32"), A147807 lock valve

1шт.

Part of Seal Kit P/N A43711.

1шт.

43

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

A147807 lock valve

1шт.

Part of Seal Kit P/N A43711.

1шт.

44

G33052

SNAP RING,#62, Ext

A147807 lock valve

1шт.

45

9841223

PLUG,1-1/16" - 12 ORB

Assy, 34" tube O.D., A147807 lock valve, Incl. Ref. 46

1шт.

46

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

A147807 lock valve

1шт.

Part of Seal Kit P/N A43711.

1шт.

47

9672438

PLUG,7/16" - 20 ORB

Assy (1/4" tube O.D.), A147807 lock valve, Incl. Ref. 48

1шт.

48

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

A147807 lock valve

1шт.

Part of Seal Kit P/N A43711.

1шт.

49

B51407

SPRING

Compression, A147807 lock valve

1шт.

50

211-11

BALL,3/8" Dia

A147807 lock valve

1шт.

A43711

KIT

Seal, A147807 lock valve, Incl. Ref. 41, 42, 43, 46 and 48

1шт.
