Запчасти Case IH 1370 (198) - DIFFERENTIAL PARK LOCK, FIRST USED TRANSMISSION SERIAL NUMBER 10028201 (06) - POWER TRAIN

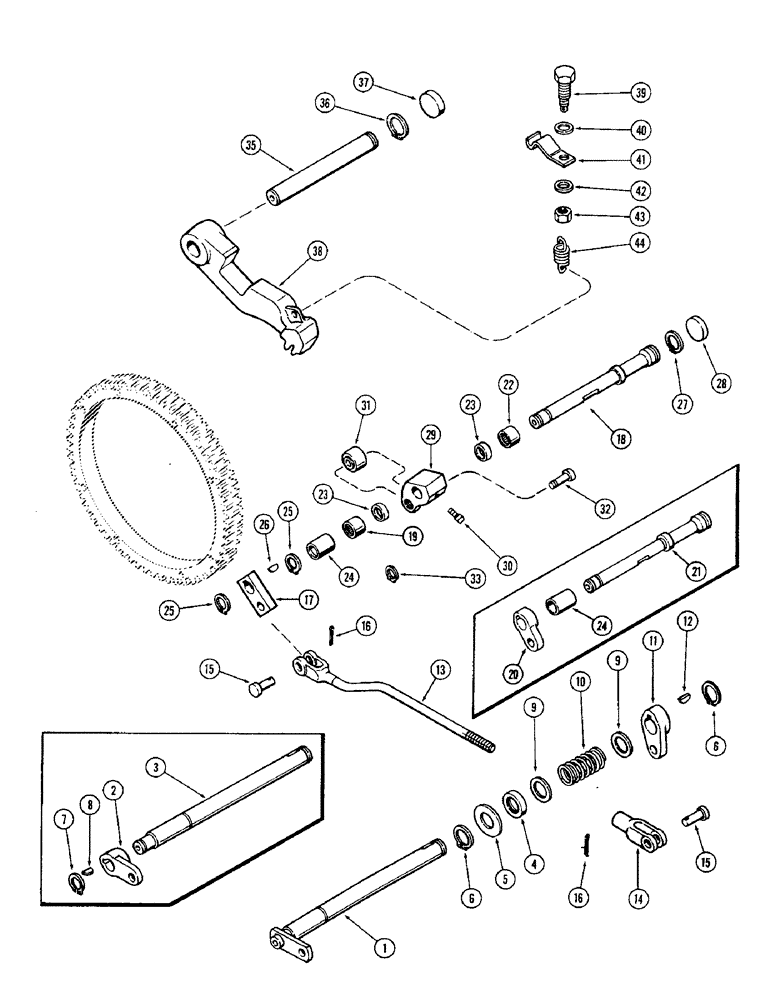

Схема запчастей Case IH 1370 - (198) - DIFFERENTIAL PARK LOCK, FIRST USED TRANSMISSION SERIAL NUMBER 10028201 (06) - POWER TRAIN
26
15
1
30
16
40
35
9
11
8
7
14
41
31
12
28
2
42
43
17
6
16
24
21
22
23
19
6
32
20
44
13
9
33
38
23
36
25
10
15
5
3
18
4
29
37
24
25
39
27

Артикул

Название

Примечание

Количество

1

A148347

LEVER

AND SHAFT ASSEMBLY - park lock control (1st used trans. ser. no. 10028390)

1шт.

2

A144530

LEVER

- park lock control to trans. (Order A148347), Serial Range: -10028390

1шт.

3

A144202

SHAFT

- park lock, front to trans. (Order A148347), Serial Range: -10028390

1шт.

4

A55855

OIL SEAL

- oil, shaft

1шт.

5

195-53

WASHER,1" x 2" x .134"

- 1-1/16 x 2 x 9/64"

1шт.

6

B18208

SNAP RING,#100, Ext

(59/64" I.D.)

2шт.

7

T25683

SNAP RING,#75, Ext

Ring, Snap, , 11/16" I.D. #75, Ext

1шт.

8

126-6

WOODRUFF KEY,# 213, 1/8" x 3/8"

Used w/A144530 and A144202 # 213, 1/8" x 3/8"

1шт.

9

L31557

WASHER

- spring retaining

2шт.

10

A144207

SPRING

- compression (2-1/4" free length)

1шт.

11

A144198

LEVER

- park lock front

1шт.

12

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

13

A144205

ROD

- park lock

1шт.

14

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - rod, 1/2"

1шт.

15

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2"

2шт.

16

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

17

A153618

LEVER

- park lock, center (With A153619 and A153620 replaces A144197)

1шт.

18

A153619

SHAFT

- park lock, center (Used with A153618 lever) (First used trans. ser. no. 10199851)

1шт.

19

A153620

SPACER

- bearing locating (49/64 x 63/64 x 1-27/64" wide) (Used with A153618 lever)

1шт.

20

A144197

LEVER

- park lock, center (Order A153618, A153619 and A153620)

1шт.

21

A148294

SHAFT

- park lock, center (Replaces A144531) to trans., Serial Range: -10199851

1шт.

22

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle, center shaft

2шт.

23

A144847

SPACER

- bearing locating (49/64 x 63/64 x 23/64" wide)

2шт.

24

A144848

SPACER

- bearing locating (49/64 x 63/64 x 1-1/4" wide)

1шт.

25

T25683

SNAP RING,#75, Ext

Ring, Snap, , 11/16" I.D. #75, Ext

2шт.

26

126-6

WOODRUFF KEY,# 213, 1/8" x 3/8"

1шт.

27

B18208

SNAP RING,#100, Ext

(59/64" I.D.)

1шт.

28

41-1024

PLUG,Cup, 1 1/2"

- cup, 1-1/2"

1шт.

29

A148274

LEVER

- park lock center cam carrier (Replaces A144532)

1шт.

30

181-274

SET SCREW,Sq Hd, 1/2"-13 x 7/8"

SCREW - 1/2 x 7/8" N.C. sq. hd.

1шт.

31

A144846

CAM

- following

1шт.

32

A153208

PIN

- clevis, cam follower (Replaces A144534)

1шт.

33

G46146

SNAP RING,#37, Ext

RING - snap (21/64" I.D.)

1шт.

35

A63241

SHAFT

- park lock, rear

1шт.

36

B18208

SNAP RING,#100, Ext

(59/64" I.D.)

1шт.

37

41-1022

PLUG,Cup, 1 3/8"

- cup, 1-3/8"

1шт.

38

A148273

LEVER

- park lock engaging (Replaces A144529)

1шт.

39

A144206

RETAINER

- spring detent

1шт.

40

A58608

GASKET

- retainer

1шт.

41

A144413

SPRING

- park lock detent

1шт.

42

195-33

WASHER,1/2"

- 17/32 x 1-1/16 x 3/32"

1шт.

43

25-148

JAM NUT,Jam, 1/2"-13, G5

- 1/2" NC hex, jam

1шт.

44

A144541

SPRING

- extension, engaging lever

1шт.

Выбрано товаров: 43
