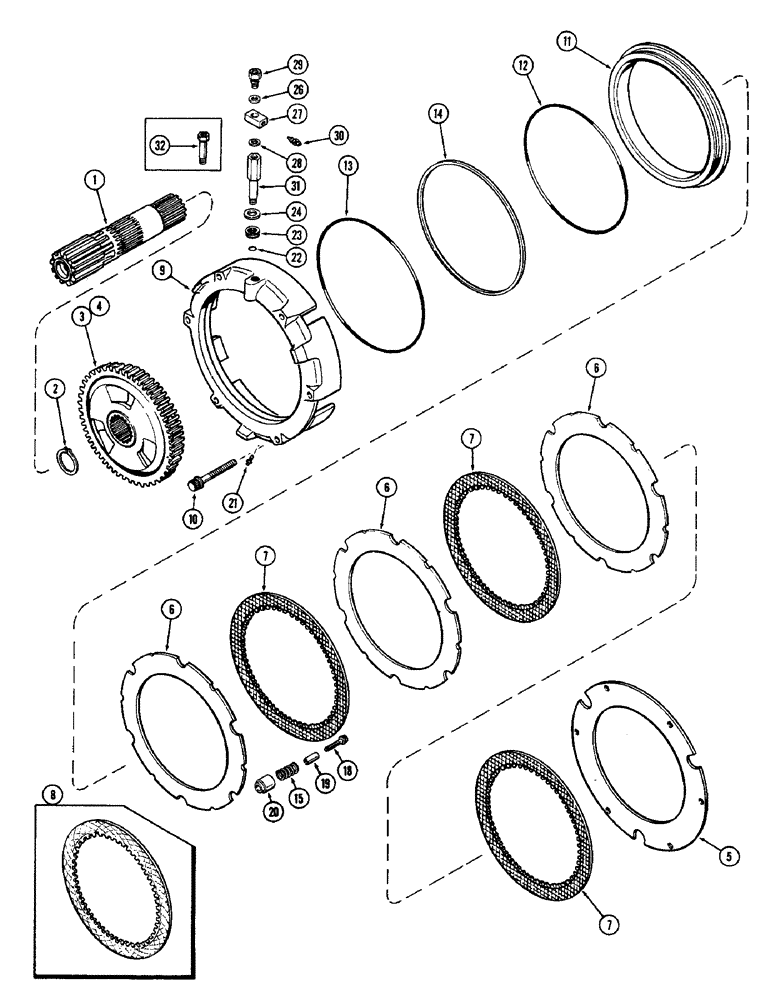

Запчасти Case IH 1370 (196) - DIFFERENTIAL SHAFT AND BRAKE MECHANISM (06) - POWER TRAIN

1

A148020

SHAFT

- differential with sun gear (1st used trans. ser. no. 10032679)

1шт.

1

A66879

SHAFT

- differential with sun gear to trans., Serial Range: -10032679

1шт.

2

F35283

SNAP RING,#231, Ext

Ring, Snap, , brake hub #231, Ext

2шт.

3

A63196

HUB

- brake (R.H.) casting number is 968712

1шт.

4

A63197

HUB

- brake (L.H.) casting number is 968713

1шт.

5

A63198

DISC

- brake, inner

2шт.

6

A63199

DISC

- brake, steel

6шт.

7

A67129

DISC

- brake, bonded (Replaces A63200)

6шт.

8

A63200

DISC

- brake, bonded (Order A67129)

6шт.

9

A148019

CYLINDER

- brake support (1st used trans. ser. no. 10032679)

2шт.

9

A65735

COVER

CYLINDER - brake support to trans., Serial Range: -10032679

2шт.

10

166-96

12 PT SCREW,Flg, 1/2" - 13 x 4", Gr 8

SCREW - (1/2 x 4" N.C. Ferry cap) Cylinder to trans. case

12шт.

11

A65540

PISTON

- brake

2шт.

A44338

KIT

- differential brake piston seal, Includes: Ref. 12 - 14

2шт.

12

NSS

NOT SOLD SEPARAT

O-RING - brake piston (12 x 12-15/32 x 7/32")

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - brake piston (11-15/32 x 11-29/32 x 7/32")

1шт.

14

NSS

NOT SOLD SEPARAT

RING - back-up (Groove towards outside)

1шт.

15

A63203

SPRING

- brake return

6шт.

18

166-1004

12 PT SCREW,Lock, Flg, 1/4" - 20 x 1 3/4", Gr 8

SCREW - (1/4 x 1-3/4" Ferry cap w/Jay-Loc)

6шт.

19

138-187

LOCK PIN,7/16" x 1 1/4", Slotted

Pin, 7/16" x 1 1/4", Slotted

6шт.

20

A63202

PIN

- brake disc

6шт.

21

A41491

BLEEDER,1/4" - 28 x 23.37mm

- brake bleed (In cylinder)

2шт.

22

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- hydraulic brake connector (1/4 x 23/64 x 5/64")

2шт.

23

A64071

GROMMET

- brake fitting

2шт.

24

195-2073

WASHER,0.69" ID x 1.25" OD x 0.07" Thk

- 11/16 x 1-1/4 x 1/16"

4шт.

26

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET

2шт.

27

A64072

FITTING

BANJO - brake bleeder

2шт.

28

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

2шт.

29

A64073

HOLLOW SCREW

- connector

2шт.

30

A41491

BLEEDER,1/4" - 28 x 23.37mm

- brake bleeder (In Banjo)

2шт.

31

A66395

FITTING

- hydraulic brake (In cylinder) (Replaces A64070)

2шт.

32

A64070

FITTING

- hydraulic brake (In cylinder) (Order A66395)

2шт.
