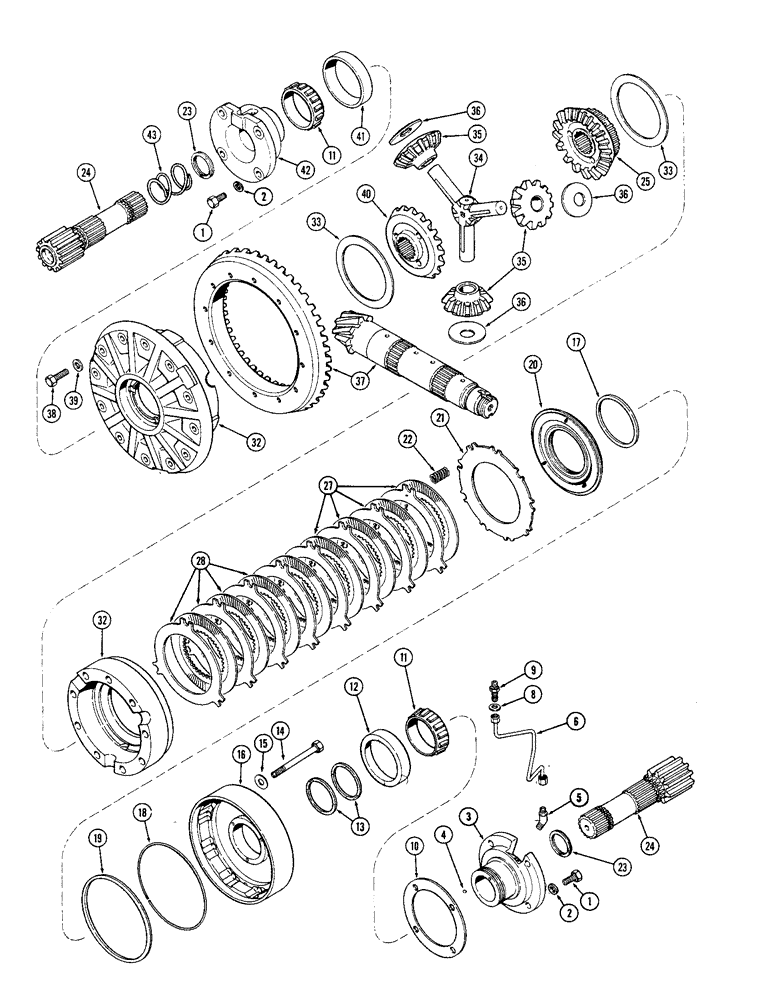

Запчасти Case IH 1370 (194) - DIFFERENTIAL, USED PRIOR TO TRANSMISSION SERIAL NUMBER 10028201 (06) - POWER TRAIN

1

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

2

A148376

WASHER

33/64 x 7/8 x 1/16"

8шт.

3

A66499

CARRIER

ASSY - differential bearing (LH) (Order A148761), Incl. Ref. 4

1шт.

4

211-5

BALL,3/16" Dia

(LH brg. carrier)

1шт.

5

222-4091

FITTING

ELBOW (45 degree, 1/4 x 1/8" P.T.) Oil supply tube

1шт.

6

A64877

TUBE

ASSY - oil, differential lock clutch

1шт.

8

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Bulkhead fitting (1/4 x 23/64 x 5/64")

1шт.

9

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

1шт.

10

A63186

SHIM,.015" Thk

Differential brg. carrier

1шт.

10

A63187

SHIM,.007" Thk

Differential brg. carrier

1шт.

10

A63188

SHIM,.005" Thk

Differential brg. carrier

1шт.

11

A63185

ROLLER BEARING,85 mm ID x 130 mm OD x 24, 30.20 mm

CONE - differential bearing carrier

2шт.

12

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

Differential lock cage

1шт.

13

A63192

RING

Seal, LH bearing carrier

2шт.

14

26-10100

BOLT,Hex, 5/8" - 11 x 6-1/4", Gr 8

(Differential lock cage to intermediate and ring gear cage)

9шт.

15

A64303

WASHER

(41/64 x 1-1/16 x 1/16")

9шт.

16

A144407

HOUSING

CAGE - differential lock (Replaces A63170)

1шт.

17

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

Internal, differential lock piston lip

1шт.

18

A62642

ELECTRICAL WIRE

WIRE Seal, differential lock piston lip

1шт.

19

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

External, differential lock piston lip

1шт.

20

A66359

PISTON

Differential lock (Replaces A63094) (Order A146670, A146682, A146683, A150753 and A150754)

1шт.

21

A63173

PLATE

Differential lock piston return spring

1шт.

22

A63172

SPRING

Return, differential lock piston

3шт.

23

A63195

SNAP RING,#215, 2.060", Ext Spiral

Retaining, differential shaft

2шт.

24

REF

INSTRUCTION

SHAFT - differential with sun gear (See Figure 196)

2шт.

25

A65969

GEAR

Differential bevel side (LH)

1шт.

27

A63174

PLATE

Differential lock clutch (Sintered)

8шт.

28

A63175

PLATE

Differential lock clutch (Steel)

8шт.

32

A63182

HOUSING

CAGE ASSY - differential (Matched set)

1шт.

33

A66730

WASHER

Thrust, differential side gear (Replaces A64235) (Order A152408) (5.430 I.D.) (6.625 O.D.)

2шт.

34

A63179

PIN

Differential pinion

1шт.

35

A66731

GEAR

Differential pinion bevel (Replaces A65967)

3шт.

36

A64242

WASHER,32.05mm ID x 82.55mm OD x 0.81mm Thk

Thrust, differential pinion gear

3шт.

37

A67082

GEAR

SET - pinion and spiral gear (Matched set) (1st used trans. S/N 2476547)

1шт.

37

A66888

GEAR-SET

Pinion and spiral bevel (Matched set) to trans., Serial Range: -2476547

1шт.

38

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

(Gear to ring gear cage)

12шт.

39

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

Differential ring gear

12шт.

40

A65968

GEAR

Differential bevel side (RH)

1шт.

41

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

Differential ring gear cage (RH side)

1шт.

42

A63190

CARRIER,2.4" ID x 7.4" OD x 3.49"

Differential bearing (RH)

1шт.

43

A63201

SPRING

SLINGER - oil, differential shaft (RH side only)

1шт.
