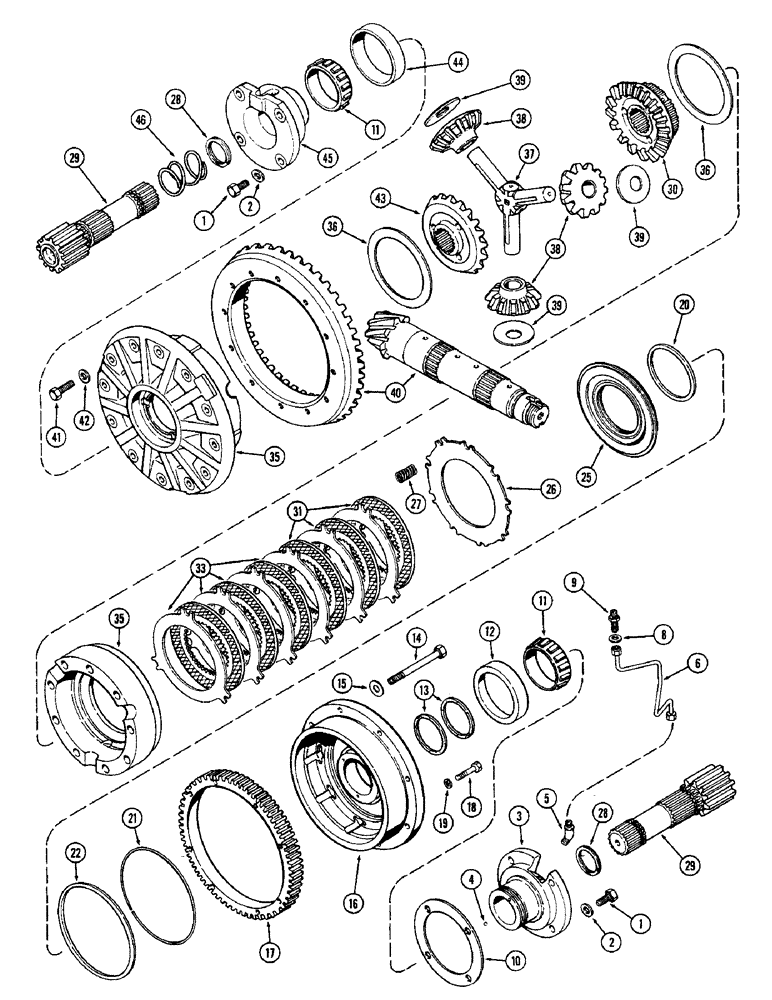

Запчасти Case IH 1370 (192) - DIFFERENTIAL, FIRST USED TRANSMISSION SERIAL NUMBER 10028201 (06) - POWER TRAIN

1

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

2

A148376

WASHER

33/64 x 7/8 x 1/16"

8шт.

3

A148761

CARRIER

ASSY - diff. brg., LH (Replaces A66499), Incl. Ref. 4

1шт.

4

211-5

BALL,3/16" Dia

1шт.

5

222-4091

FITTING

ELBOW - 1/4 x 1/8" P.T., 45 degree

1шт.

6

A64877

TUBE

Oil, differential lock clutch

1шт.

8

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

9

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

1шт.

10

A63186

SHIM,.015" Thk

Differential brg. carrier

1шт.

10

A63187

SHIM,.007" Thk

Differential brg. carrier

1шт.

10

A63188

SHIM,.005" Thk

Differential brg. carrier

1шт.

11

A63185

ROLLER BEARING,85 mm ID x 130 mm OD x 24, 30.20 mm

CONE - differential bearing carrier

2шт.

12

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

Differential lock cage

1шт.

13

A63192

RING

Seal, LH bearing carrier

2шт.

14

26-10100

BOLT,Hex, 5/8" - 11 x 6-1/4", Gr 8

9шт.

15

A64303

WASHER

41/64 x 1-1/16 x 1/16"

9шт.

16

A144907

CAGE

Differential lock

1шт.

17

A144583

GEAR

Park lock ring

1шт.

18

26-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

8шт.

19

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

27/64 x 3/4 x 1/32"

8шт.

20

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

Internal, differential lock piston lip

1шт.

21

A62642

ELECTRICAL WIRE

WIRE Seal, differential lock piston lip

1шт.

22

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

External, differential lock piston lip

1шт.

25

A66359

PISTON

Differential lock (Order A146670, A146682, A146683, A150753 and A150754)

1шт.

26

A63173

PLATE

Differential lock piston return spring

1шт.

27

A63172

SPRING

Return, differential lock piston

3шт.

28

A63195

SNAP RING,#215, 2.060", Ext Spiral

Retaining, differential shaft

2шт.

29

REF

INSTRUCTION

SHAFT - differential with sun gear (See Figure 196)

2шт.

30

A65969

GEAR

Differential bevel side, LH

1шт.

31

A136340

PLATE

Differential lock clutch (Paper)

6шт.

33

A63175

PLATE

Differential lock clutch (Steel)

6шт.

35

A136430

HOUSING

CAGE ASSEMBLY - differential (Matched set)

1шт.

36

A152408

WASHER

Thrust, differential side gear (Replaces A66730)

2шт.

37

A63179

PIN

Differential pinion

1шт.

38

A66731

GEAR

Differential pinion bevel

3шт.

39

A64242

WASHER,32.05mm ID x 82.55mm OD x 0.81mm Thk

WASHER - thrust, differential pinion gear

3шт.

40

A67082

GEAR

SET - pinion and spiral gear (Matched set)

1шт.

41

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

12шт.

42

A150672

WASHER

Differential ring gear (Replaces A39046)

12шт.

43

A65968

GEAR

Differential bevel side, RH

1шт.

44

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

Differential ring gear cage, RH

1шт.

45

A63190

CARRIER,2.4" ID x 7.4" OD x 3.49"

Differential bearing, RH

1шт.

46

A63201

SPRING

SLINGER - oil, differential shaft, RH

1шт.
