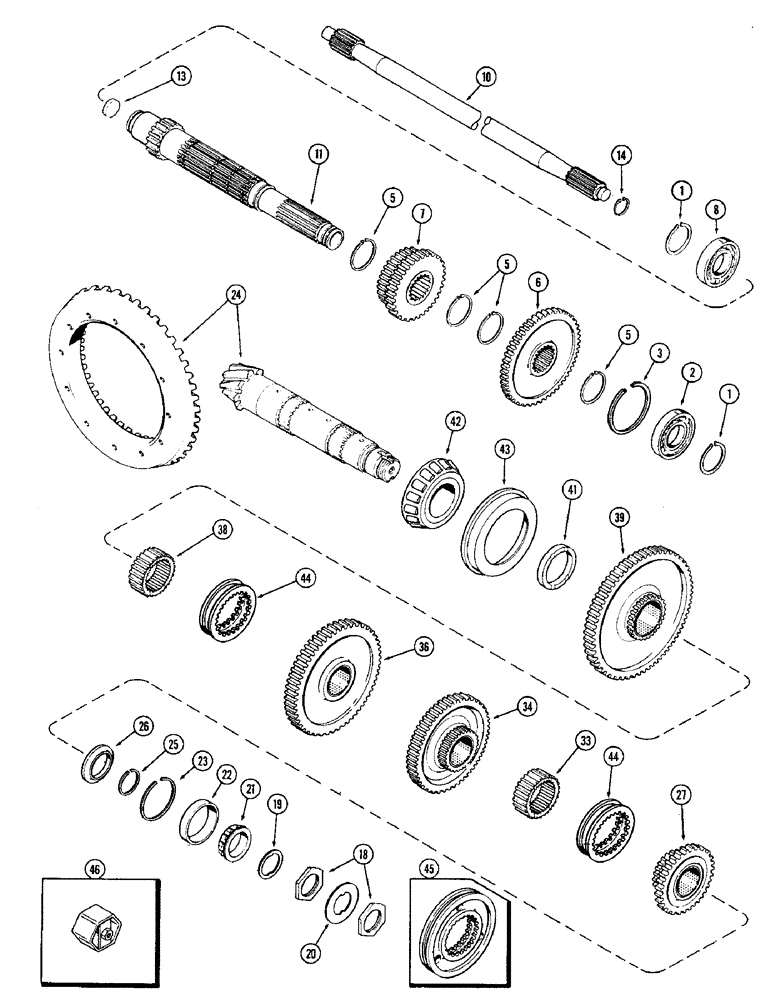

Запчасти Case IH 1370 (190) - PLANETARY OUTPUT SHAFT (06) - POWER TRAIN

1

39326

SNAP RING,#215, Ext

Bearing

2шт.

2

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

Ball, output shaft

1шт.

3

REF

INSTRUCTION

RING - retaining (See Figures 174 and 176)

1шт.

5

A63115

SNAP RING,#255, Ext

Planetary output shaft

4шт.

6

A63114

GEAR

Driver, 4th (49 teeth)

1шт.

7

A63113

GEAR

Driver, 2nd and 3rd (26 and 34 teeth)

1шт.

8

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

Rear, planetary shaft

1шт.

10

REF

INSTRUCTION

SHAFT - power input and PTO (See Figures 182 and 184)

1шт.

11

REF

INSTRUCTION

SHAFT ASSEMBLY - planetary output (See Figures 182 and 184)

1шт.

13

41-1024

PLUG,Cup, 1 1/2"

Mercury (Used w/o PTO)

1шт.

14

T28550

SNAP RING,1.50", Int, #150

Plug (used w/o PTO)

1шт.

18

A63156

LOCK NUT

Lock, spiral bevel pinion, countershaft

2шт.

19

A63157

THRUST BEARING,1.955" ID x 2.562" OD x 0.12"

Thrust, bearing, countershaft

1шт.

20

A63155

LOCK WASHER

Locking, countershaft

1шт.

21

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

Countershaft, front

1шт.

22

A61446

BEARING CUP

Countershaft, front

1шт.

23

A31253

RING, SNAP

RING SNAP Internal (Replaces A32422), countershaft

1шт.

24

A67082

GEAR

SET - pinion and spiral bevel (Matched set) (1st used trans. S/N 2476547) (Used w/A67079 washer), countershaft

1шт.

24

A66888

GEAR-SET

Pinion and spiral bevel (Matched set) (Used w/A63125 washer), countershaft

1шт.

25

A32413

SNAP RING,#212, 1.997", Ext

Collar retaining, countershaft

1шт.

26

A63154

COLLAR

Pinion locating, countershaft

1шт.

27

A64423

GEAR

SPARE PART ASSY - driven (4th) (34 teeth), countershaft

1шт.

(A64423) = BUSHING PART IS A63153

1шт.

33

A64422

SHAFT

HUB, splined pinion (3rd and 4th), counter

1шт.

34

A64420

GEAR

ASSY - drive (3rd) (50 teeth), countershaft

1шт.

(A64420) = BUSHING IS A64055.

1шт.

36

A150504

GEAR

ASSY - driven (2nd) (58 teeth) (Replaces A64418), countershaft

1шт.

(A150504) = BUSHING IS A150503

1шт.

38

A64416

HUB

Shaft, splined pinion, 1st and 2nd

1шт.

39

A64414

GEAR

ASSY - 1st (77 teeth), countershaft

1шт.

(A64414) = BUSHING IS A64043.

1шт.

41

A67079

WASHER, THRUST

Pinion (1/4" thick) (1st used trans. S/N 2476547) (Used w/A67082 gear set), countershaft

1шт.

41

A63125

WASHER

Pinion thrust (1/2" thick) to trans. (Used w/A66888 gear set), countershaft, Serial Range: -2476547

1шт.

42

A63089

ROLLER BEARING,76.2mm ID x 46.11mm W

CONE - countershaft rear

1шт.

43

A63088

ROLLER BEARING,171.47mm OD x 31.75mm W

Countershaft rear bearing

1шт.

44

A138190

COLLAR

Sliding (1st used trans. S/N 10028201), countershaft

2шт.

45

A66107

COLLAR

Sliding to trans., countershaft, Serial Range: -1002801

2шт.

46

A43109

SOCKET/RECEPTACLE

Countershaft nut (Service tool)

1шт.
