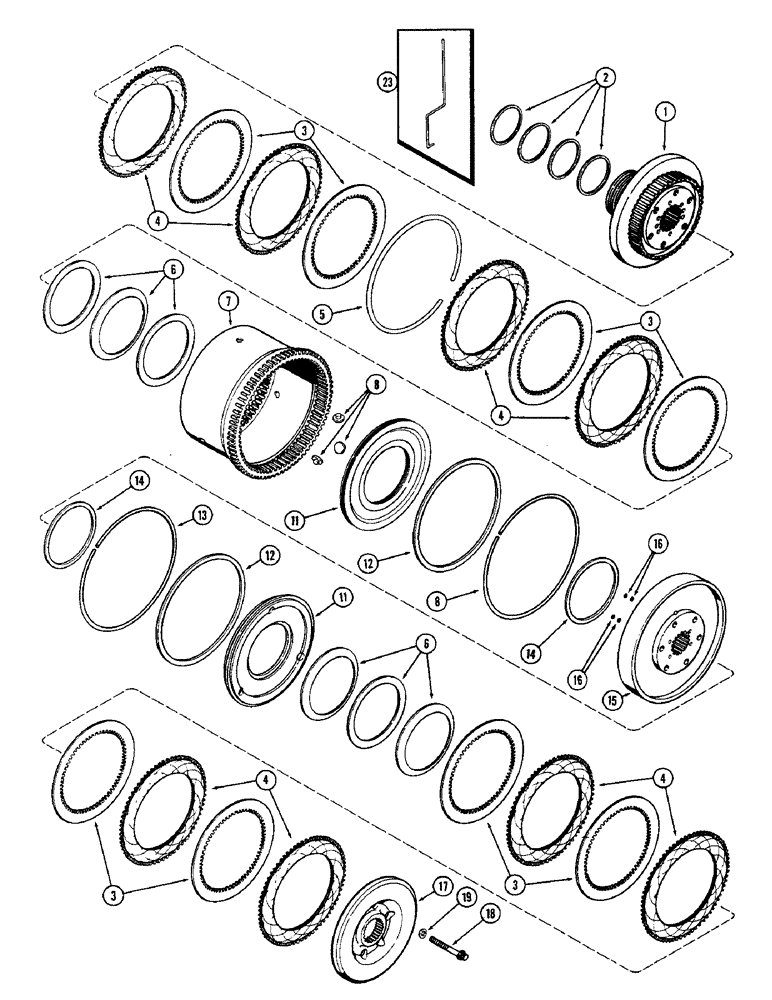

Запчасти Case IH 1370 (188) - (C2) AND (C3) CLUTCHES, USED PRIOR TO TRANSMISSION SERIAL NUMBER 10057473 (06) - POWER TRAIN

1

A63100

HUB

ASSEMBLY - (C3) Clutch (4.302" Long)

1шт.

2

A58384

RING

- oil distributor

4шт.

3

A151029

PLATE

- steel (C2) and (C3) clutches (Replaces A58089)

8шт.

4

A61981

PLATE

- friction (C2) and (C3) clutches

8шт.

5

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- snap, ring gear

1шт.

6

A58094

SPRING

- return (C2) and (C3) clutches

6шт.

7

A63101

GEAR

- ring

1шт.

8

A58413

BUTTON

BEARING - button, ring gear

3шт.

11

A66359

PISTON

- (C2) and (C3) clutches (Order A146670 piston, A146682 seal, A146683 seal, A150753 o-ring and A150754 o-ring)

2шт.

12

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- external, piston

2шт.

Part of Seal Kit P/N A42886

1шт.

13

A62642

ELECTRICAL WIRE

WIRE - external seal

2шт.

Part of Seal Kit P/N A42886

1шт.

14

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- internal, piston

2шт.

Part of Seal Kit P/N A42886

1шт.

15

A148688

CARRIER

- piston (1st used trans. ser. no. 10032007) (Splined)

1шт.

15

A64487

CARRIER

- piston to trans. (Not splined) (Order A148688), Serial Range: -10032007

1шт.

16

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - carrier oil seal (19/64 x 7/16 x 1/16")

4шт.

Part of Seal Kit P/N A42886

1шт.

17

A63098

HUB

- (C2) Clutch

1шт.

18

A63099

12 PT SCREW,Ferry, 3/8" - 16 x 3", Gr 8

SCREW - (C2) Hub to (C3) hub (3/8 x 3" N.C. Ferry hd.)

6шт.

19

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- hardened (7/16 x 3/4 x 1/32")

6шт.

23

A43110

TOOL

HOLDER - clutch plate (Service tool)

2шт.

A42886

SEAL KIT

seal, Includes: Ref. 12 - 14, 16 and parts in Figures 176 and 178

1шт.
